Casio QT-6000 Training Manual

14

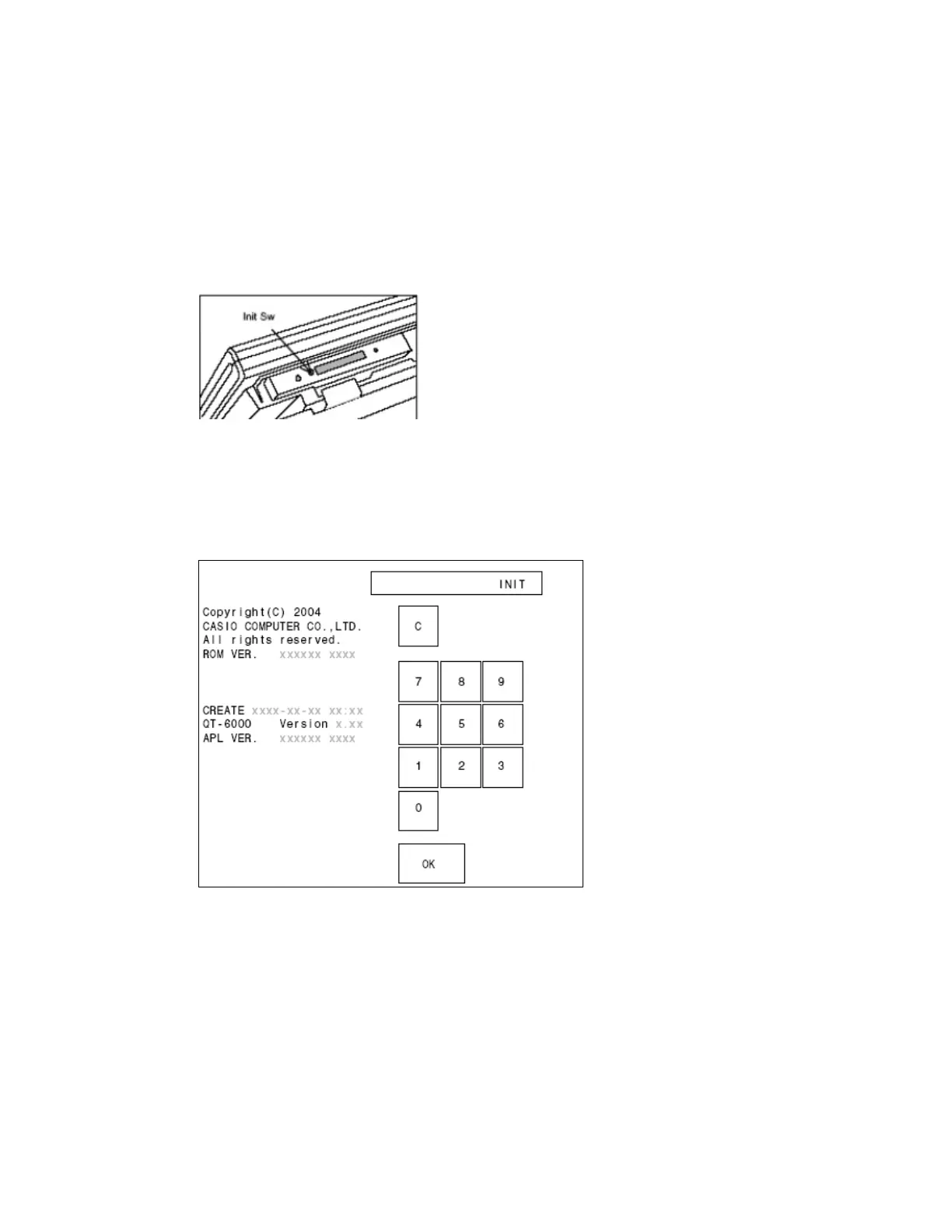

Follow the procedure below to load the IPL data to the QT-6000
(1) Insert the CF card into the top of the terminal
(2) Switch the terminal off and hold down the INIT switch the
terminal will then will ask you to push the INIT Switch again
to start the load of the IPL
(3) Press the INIT Switch and the IPL will start to load
(4) After the IPL has loaded the QT-6000 will ask for a Mac/Init
code enter 10000 for UK and then press “ok”
After you have entered 10000 the QT-6000 will come up with
the TCP/IP network screen. This screen is shown below

Casio QT-6000 Specifications

General

Types of payment	Cash
Second display	Yes
Second display type	LED
Power source	AC
AC input voltage	120-240 V
Power consumption	1100 mA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight and Dimensions

Depth	311 mm
Width	343 mm
Height	288 mm
Weight	5300 g
