– 16 –
SE-S400/SE-S800/PCR-T500/PCR-T520/SE-C450
SE-S3000/SE-S900/PCR-T2300/PCR-T2400/SE-C3500
PCB ASSY/E291-E2-1
CASE/DISPLAY
W-TAPE/110X4.5
BOARD/DISPLAY
W-TAPE/77X4.5

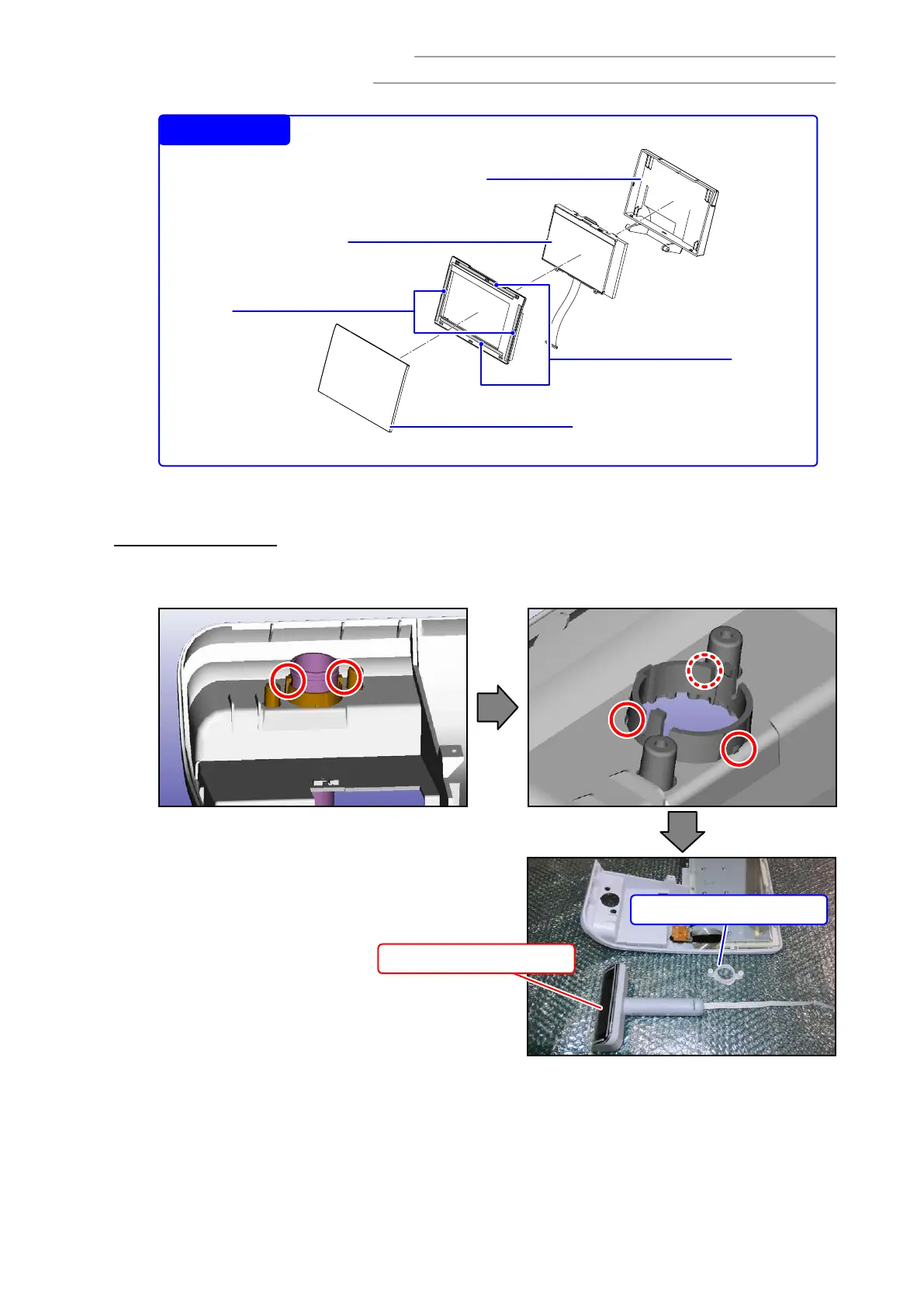

J. REAR DISPLAY
J-1. Disengage two hooks and then remove the REAR DISPLAY BLOCK.
J-2. Disengage three hooks and then remove the BUSH/RDP.
BUSH/RDP
REAR DISPLAY BLOCK
DP-ASSY
