— 1
1
—
■
Upper case block disassembly
(KEY BOARD
ASS'Y
, MODE SW ASS'Y
, POP-UP DISPLA
Y BLOCK)

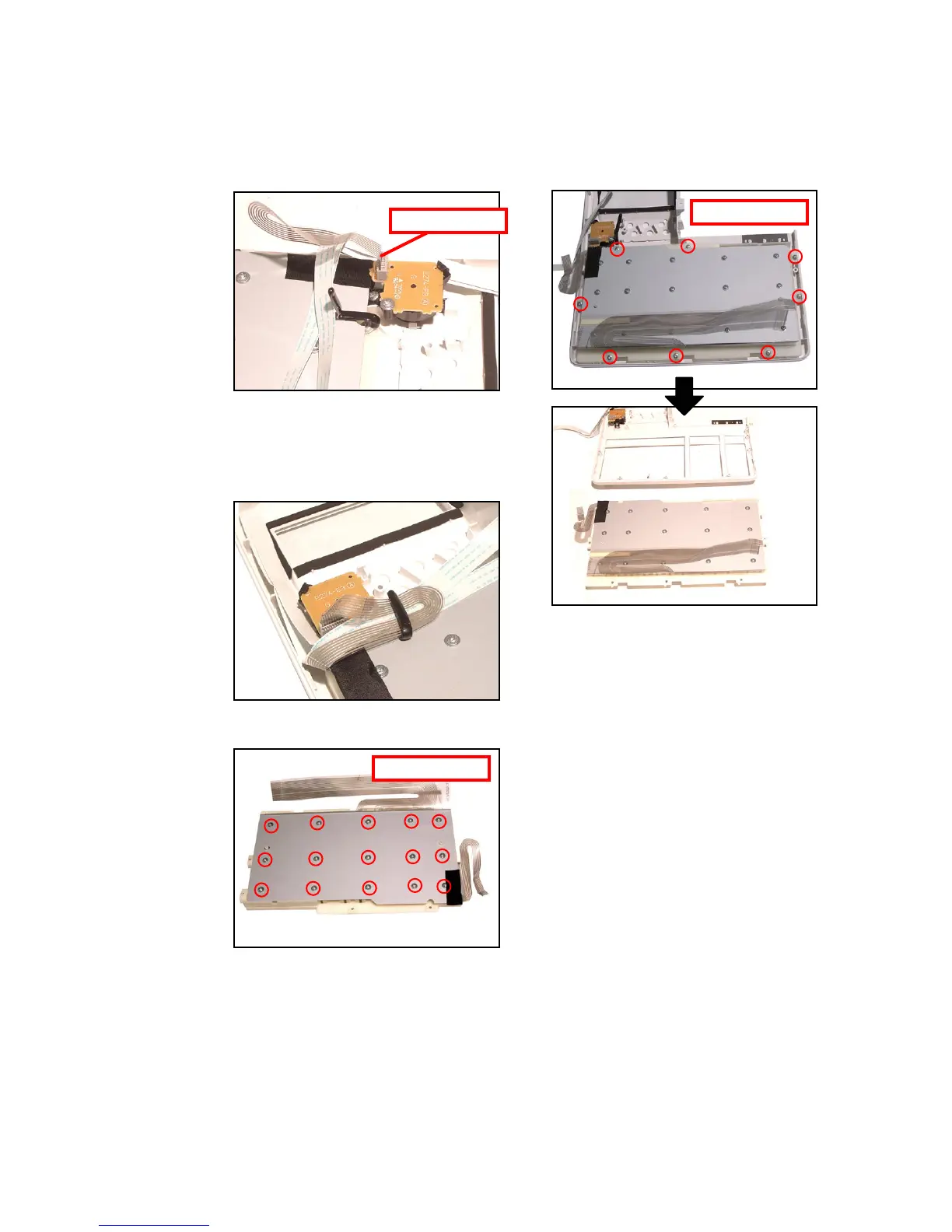

1. Remove the FPC.
2. Remove 8 screws and then the KEY BOARD ASS’Y.
3. Remove 15 screws and then disassemble the KEY BOARD ASS'Y.
Assembling Point:
Secure the FPC (Mode key, Pop-up Display).
FPC
Screws
Screws
12
14
Table of Contents
Table of Contents
2
Specifications
3
Initializing the Cash Register
6
Machine Initialization
6
Clearing a Machine Lock up
7
Disassembly
11
Block Diagram
19
Diagnostic Operation
20
When an Error Occurs
41
Error Code List
41
Pcb Layout
43
Circuit Diagrams
45
Parts List
54
