[ 17 ] Internal printer graphic print test
[Function]
This test will check the graphic patterns in the receipt/journal of the internal printer.
[Operation]
Operation : P1 P1 P1 P2 P2 P2 n 1 3 d SUBTOTAL
P1:0 = Graphic patter 1 (change 8 bit into a decimal number and input it)
P2:0 = Graphic patter 2 (change 8 bit into a decimal number and input it)
n: 0 = One time check (Can be omitted)
not 0 = Continuous check (To stop the test, press “Esc” key)
d: 3 = prints only receipt
4 = prints only journal
5 = prints both receipt/journal (prints alternately)

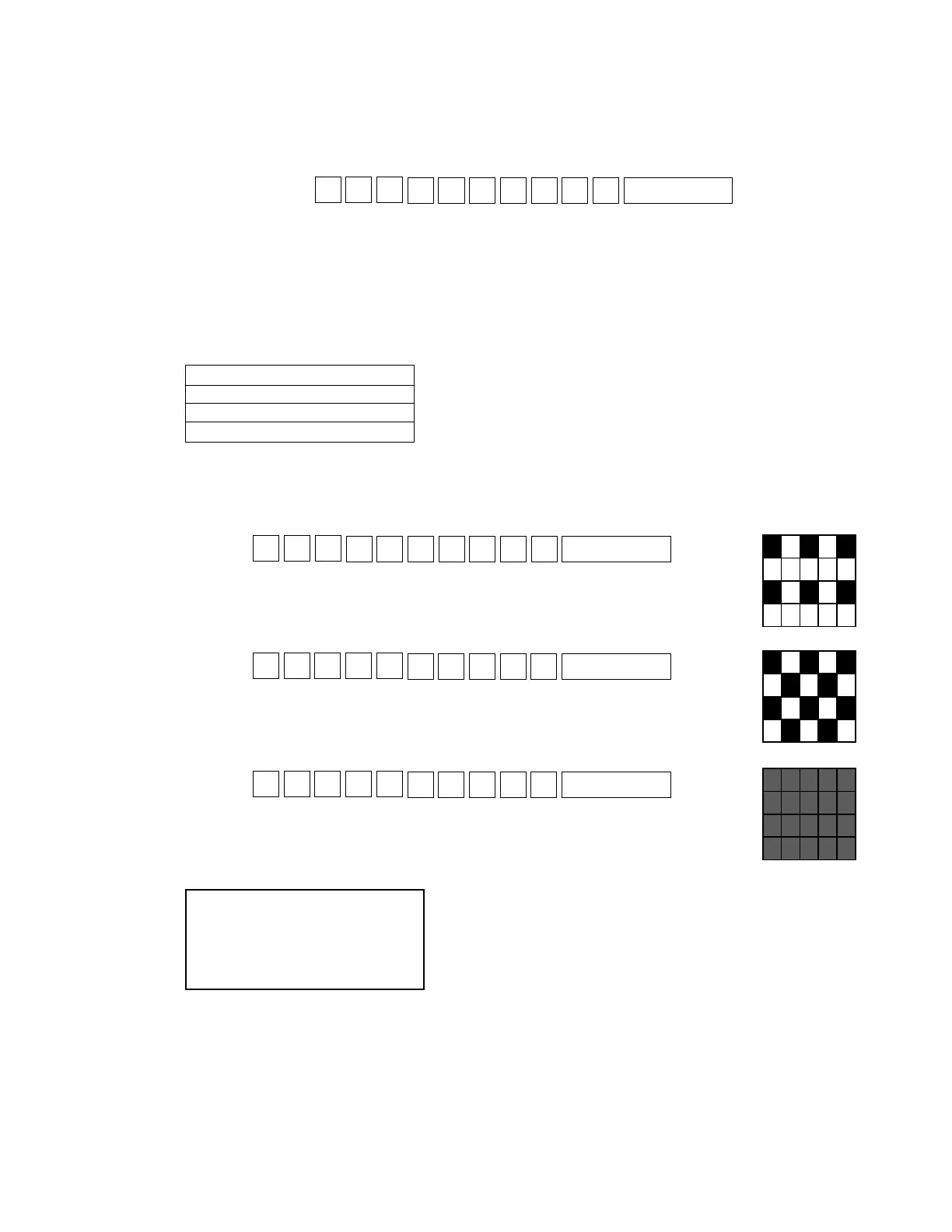

The graphic patterns and the print images are as follows;
Graphic pattern 1
Graphic pattern 2
Graphic pattern 1
Graphic pattern 2
:
: repeat (for 28 Dot line )
* Print patterns and commands
1 Receipt, 25% pattern, continuous
0850001133 SUBTOTAL
The display unit of the print pattern image in the right is as follows;
Horizontal: dot
Vertical: do line
2 Receipt, 50% pattern, continuous
0851701 1 3 3 SUBTOTAL
The display unit of the print pattern image in the right is as follows;
Horizontal: dot
Vertical: do line
3 Receipt, 100% pattern, continuous
2552551 1 3 3 SUBTOTAL
The display unit of the print pattern image in the right is as follows;
Horizontal : dot
Vertical : do line
[LCD]
[Print] Refer to “Print patterns and commands”.
Print pattern image
Print pattern image
Print pattern image
PRT P1P1P1P2P2P2na3d
END P1P1P1P2P2P2na3d
