Casio TM-100 User Manual

(70200236)
Coil
Bottom view of P.C.B.
-2-
LCD drive terminals
LSI
P.C.B. with LSI
(71002128)
Top view of P.C.B.
(71032167)
Chip capacitor
. CIRCUIT DIAGRAM
2. CHECKING TERMINALS AND COMPONENTS
3. SPECIFICATIONS

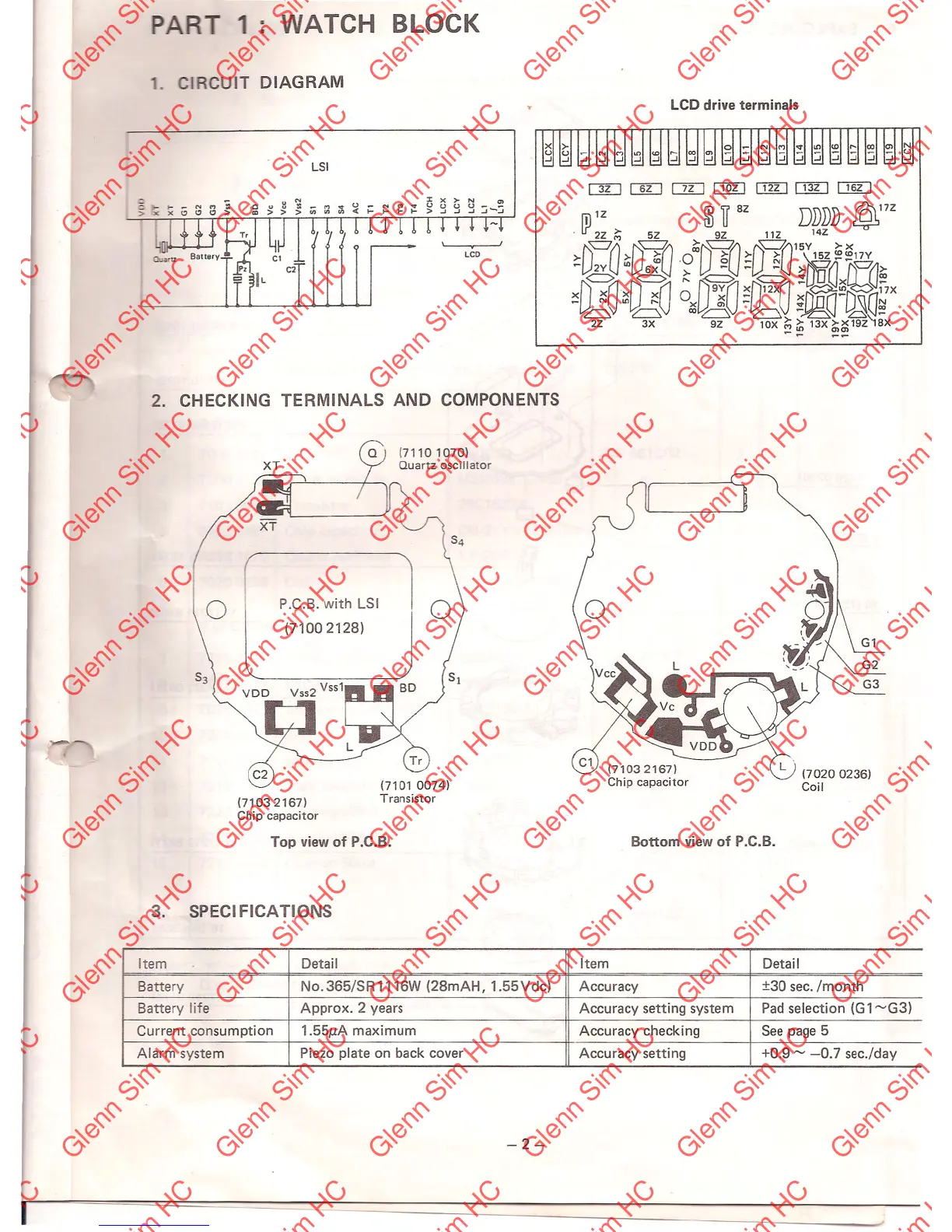

PART 1 . WATCH BLOCK
Item
Detail ItemDetail
Battery
NO.365/SRll16W (28mAH, 1.55Vdc)
Accuracy
±30 sec. /month
Battery life
Approx. 2 years
Accuracy setting system
Pad selection (G1~G3)
Current consumption
1.55MA maximum Accuracy checkingSee page 5
Alarm system
Piezo plate on back cover
Accuracy setting
+0.9 ~ -0.7 sec./day
