Casio TV-600D - A;D Pcb

— 9 —

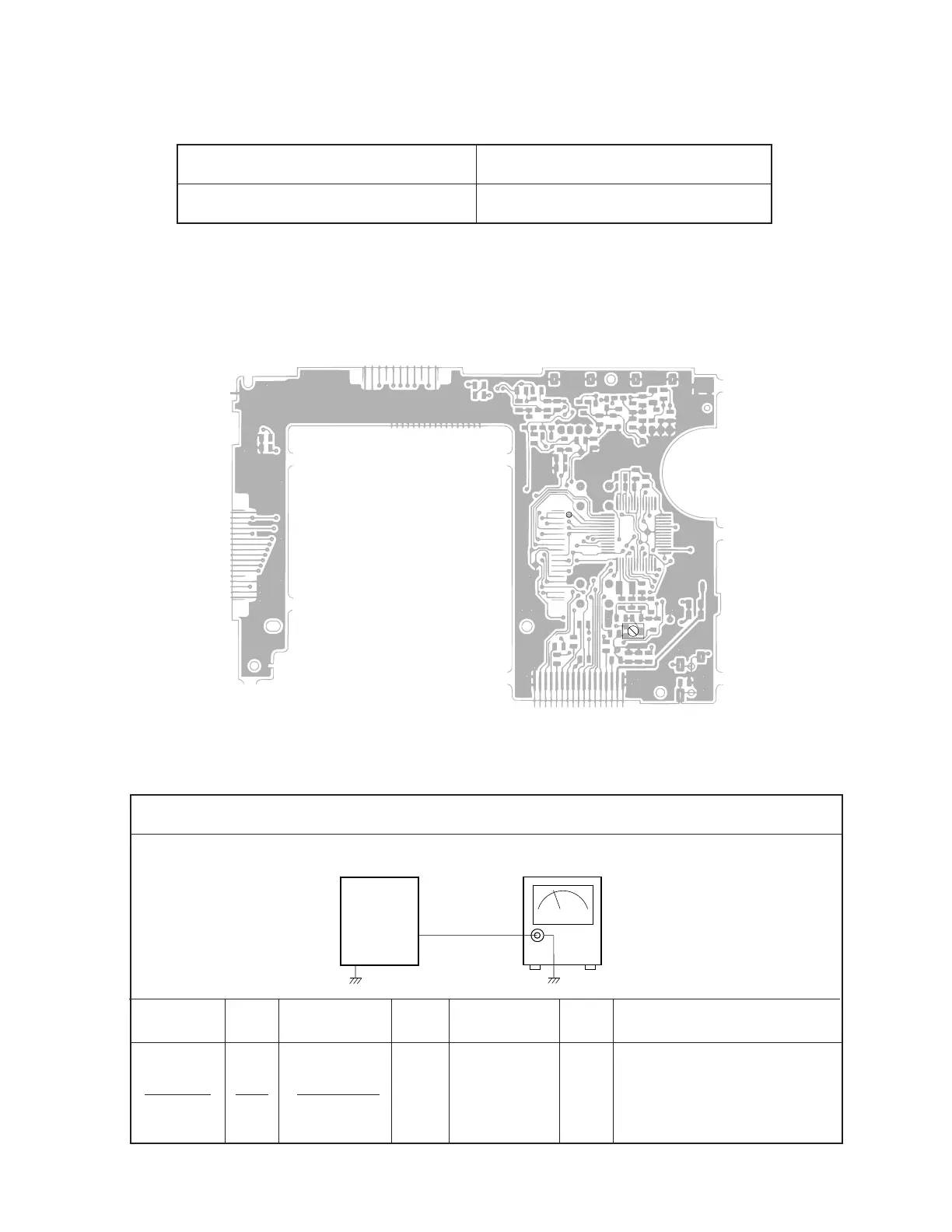

A/D PCB
Item to Be Adjusted
Adjustment And Test Point Locations
Item Measuring Instrument
Clock adjustment Voltmeter
TOP VIEW
TP6
VR700
Clock Adjustment
Voltmeter
VR700
TP6
Equipment Connection / Procedure
Adjust for 2.05 ± 0.05 V read-
ing on voltmeter.
Input Input Input Output Output
Connection Point Signal Connection Point
Adjust Result
Set
Output
Voltmeter
TP6
TV-600
