V-R7000/V-R7100
– 32 –

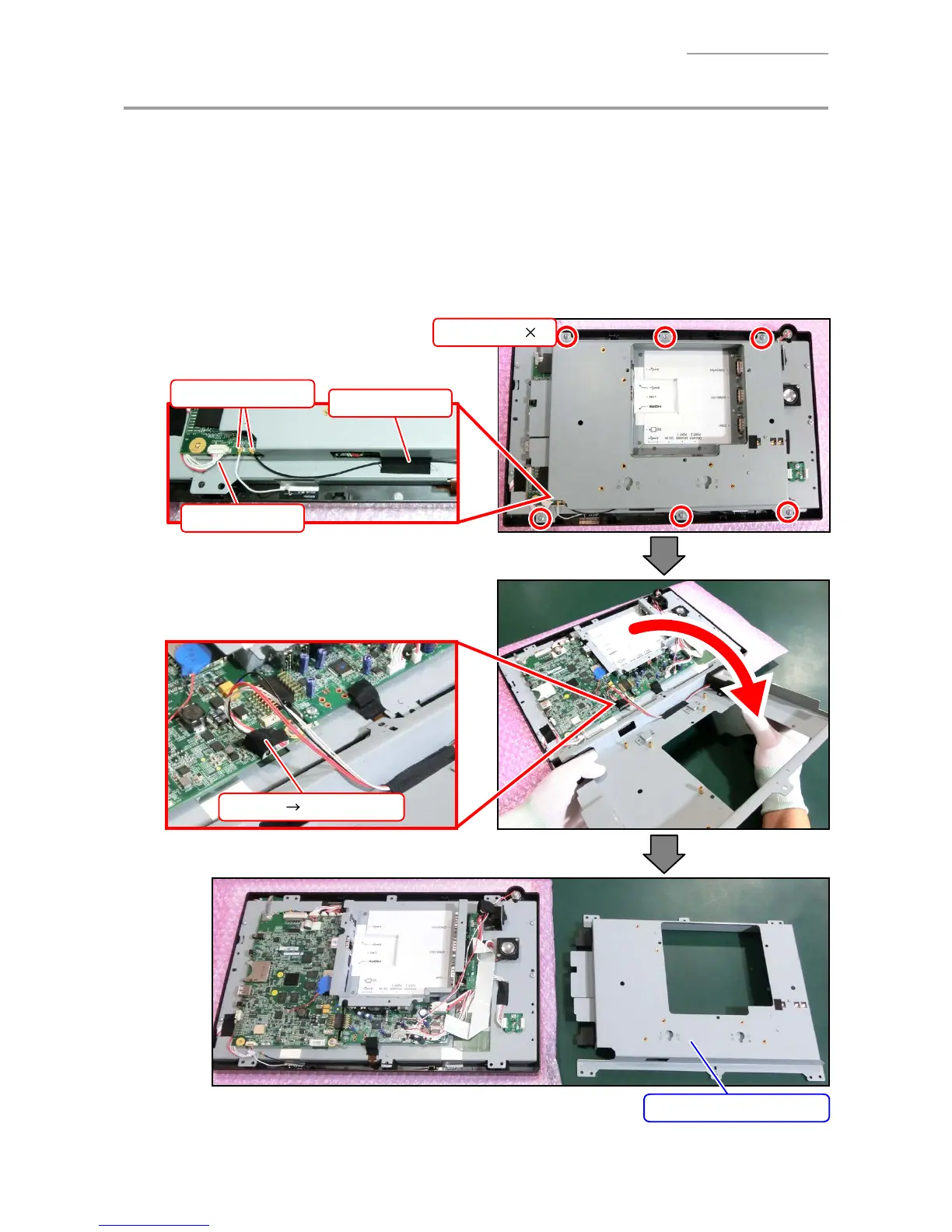

B. BACK-CHASSIS-ASSY
B-1. Disconect one connector.
B-2. Disconect two coaxial connectors of the antenna. (V-R7100 only)
B-3. Peel off one tape that fi xes the coaxial cable of the Wireless LAN antenna. (V-R7100 only)
B-4. Undo six screws.
B-5. Remove the BACK-CHASSIS-ASSY.
NOTE: The BACK-CHASSIS-ASSY is yet connected to the main PCB.
B-6. Peel off one tape and disconnect one connector.
Connector
Tape
Coaxial cables
Screws (S2) 6
Tape Connector
BACK-CHASSIS-ASSY
