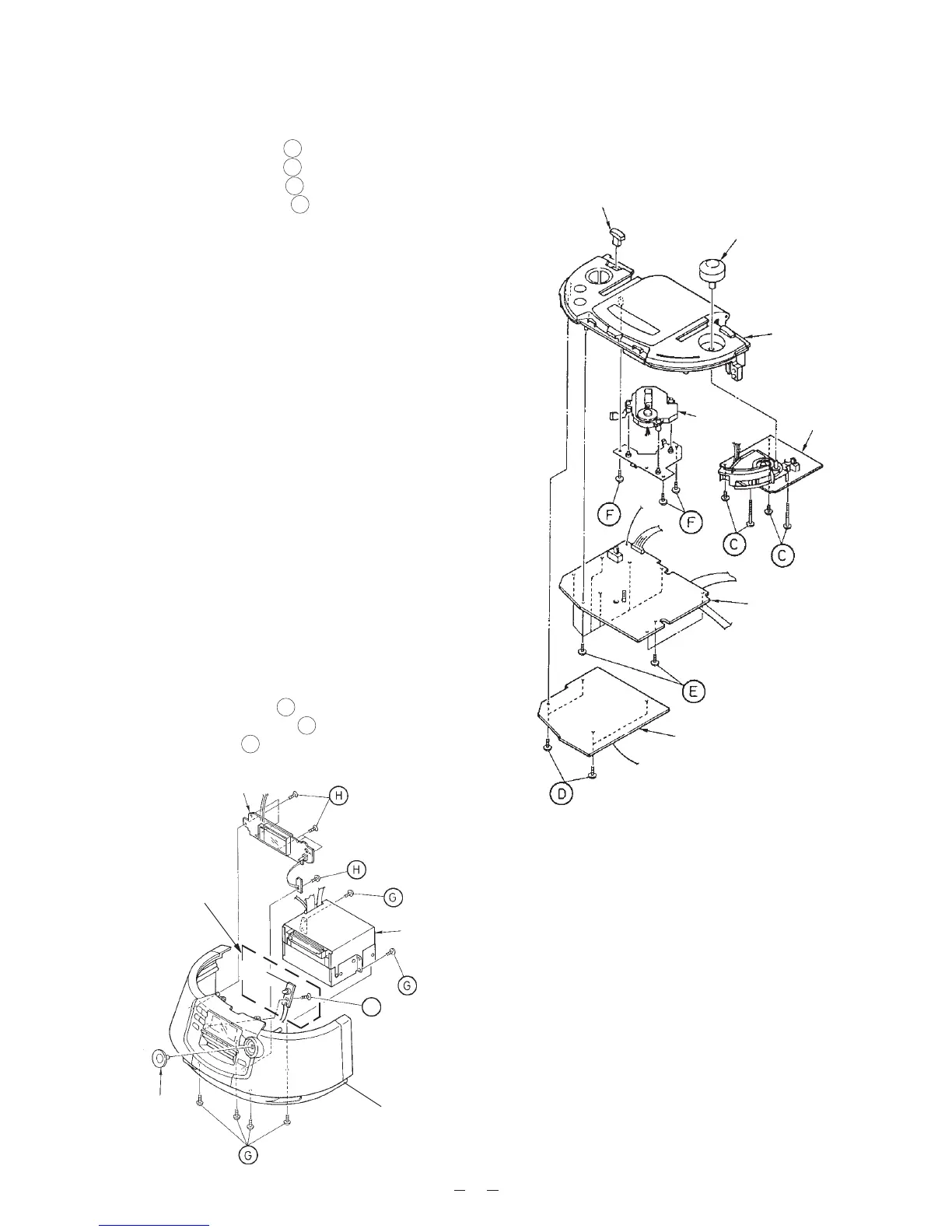

4. Pull out the function knob and tuning knob.
5. Remove four screws C holding the tuner unit.
6. Remove four screws D holding the AMP unit.
7. Remove nine screws E holding the CD unit.
8. Remove three screws F holding the CD mechanism set.
9. Pull out the jog knob.
10. Remove six screws G holding the MD assembly.
11. Remove seven screws H holding the display unit.
12. Remove screw I holding the LED PCB.
3
Function Knob
Tuning Knob
CD Unit
Tuner Unit
CD
Mechanism
Set
AMP Unit
Top Case Assembly
Figure 3
MD Assembly
Case Assembly
Jog Knob
LED
PCB
I
Model-C only
Figure 4
