Casio ZD-1

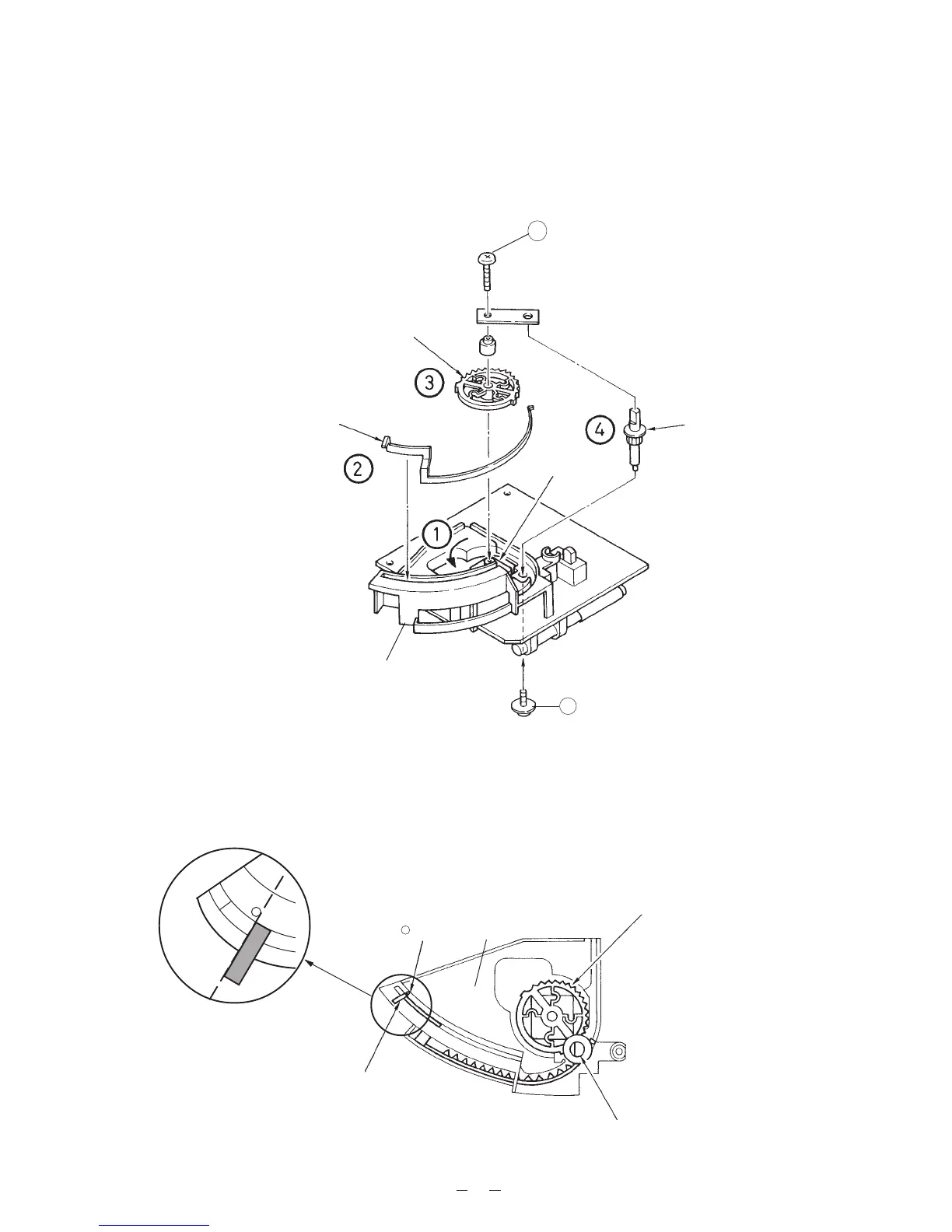

REASSEMBLY OF TUNING POINTER
1. Turn the varicon unclockwise stop position.
2. Set the pointer ; mark position. (refer figure 6)
3. Set the varicon gear of figure 6 position.
4. Insert the tuner gear, fixed the screws L ( tuner collar and tuner plate) and K. (refer figure 5)
Figure 6
4
Varicon Gear
Tuner Gear
Pointer
Mark
Tuner Chassis
K
Figure 5
Varicon Gear
Pointer
Varicon
Tuner Gear
L
Tuner Chassis
