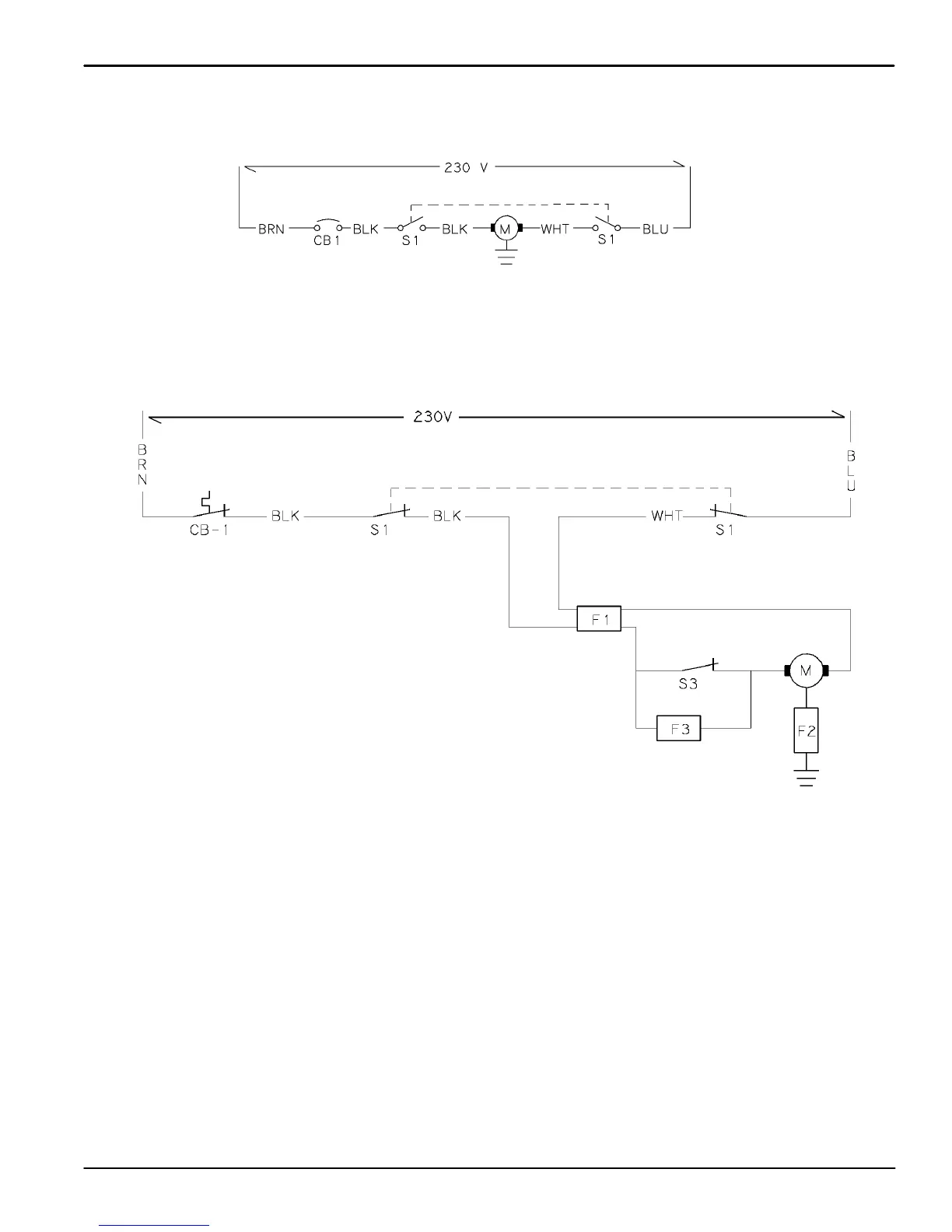

ELECTRICAL DIAGRAMS
LS-1700/LS-1700HD/TS-1700HD/LS-2000/LS-2000HD/TS-2000HD (01–00)
9
DUAL SPEED 240V EMC MODEL
SINGLE SPEED 240V EMC MODEL
REF LEGEND
BLK = Black
BRN = Brown
BLU = Blue
WHT = White
S1 = Switch
S3 = Switch, Speed
CB1 = Circuit Breaker, 12A
M = Motor
F 1= Filter, RFI
F 2= Filter, RFI
F 3= Filter, RFI
