TROUBLESHOOTING

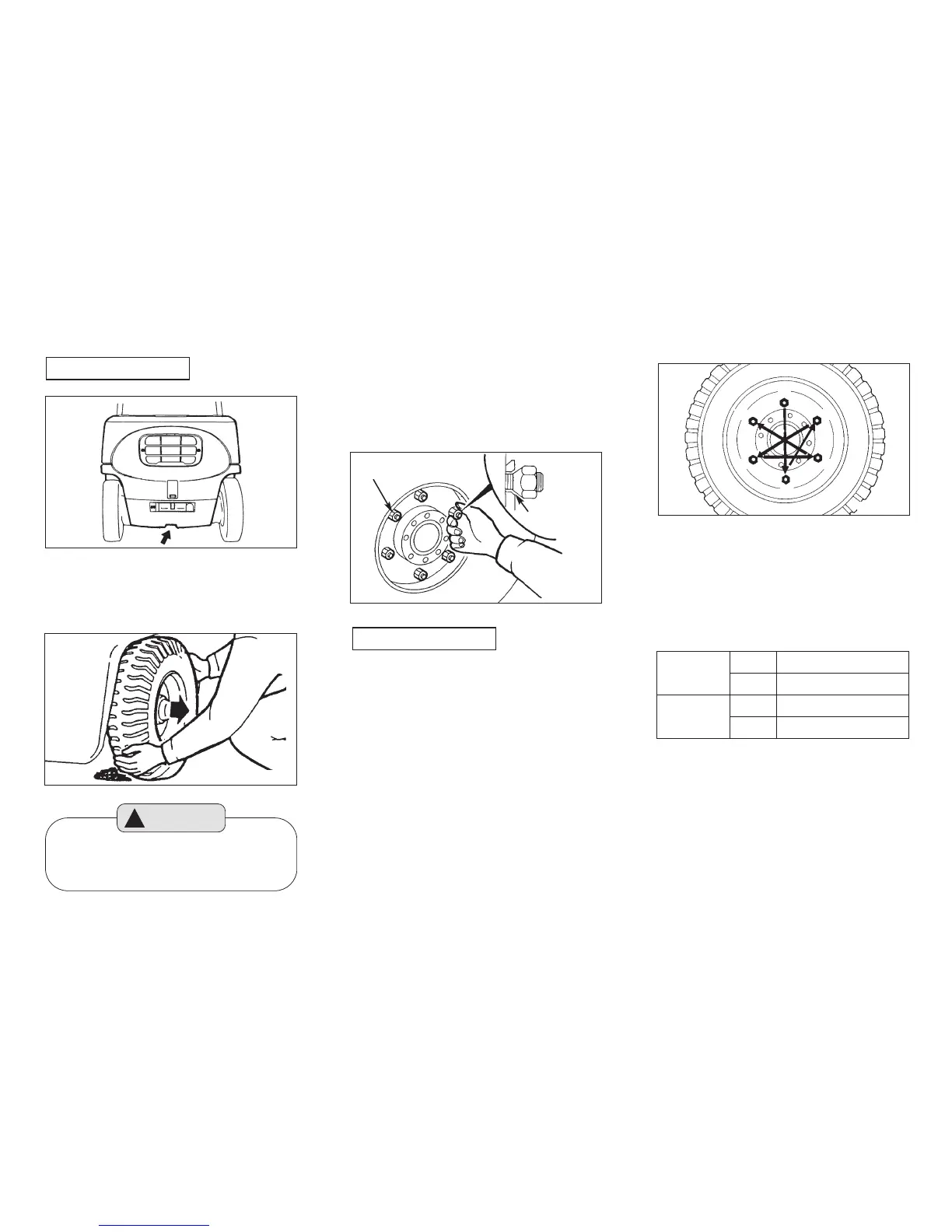

4. Remove the wheel nuts (loosened in
step 1).
5. Firmly grip the wheel with both hands and
remove it from the truck.
1. Install the wheel and tighten the wheel nuts
finger tight until their clamping surfaces
come into full-face contact with the coun-
terbores in the rim.
NOTICE: Make sure the clamping sur-
faces of the wheel nuts and
counterbores are free of dirt.
2. Lower the truck by operating the jack until
the tire just touches the ground. Then
tighten the wheel nuts in the sequence
shown, in two or three steps, to the speci-
fied torque.
Tightening Torque
Unit: N•m (kgf•m) [lbf•ft]
To Install Tire
Be careful NOT to strip the bolt threads
when removing the wheel.
100834
100835A
Counterbore
Wheel nut
100836A
Position the jack under the counterweight at the
recessed point and raise the truck.
To Raise Rear Tire
103243
➀
➁
➂
➄➃
➅
4 ton
Front 403 (41.1) [297]
models
Rear 377 (38.5) [278]
4.5 to 5
Front 551 (56.2) [406]
ton models
Rear 377 (38.5) [278]
CAUTION
!
