Cavaliere 30 - Electric Schematic

Pg 18

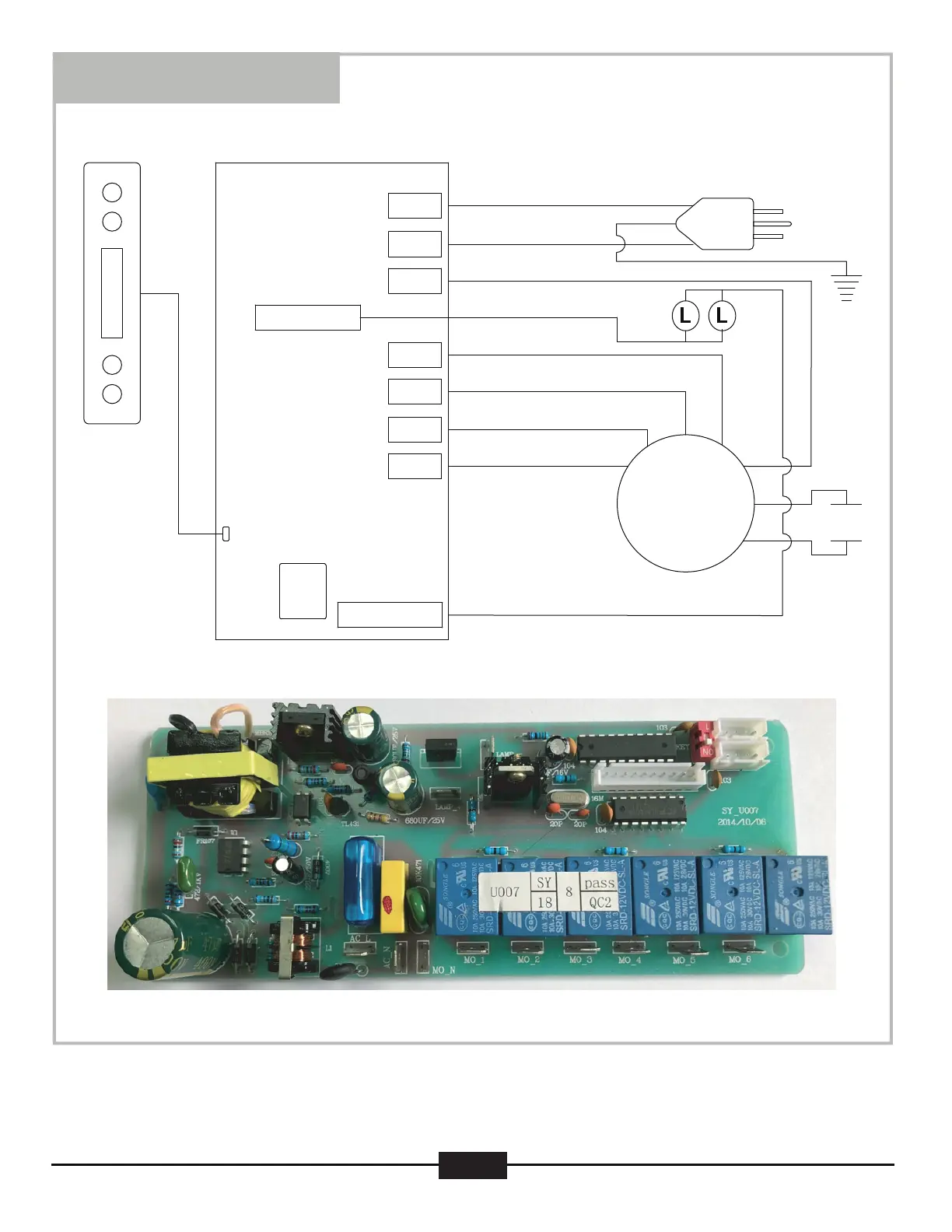

Electric Schematic
* Subject to change without notice, please contact your local reseller for details.
Black
MOTOR
Blue
White
Pink
Red
Lamp (+)
Fan 4
Fan 3
Fan 2
Fan 1
Fan (-)
Neutral
Live
Orange
Green
Yellow
Yellow
12uf/250v (110v)
4uf/500v (220v)
AC_L
AC_N
MO_N
MO_1
MO_2
MO_3
MO_4
Lamp (-)
Black
White
White
