facade BED - QUEEN
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
Made in USA - r07 Page 2 of 3
1 2
3
4

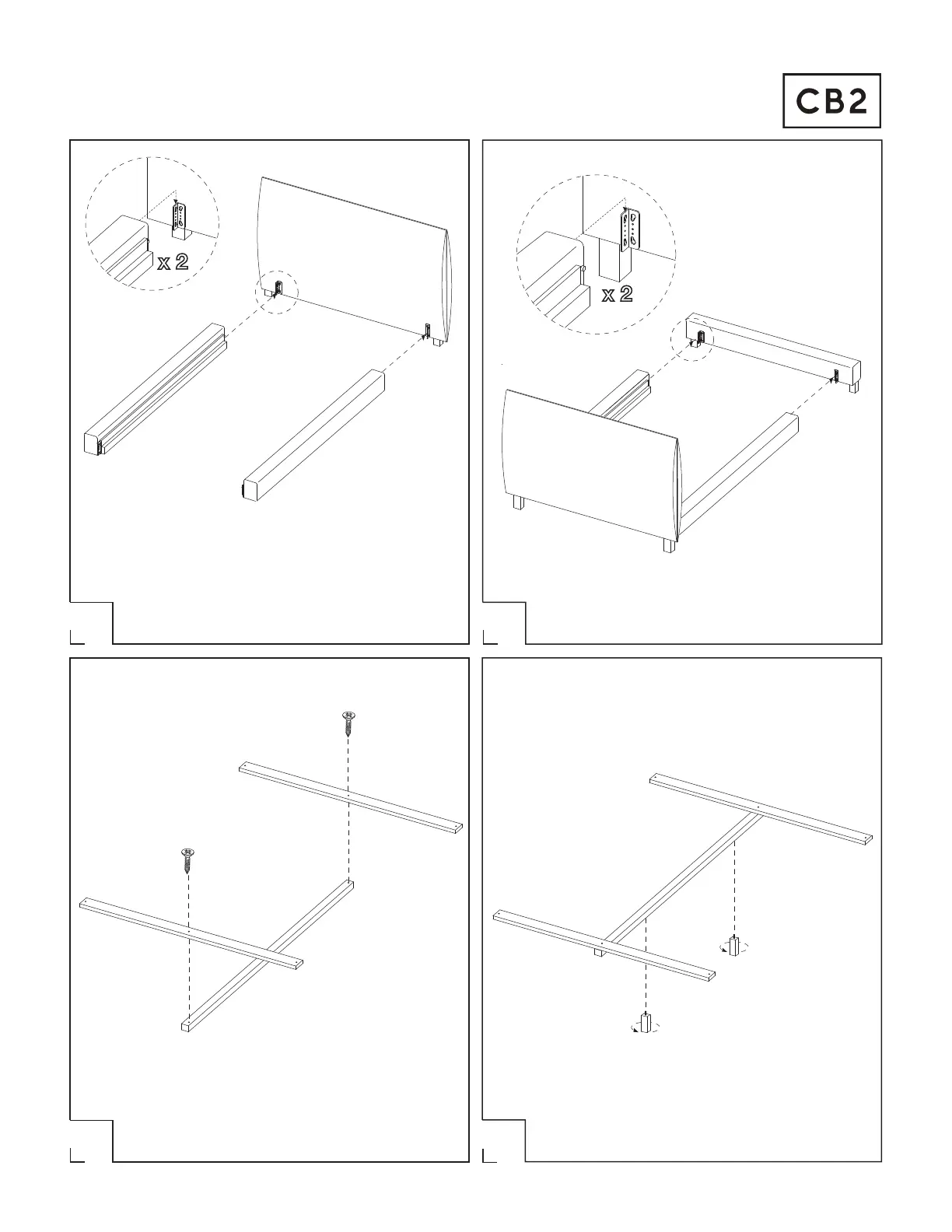

With the assistance of another adult, lift both ends
of side rail so it is the same distance from the floor.
At this point, insert pegs of each side rail into
corresponding holes in each bracket of headboard
as shown. Push down firmly at each bracket until
it locks into position.
Attach brackets of left/right side rails into
corresponding brackets of footboard as shown.
Attach 2 slats to center support with 1 screw per
slat as shown. Secure, but do not over tighten,
screw with a phillips head screwdriver.
right side
rail
left side
rail
headboard
footboard
right side
rails
left side
rails
center
support
slat
Attach 2 center support legs to center support
assembly as shown. Turn each support leg
clockwise to secure.
center support
assembly
center
support
leg
To Next Page
