CB2 shelf - Footboard and Center Rail Assembly; Attach Footboard Shelf; Mount Footboard and Center Rail

A
STEP 2
STEP 3
STEP 2
STEP 3
headboard
left side
rail
right side
rail
bracket
center
rail
bracket

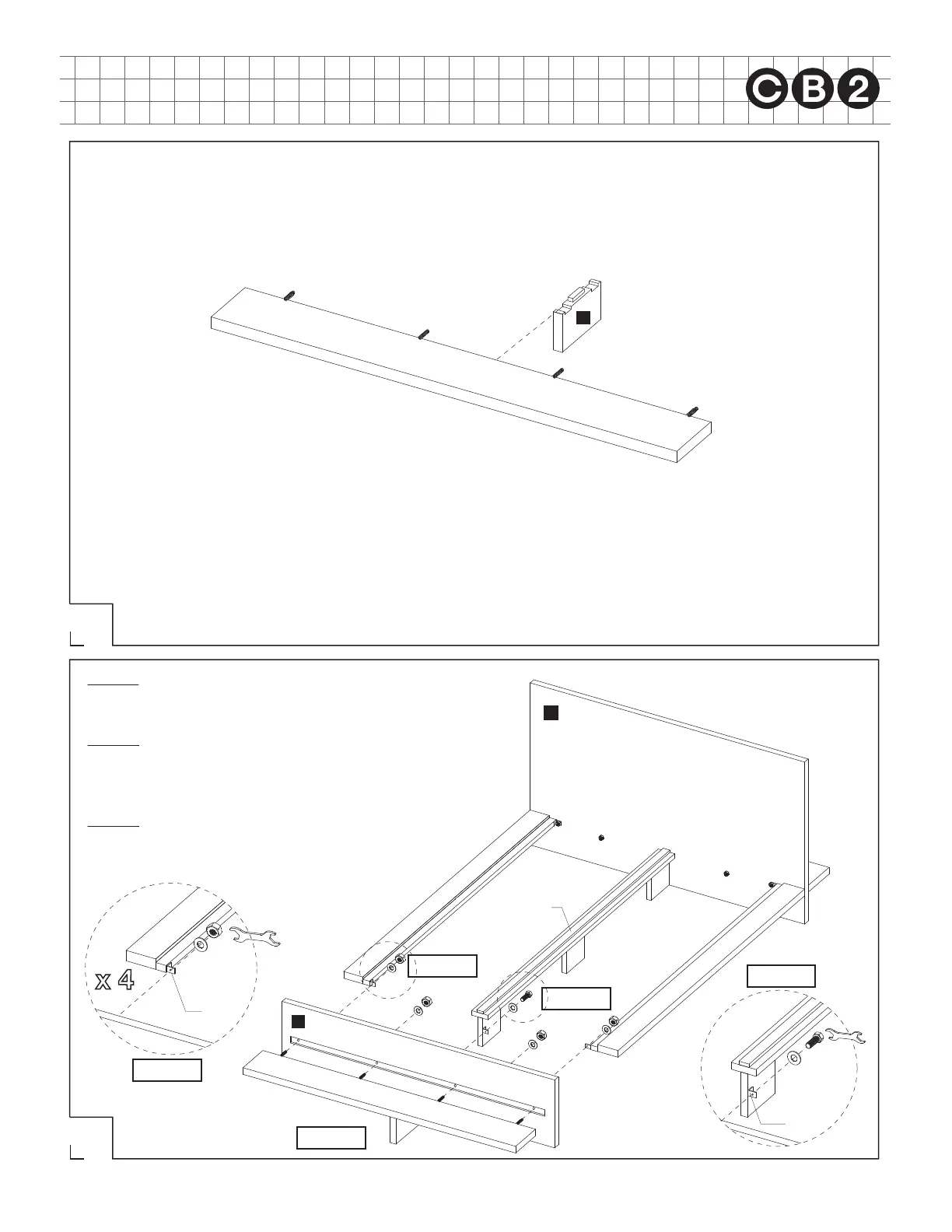

STEP 1 : Fit dowels of footboard shelf into correspond-
ing holes and slot of footboard as shown. Make sure
threaded stud is exposed on the other side of footboard.
STEP 2: Fit threaded studs of footboard into corre-
sponding brackets of left and right side rails. Using a
hex wrench, secure each threaded stud with 1 hex nut
and 1 washer as shown.
STEP 3: Attach bracket of center rail to footboard with
1 bolt and 1 washer as shown, using a hex wrench.
footboard
footboard
shelf
B
STEP 1
B
Carefully fit notched end of shelf support panel B into bottom of footboard shelf shown.
footboard
shelf
shelf
support
panel
shelf KING BED
3
