9
10
11
12
walnut LOW DRESSER
Made in Vietnam - r04 Page 4 of 5

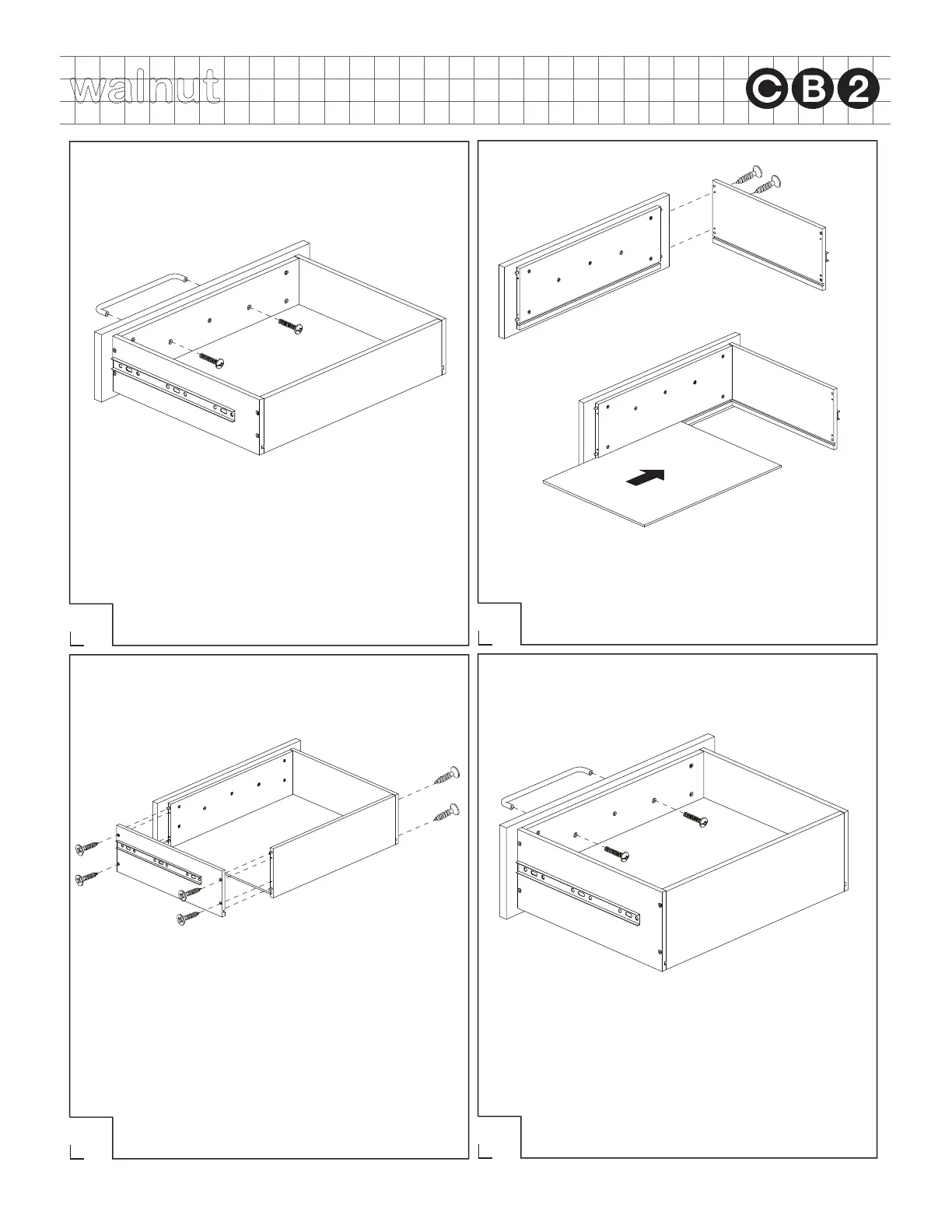

Attach 1 pull to small drawer front with 2 large
bolts as shown, using a screwdriver.
Repeat steps for remaining small drawer assembly.
A. Attach left large drawer side to large drawer
front with 2 screws as shown.
B. Insert drawer bottom into grooves of small
drawer front and side as shown.
A. Attach left large drawer side to large drawer
back with 2 screws as shown.
B. Attach right large drawer side to large drawer
front and back with 4 screws as shown.
A
B
B
A
Attach 1 pull to large drawer front with 2 large
bolts as shown, using a screwdriver.
Repeat steps for remaining large drawer assembly.
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
