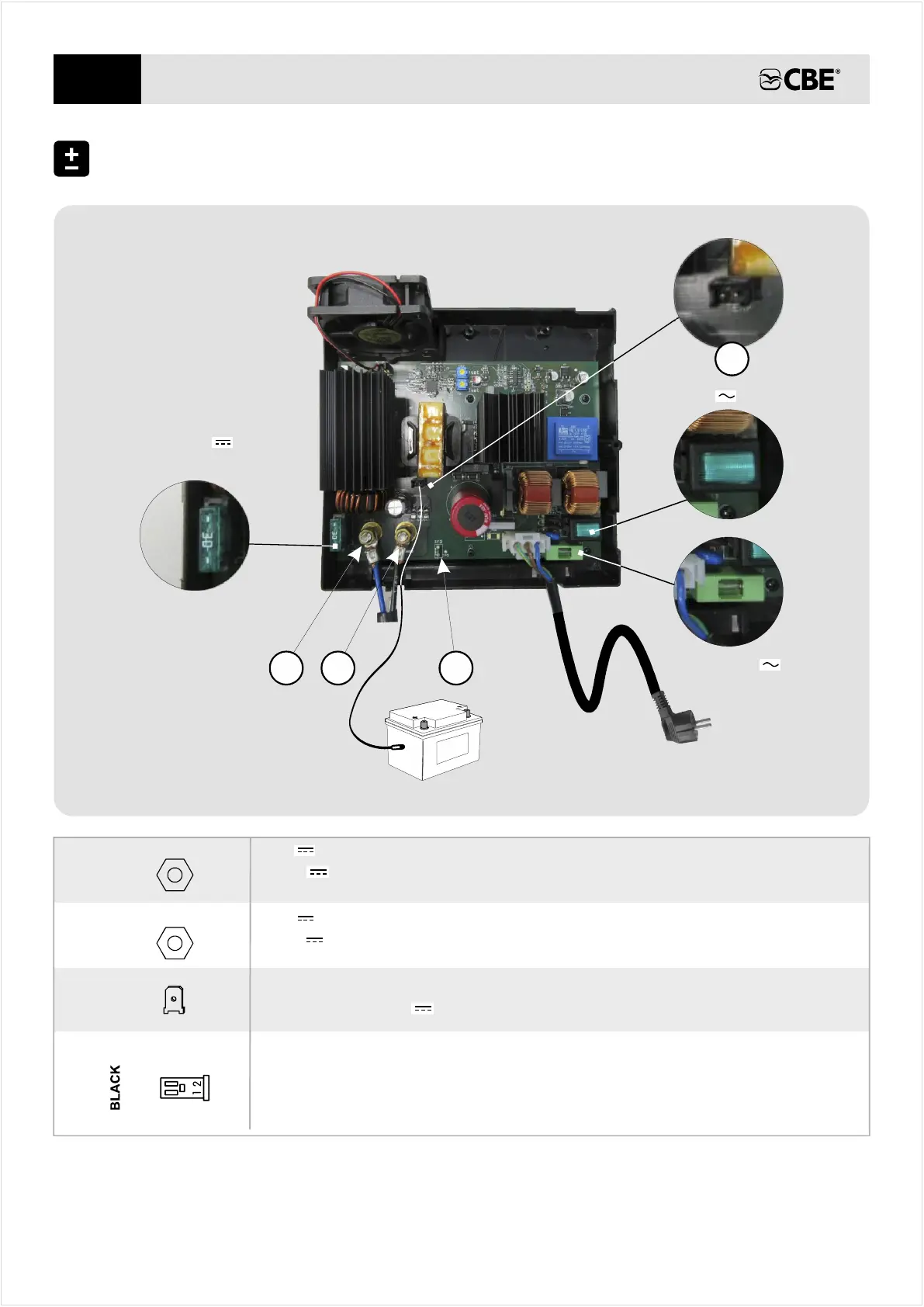

CONNECTIONS
Technical data are indicated also the label inside the coveron
8
EN
230V On/Off 
Fuse 230V
F2 - T A3.15
Temperature sensor
mod."CTCB"
to be placed on the battery
Connection battery
temperature sensor
“CTCB”
L=3mt
1 32
4
F1 - 30A
Fuse 12V 
12V CONNECTION
+ 12V supply
1)
4)
+12V
12V CONNECTION
- 12V supply
2)
-12V
SIGNAL
Net signal «S» ( ) +12V (To connect to CBE equipment)
3)
Temperature sensor (mod. “C , where it cannot TCB”) to be placed close to the battery
be affected by other heat sources
When is adapted according to the temperature connected, the charging voltage
measured by the sensor.
CONNECTION BATTERY TEMPERATURE SENSOR
