CBN CH7284E - Rear Panel

8
LED
Flashing
On
connection connected
Blue: Upstream channel is connected
with bonded channels
4
ONLINE
Scanning for Internet connection;
transmitting or receiving data over
the Internet
Green: Connected to Internet
5
TEL
Telephone is off-hook; dialing or
call in progress
Green: Telephone is connected and
activated; on-hook
6
WIRELESS
Amber: WPS function is enabled.
Green: Wi-Fi wireless interface is
active now.

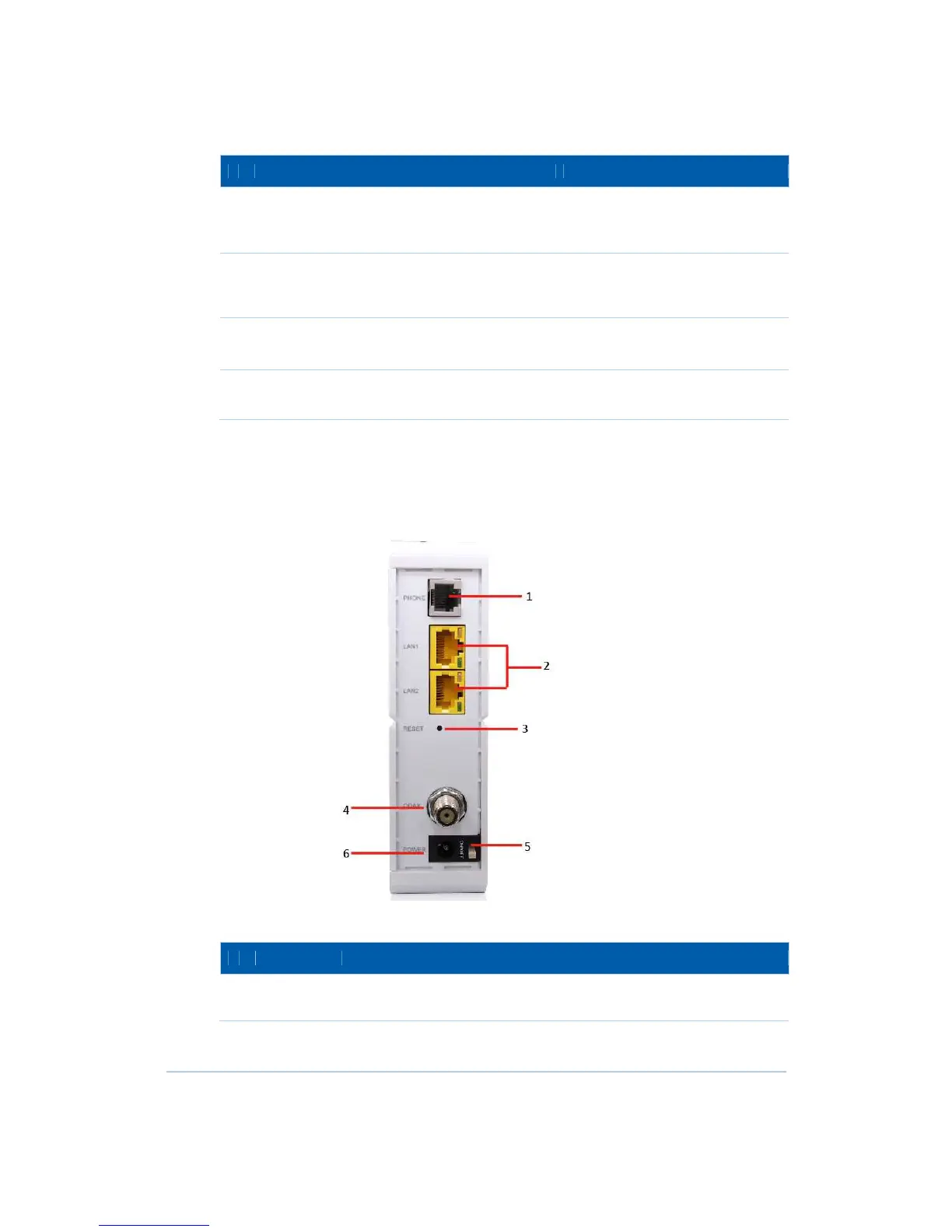

Rear Panel
The CH7284E (shown above) rear panel contains the following cabling port and
connectors:
Item Description
1
PHONE VoIP connection for a single telephone.
