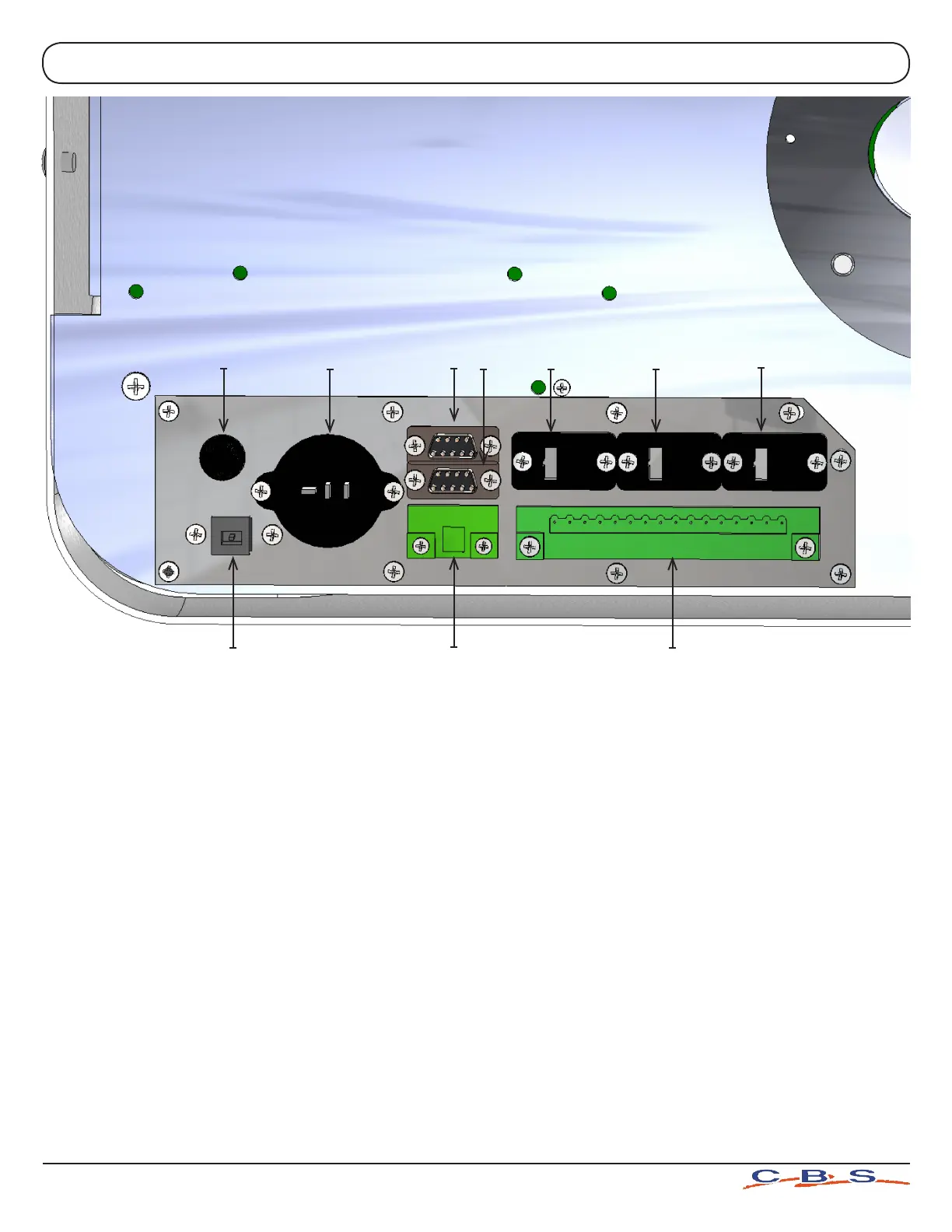

SERIES 5000 BACK PANEL
1. 2 Amp Fuse - VAC 2 amp buss fuse; 220 volts slow-blow. (T2A-250V)
2. Global Remote Alarm - Dry contact that switches status when any alarm occurs. All Global
Alarm connections are dry contact relays with a max output of 24VDC@2A(see page 12)
3. Thermal Printer Port - Used for printing alarms & data.
4. AUX RS 485 - RS-485 communications port for future expansion.
5. Ethernet Port- The Ethernet Cord for future expansion.
6. RS-485 IN- Used for RS-485 Cryomonitor communication between controllers.
7. RS-485 OUT - Used for RS-485 Cryomonitor communication between controllers.
8. USB Port - Used for Cryomonitor communications with PC.
9. Overow Sensor (Optional)- If installed, used to sense an overow condition in the storage
space of a vessel. (see page 11)
10. 16 Port Connector - Operational range: Temperature is +50° C to -200°C Level: 0”-33”
• 0-5VDC Outputs - For Temp. A, Temp B. and Level. (see page 11)
• 4-20mA Outputs - For Temp A. , Temp B. and Level. (see page 11)
1
2
3
4 5 6
7
8 9 10
