OPERATION
10
WARNING:
Hold the centre mast firmly while removing the quick release pins so as to
prevent the user from being hit by the rack arm .
Ensure that the bike carrier is not loaded with
bicycles.

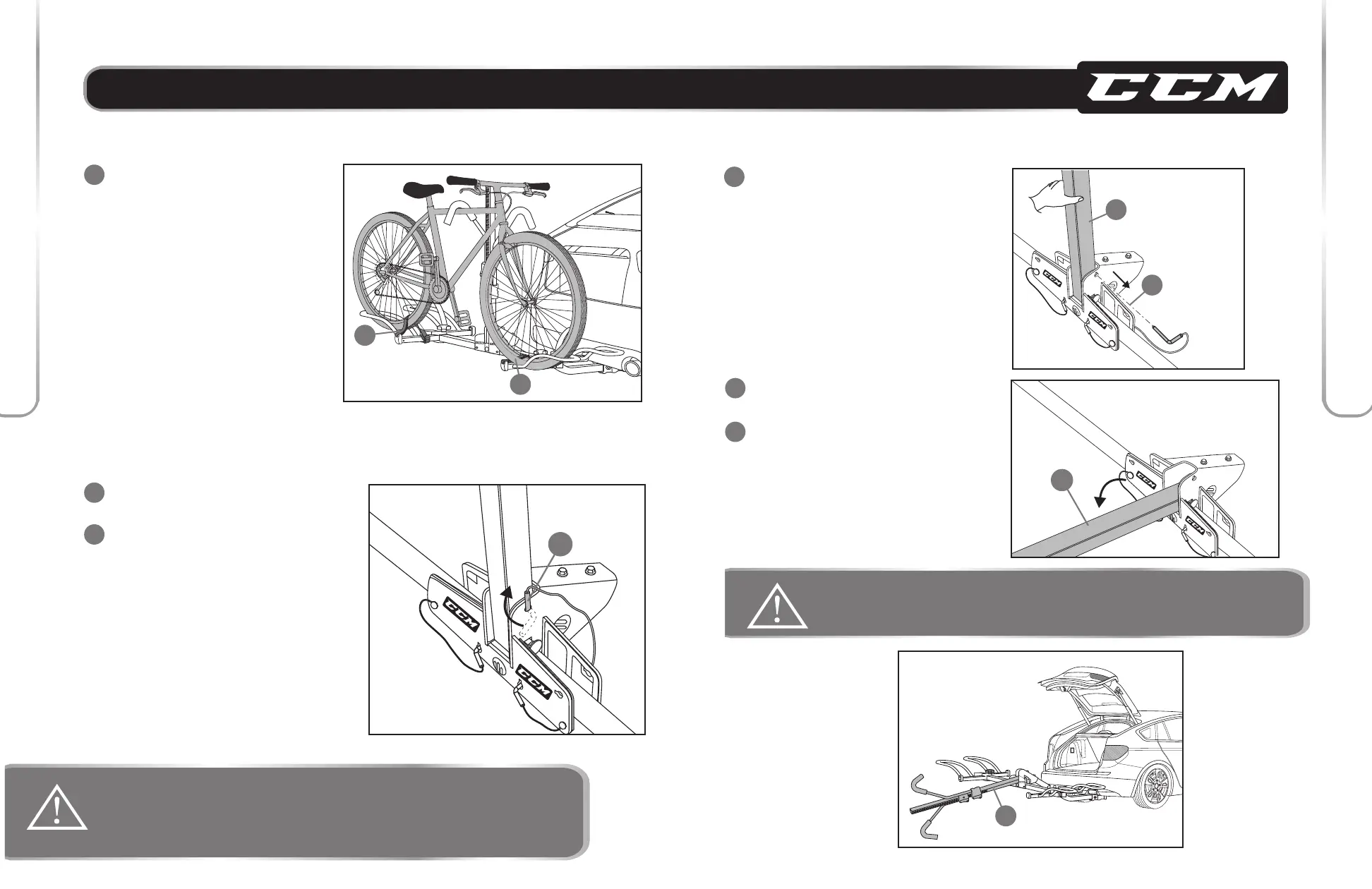

Rotate the top quick-release pin (1) upwards in
such a way that the keyhole on the centre bracket
aligns with hole on the centre mast.
16
17
TILTING THE BIKE CARRIER
1
8
8
Secure the bicycle wheels with the left and right
wheel trays using straps (8).
15
Hold the centre mast (E) and remove the top
quick-release pin (1) from the bike carrier.
Tilt the centre mast (E) completely away from the
vehicle.
After loading, lift the centre mast back to its upright
position. Reinsert and rotate the top quick-release
pin to lock the mast in position.
18
19
20
E
1
E
E
Note: The bike carrier can be tilted for easy access to the rear trunk/hatch of the vehicle and to prevent damage of the
carrier or vehicle while opening the trunk lid of the vehicle.
OPERATION
CAUTION:
Make sure the centre mast (E) is tilted while opening the trunk lid of the
vehicle.
