model no. 040-1192-0
PACKAGING CONTENTS
ASSEMBLY
4
5

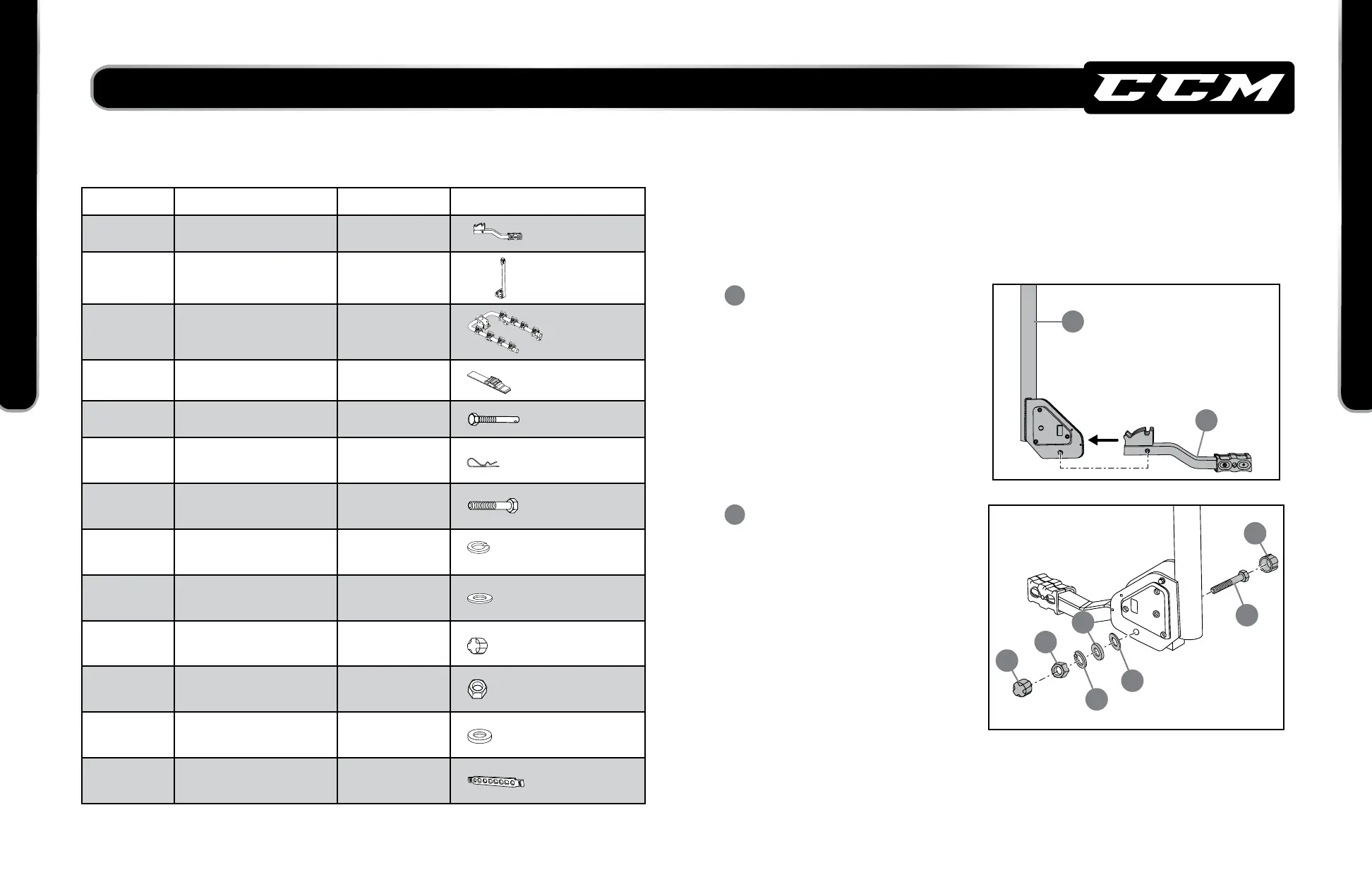

PACKAGING CONTENTS
PART NUMBER DESCRIPTION QUANTITY ILLUSTRATION
A
Stinger with 2" (5 cm) hitch
adaptor
1
B Centre mast with mast cap 1
C Rack arms 1
D Cargo strap 1
E Anti-wobble hitch pin 1
F Hitch pin clip 1
G
Bolt: 3 1/4" (8.3 cm) L,
3/4" (19 mm)
2
H Spring washer: 1/2" (13 mm) 3
I Flat washer: 1/2" (13 mm) 3
J
Protective bolt cap:
3/4" (19 mm)
4
K Nylon lock nut: 3/4" (19 mm) 2
L Plastic washer: 1/2" (13 mm) 2
M Cradle strap 12
TOOLS REQUIRED FOR ASSEMBLY
ASSEMBLING THE BIKE CARRIER
• 3/4" (19 mm) ratcheting socket.
• 3/4" (19 mm) wrench.
• Cross-head #3 screwdriver.
Align the holes at the lower end of the centre
mast (B) with corresponding holes of the
stinger (A).
Note: Use protective bolt caps (J) to cover the
bolt head and nut.
B
A
J
J
K
H
I
L
G
Insert bolt (G) into the aligned holes and secure
using a flat washer (I), plastic washer (L), spring
washer (H) and nylon lock nut (K). Tighten
the
nut using 3/4" (19 mm) wrench (not included).
1
2
