CCM 040-1192-0 - Page 5

model no. 040-1192-0
ASSEMBLY/ASSEMBLAGE
KEY PARTS/LISTE DE PIECES
INSTRUCTIONS/INSTRUCTIONS
ASSEMBLY
ASSEMBLY/ASSEMBLAGE
KEY PARTS/LISTE DE PIECES
INSTRUCTIONS/INSTRUCTIONS
ASSEMBLY
6
A

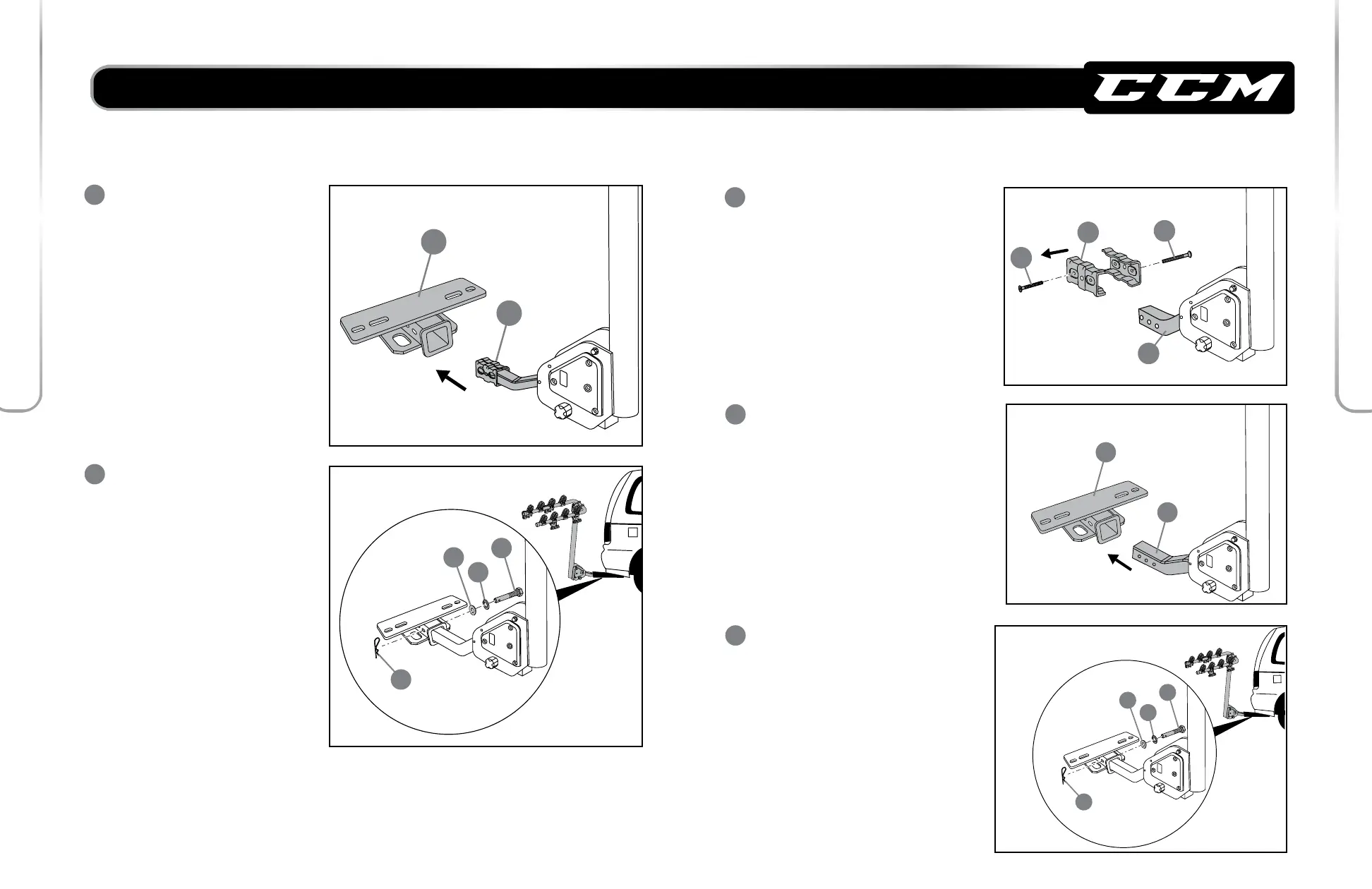

Insert the stinger (A) into the 1 1/4" (3.2 cm) hitch
receiver (6) on the vehicle.
12
STINGER INSTALLATION FOR 1 1/4" (3.2 CM) HITCH RECEIVER
A
5
7
7
Disassemble the 2" (5 cm) hitch adaptor (5) of the
stinger (A) by removing the two #3 cross-head
screws (7).
11
8
9
STINGER INSTALLATION FOR 2" (5 CM) HITCH RECEIVER
6
5
Insert the 2" (5 cm) hitch adaptor (5) of the
stinger into the
2" (5 cm) hitch receiver (6) on
the vehicle.
9
Insert the anti-wobble hitch pin (E) into the
aligned holes of the 2" (5 cm) hitch adaptor
and hitch receiver. Secure the bolt using a
spring washer (H), flat washer (I) and
hitch
pin clip (F)
. Tighten the anti-wobble hitch
pin using 3/4" (19 mm) wrench.
10
I
F
I
H
E
Secure the stinger using the anti-wobble hitch
pin (E), spring washer (H), flat washer (I) and hitch
pin clip (F)
. Tighten the anti-wobble hitch pin
using 3/4" (19 mm) wrench.
13
I
F
I
H
E
