model no. 040-1193-8
KEY PARTS/LISTE DE PIECES
INSTRUCTIONS/INSTRUCTIONS
CAUTION:
To avoid damage to the vehicle, ensure the lower support leg does not
rest on the rear bumper of the vehicle.
ASSEMBLY
8
9
KEY PARTS/LISTE DE PIECES
INSTRUCTIONS/INSTRUCTIONS
ASSEMBLY
CAUTION:
• Make sure all the strap hooks are attached to the metal frame of
the trunk and not on the fiberglass, plastic or rear glass of the vehicle
• Be sure that the straps do not rub against any sharp objects that could
cut or damage them.
WARNING:
Be cautious while adjusting the position of upper support leg, as it may
touch the rear glass of the vehicle.

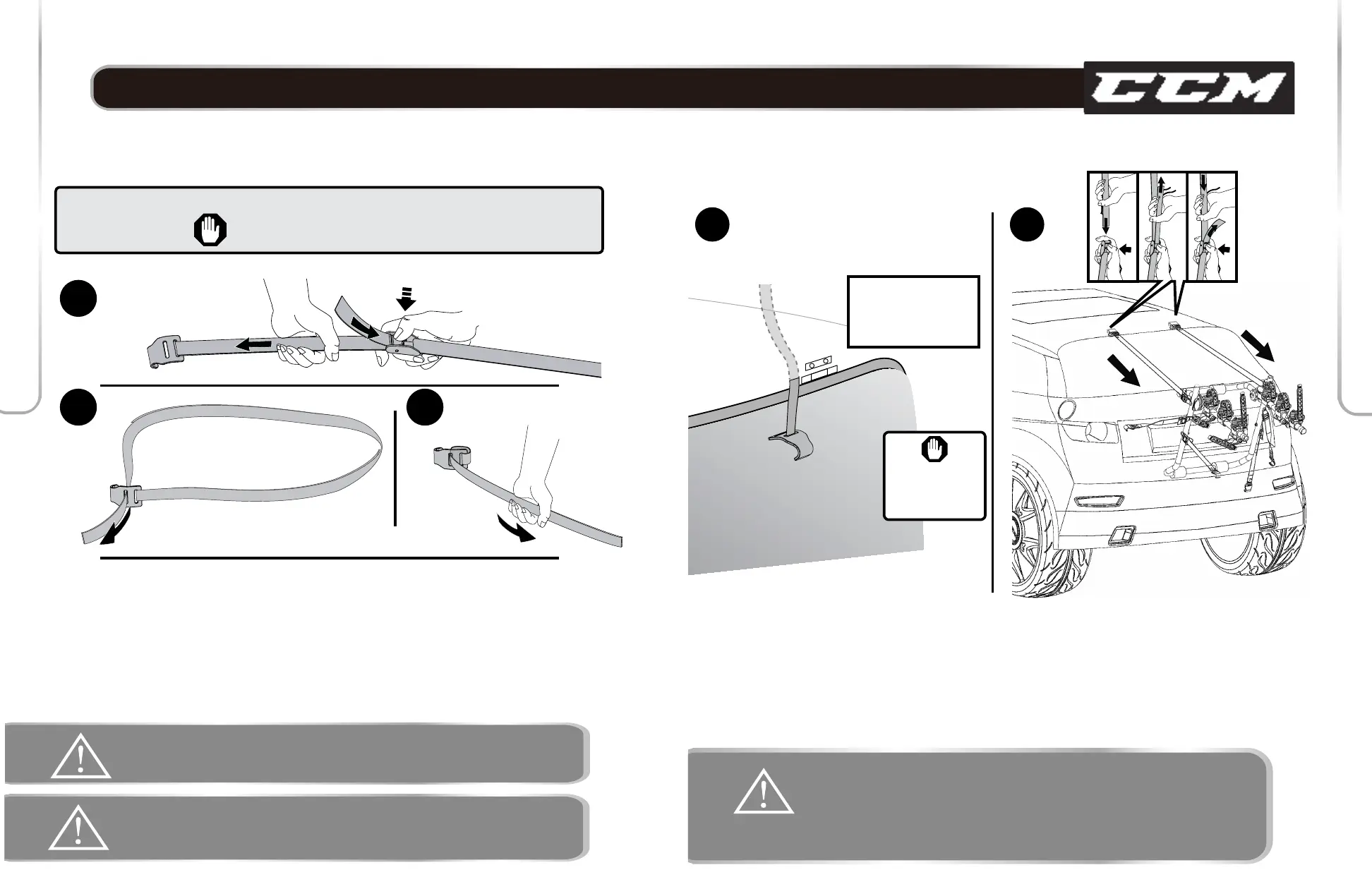

5.1
5.2 5.3
TOP REVERSABLE HOOKS：Installation instructions
If no reversable hook required?
Skip this page.
WARNING:
DO NOT REST THE
REVERSABLE HOOK
AGAINST GLASS.
Make sure the reversable
hook is free from contact
between hatch door and
vehicle’s frame
5.4
5.5
To Next Page
