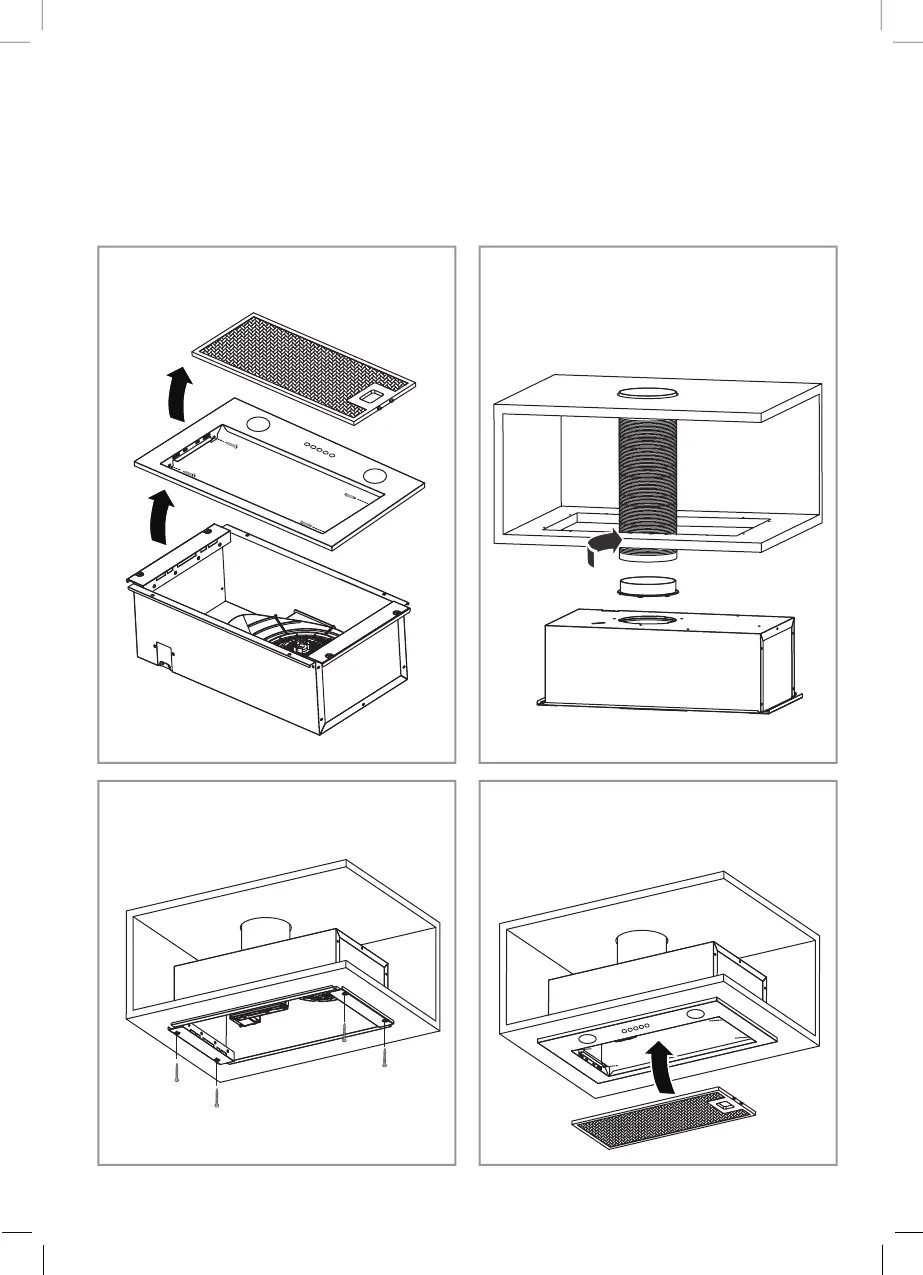

Remove the grease filter, unscrew
the 4 screws of the fixed panel and
remove it.
Place the extractor into the cabinet
opening and secure it with screws.
Secure the panel on with the 4
previously removed screws (Fig 7)
and insert the grease filter.
Connect the exhaust pipe to the
ducting adaptor and locate on the
extractor as indicated.
INSTALLATION
7.giF 8.giF
9.giF 10.giF
11
