Charcoal filter
In re-circulating mode, air is vented back into the kitchen through the
opening in the cooker hood.
This method is advised if you are not using your hob intensively.
Re-circulated air requires the use of charcoal filters to remove odours.
To ensure the best performance from your cooker hood, the charcoal
filter should be replaced every 3-6 months, dependent on use.
Note: This charcoal filter is non-washable and must be replaced as
required.

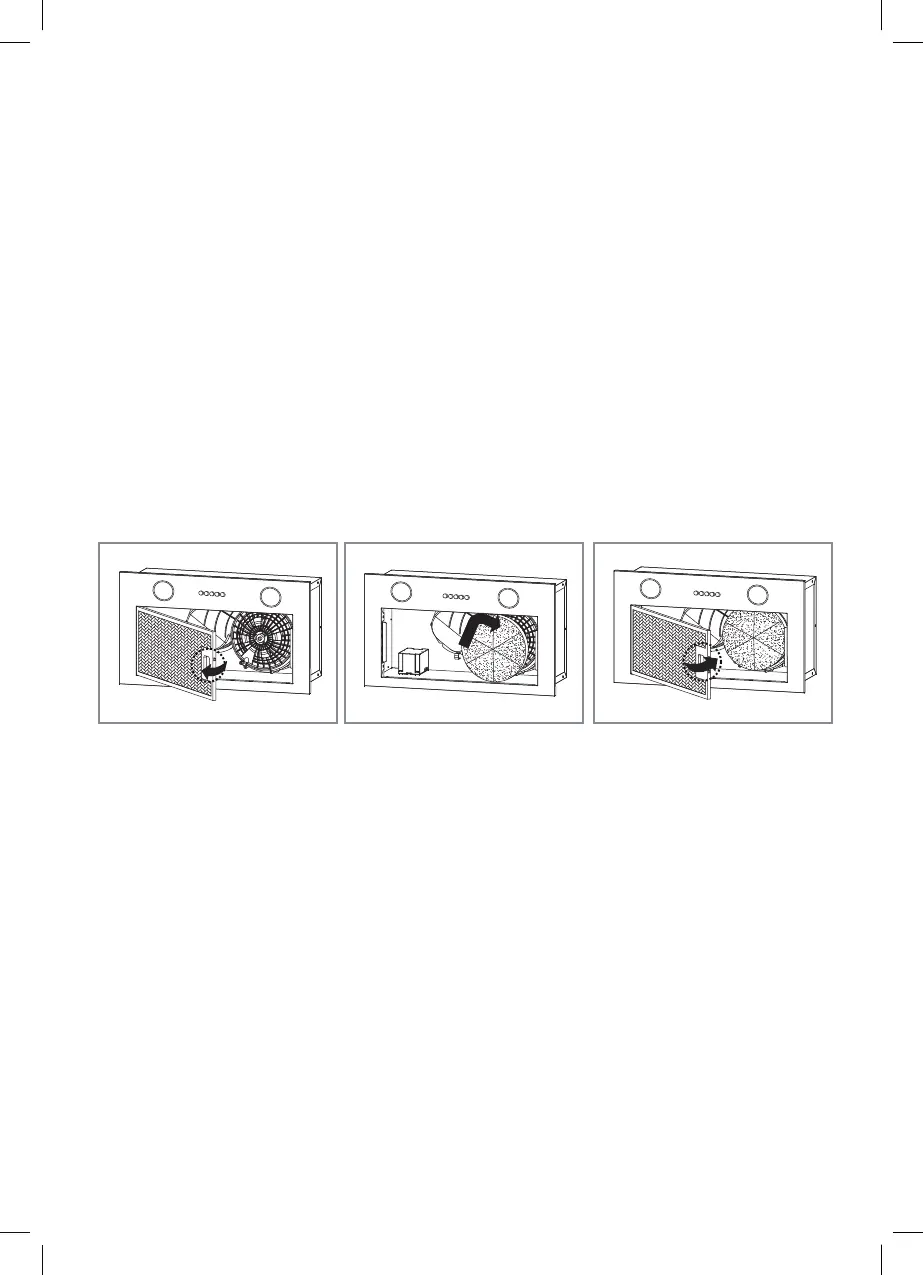

To attach a new charcoal filrer, follow the steps below:
1.Remove the grease filter (fig.3-I).
2. Place the charcoal filter on the centre of the motor support. Once firmly
located, turn the charcoal filter clockwise 90 degrees until the filter locks
into position(fig.3-II).
3.Replace the grease filter(fig.3-III)
Fig. 3-I
Fig. 3-III
Fig. 3-II
6
