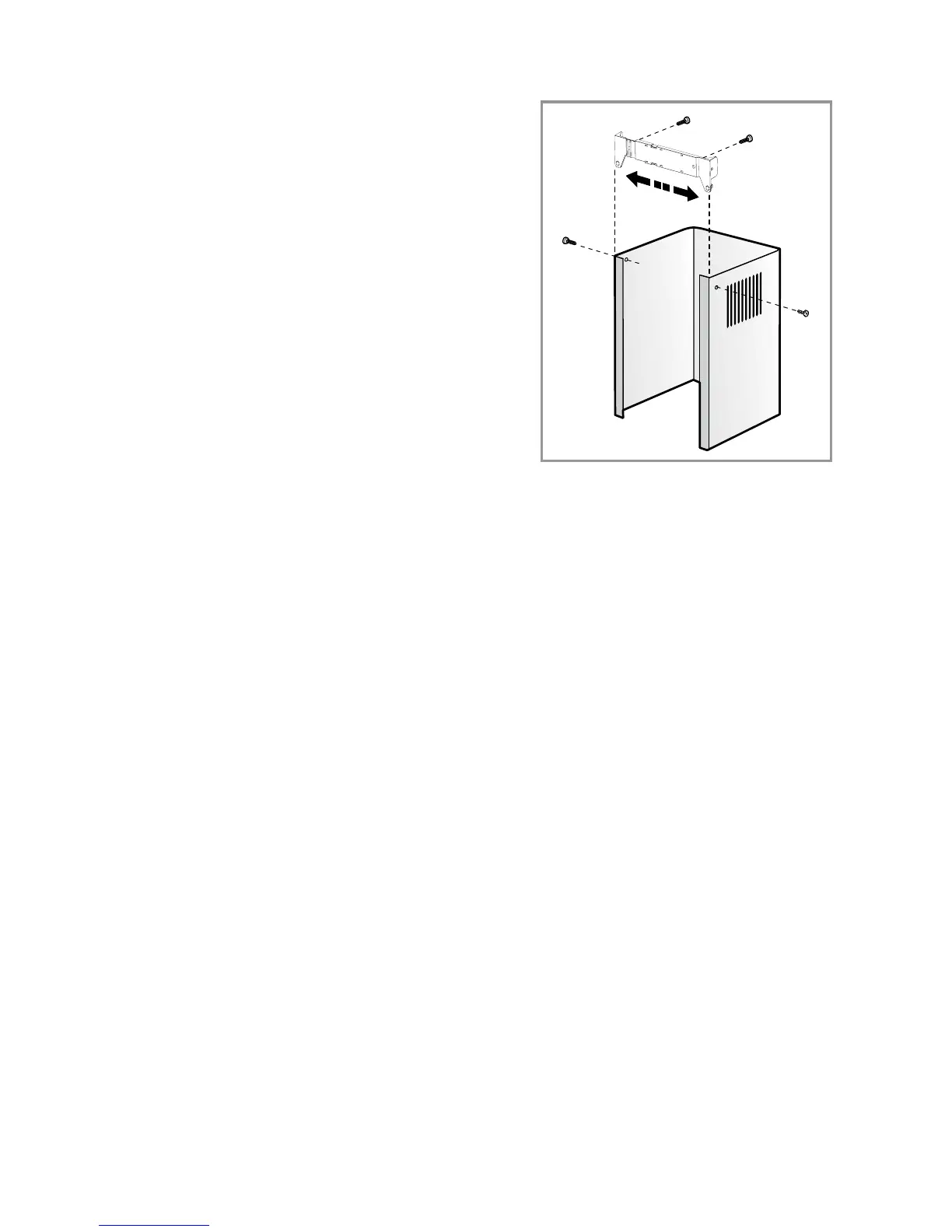

Fig. 8
Mounting the Chimney
Section
1. Adjust the width of the mounting
bracket to suit the chimney size of your
extractor and mark 2 points on the
wall, 20mm down from the ceiling for
the fixings (fig 7).
2. Drill and insert 2 plugs suitable for
use with the wall type into the holes
and fix the bracket with 2 screws.
3. Fit the chimney section and secure to
the mounting bracket with the supplied
screws (fig 8).
