Installation
The extractor is mounted to the wall
using 4 plugs and fixing screws, see
fig. 6.
1. Mark the wall with the positions of
the fixing holes at the required height.
The height of the hood holes should
take into account the minimum height
specified in the instructions.
2. Fit 4 wall plugs appropriate for the
wall type into the drilled holes and
fix two screws to the wall at positions
‘A’ and leave approximately 5mm
protruding.
3. Hang the hood and secure screws ‘A’.
Fix the hood in position using 2 screws
through the remaining mounting holes
shown.

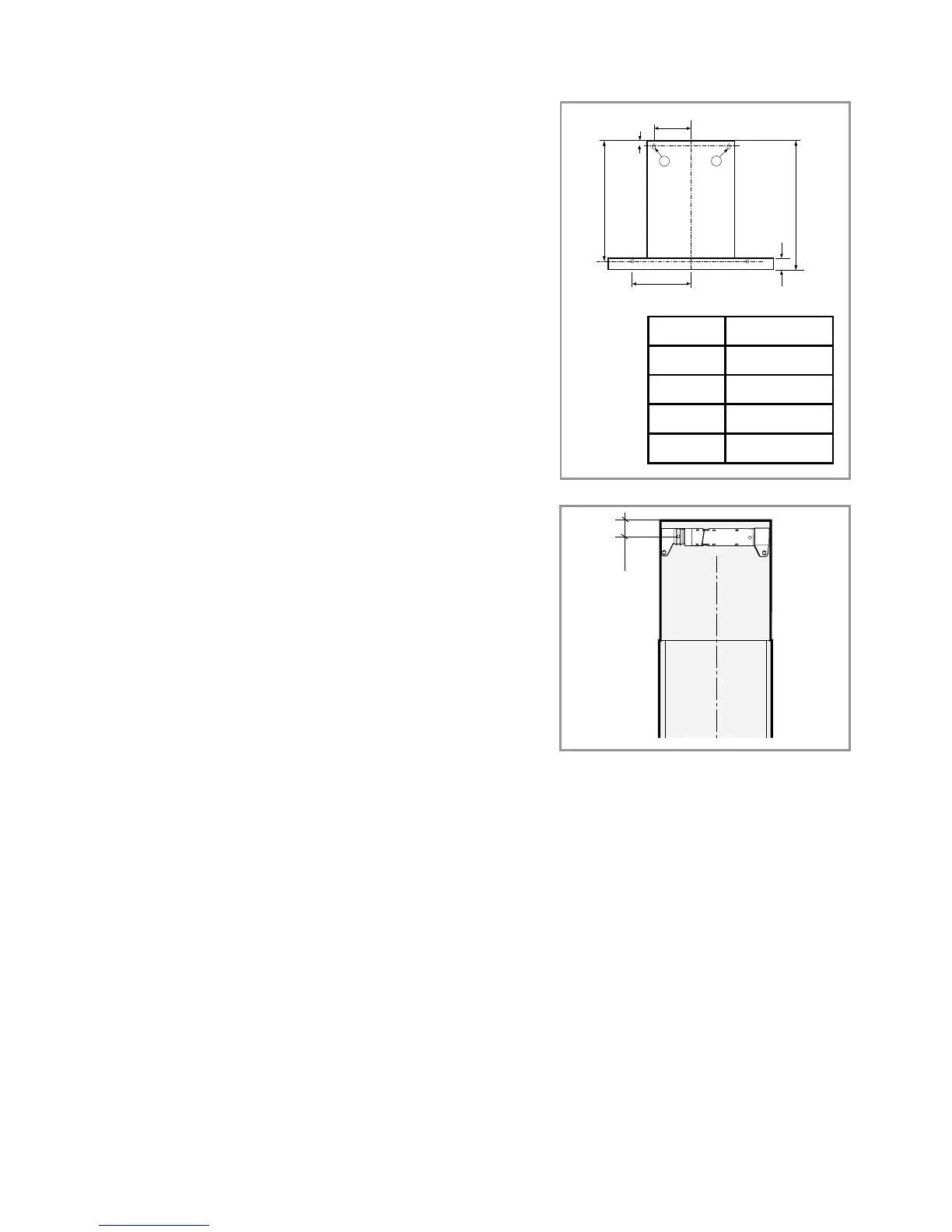

Fig. 7
