Instruction Manual | 15

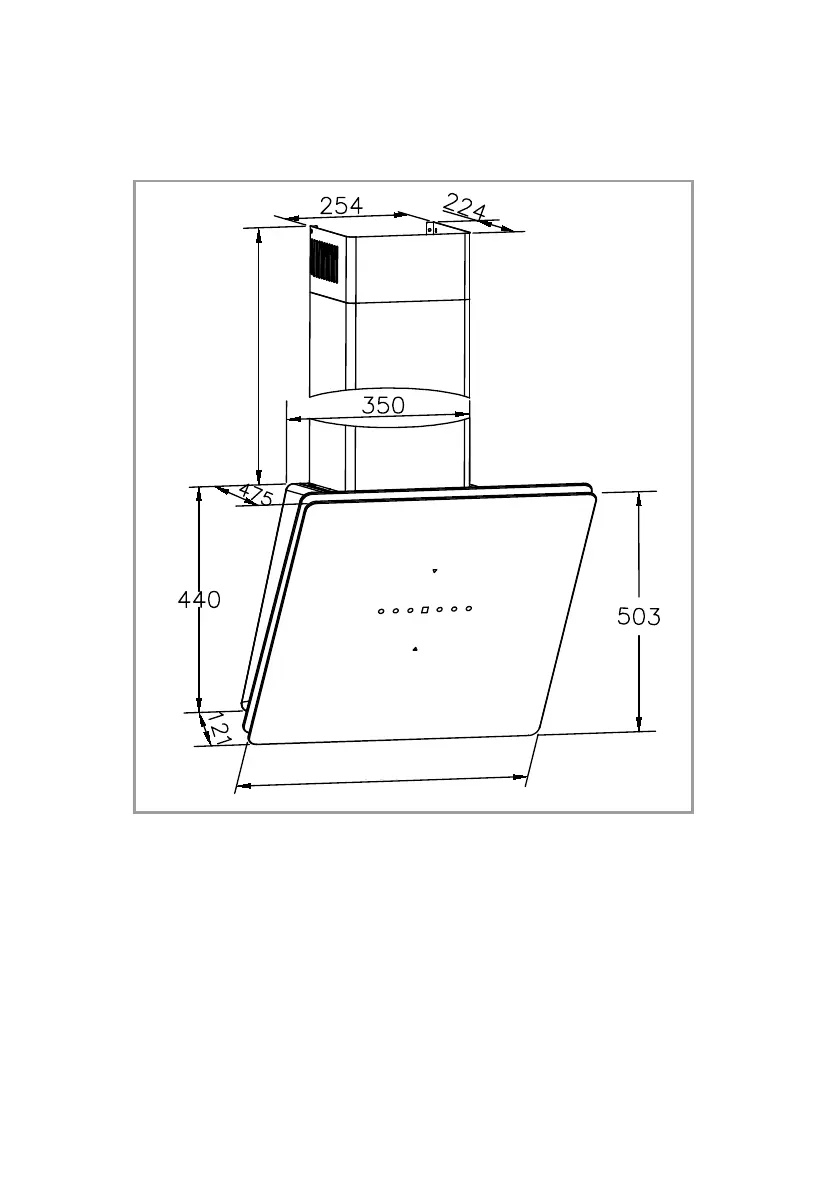

Below are images showing the extractor dimensions for both
models below. This is intended to help with preparation for
installing the extractor.
500-980
600 / 900
Taking into account the extractor dimensions, and the advice re-
garding installation height as per page 14, roughly mark the centre
line for the extractor.
Use the supplied template to finalise the extractor’s position before
using a pencil or similar to mark the mounting bracket and screw
hole positions.
Fig. 4
