Instruction Manual | 17
If you are using ducting to your extractor to ventilate the extracted
air outside now is the time to attach it. Place the ducting pipe over
the duct outlet at the top of the extractor. Use duct tape or a cable
tie to secure it. If you are recirculating the air back in to the room
no ducting is required.

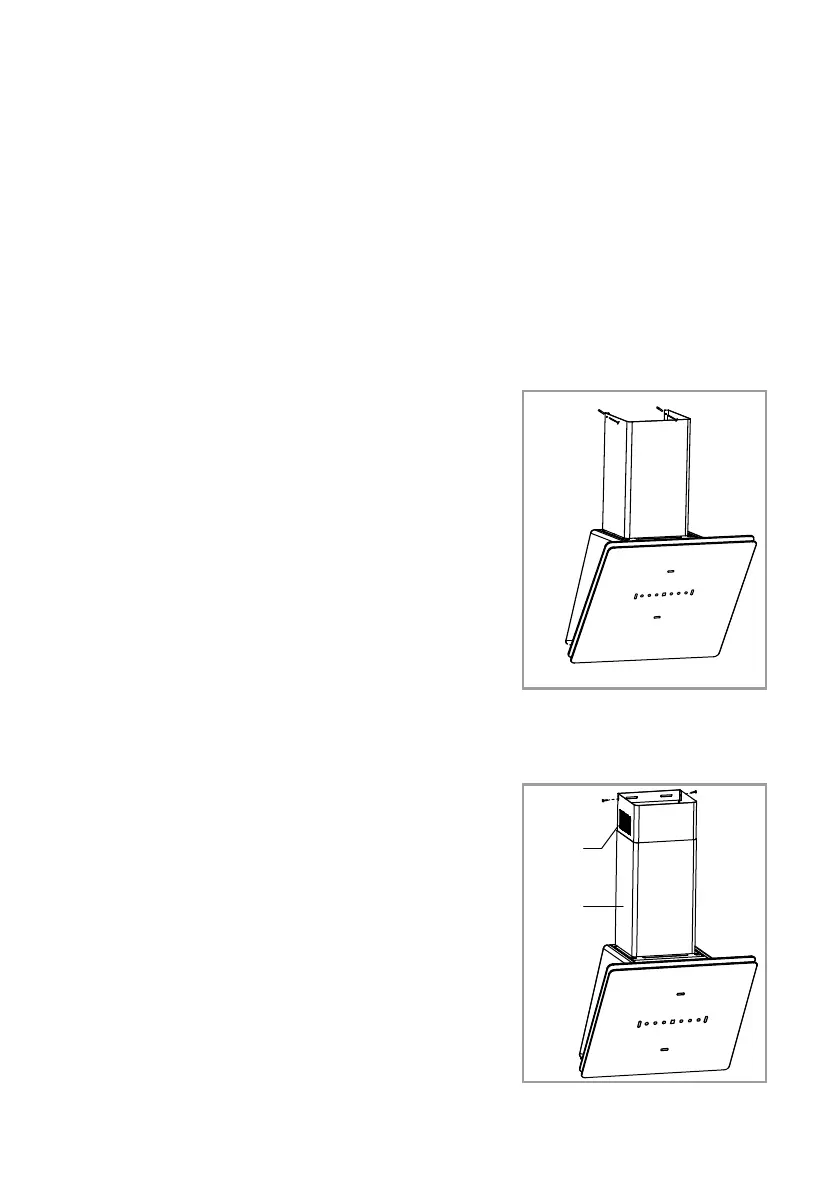

Place the bottom section of the decorative chimney over the duct
outlet and using a pencil or similar mark
through the holes at the top of the
chimney rail.
Drill two holes where you made the
markings and insert two wall plugs in
to the holes. You can now mount the
bottom chimney section as per Fig. 7.
Slide the top section of the chimney
through the bottom section and adjust
as necessary. Hold the chimney bracket
in place at the top of the top section as
shown in Fig. 8 and using a pencil or
similar, mark two holes against the wall.
Drill two holes and insert wall plugs. With
the chimney bracket in place insert two
screws through the bracket and into the
wall. Finally insert the last two screws
from the side of the chimney and through
in to the bracket.
Decorative
Chimney
Top
Decorative
Chimney
Bottom
Fig. 7
Fig. 8
