Installing the decor door

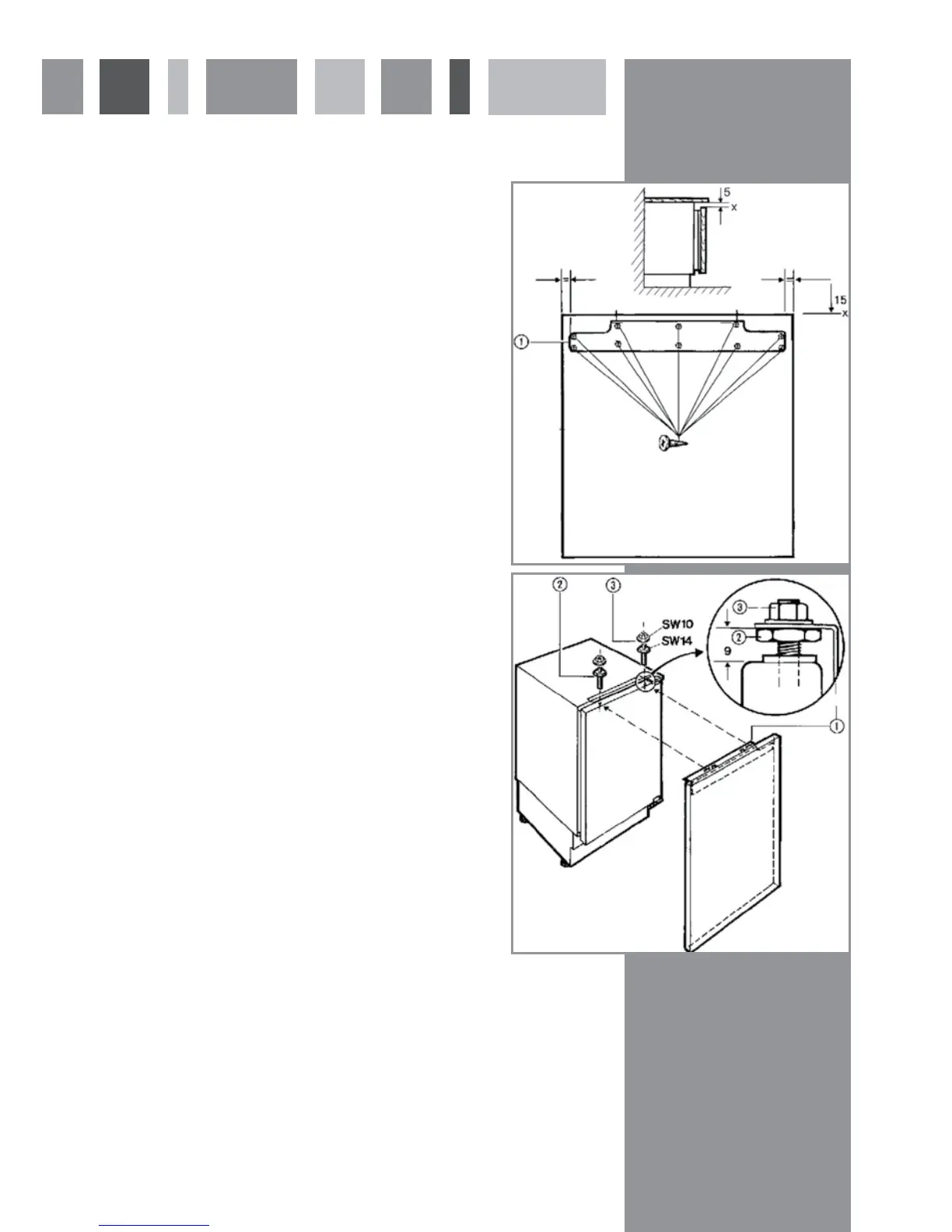

• Screw mounting bracket (1) onto decor door using the
screws supplied (as show in figure 4).
• Fit the correct side towards the hinges.
• Ensure there is a 5mm clearance between
the underside of the worktop and upper edge (X) of the
decor panel.
• Screw the four adjusting pins (2) fully into the
appliance door.
• Position the decor door on the appliance
door, introduce the locating pins at top into the
slots in the mounting plate and open out
according to detail in figure 5 (about 9mm).
