Installation

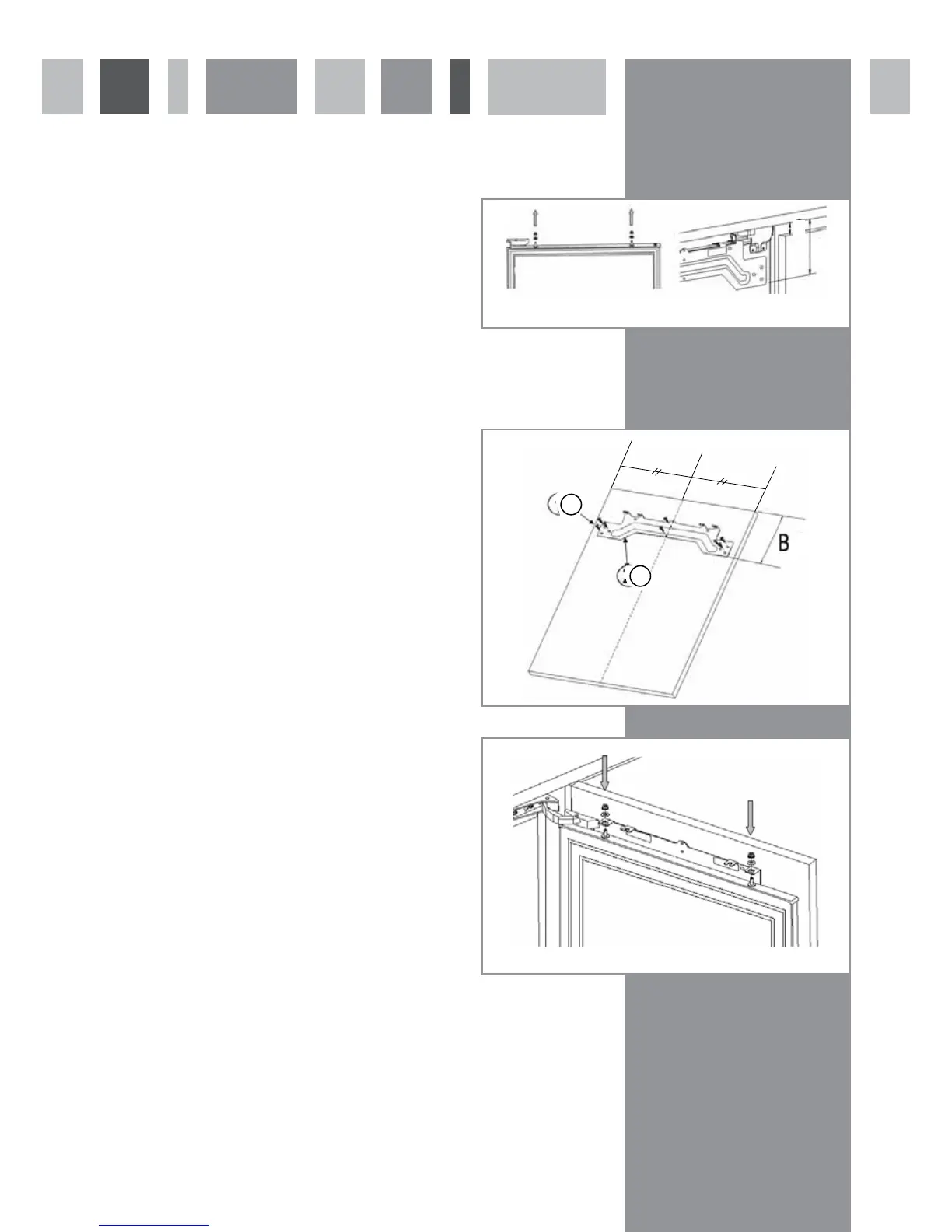

Fig. 9 - Fitting the decor door bracket
Unscrew and remove the nuts and washers from the appliance
door. Place fixing bracket on the appliance door by inserting
the holes to adjustment bolts.
Dimension B= Measure from the underside surface of kitchen
unit to the bottom of fixing bracket.
Dimension C= Measure from the underside surface of kitchen
unit to the top of next unit door.
Fig. 10 - Fitting the decor door bracket
Substract C from B and put the fixing bracket (2) in place using
this measurement for vertical position and place to the centre
for horizontal position. Secure the fixing bracket (2) using
screws(1).
Fig. 11 - Fitting the decor door
Place the decor door onto the appliance door by inserting
adjustment bolts into the slots on the fixing bracket. Locate the
washers and screw the nuts onto the adjustment bolts.
fig. 9
fig. 10
2
1
B-C
C
B
