fig. 8
Installation

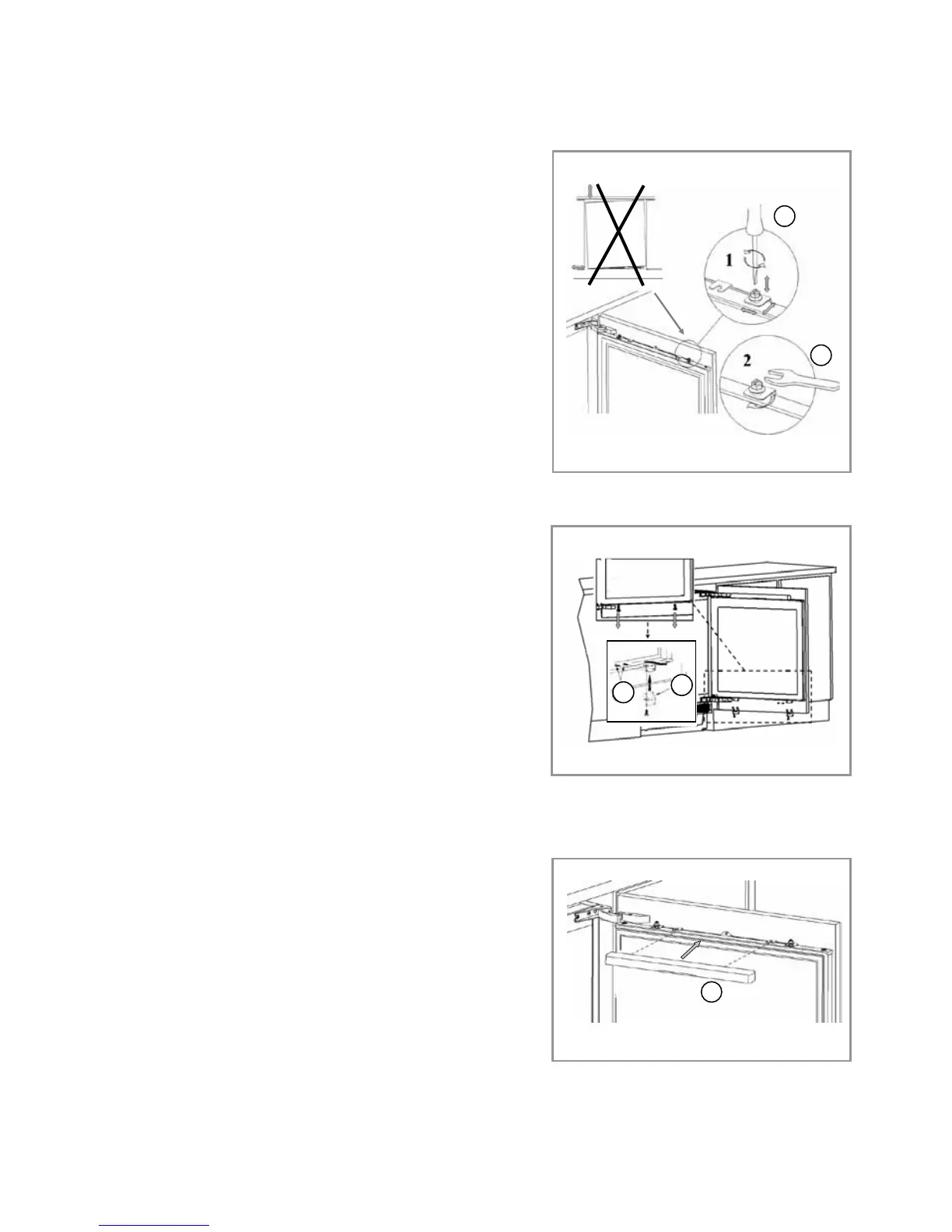

Fig. 6 - Aligning the decor door
Close the door and check the
alignment with the other unit doors.
Adjust the decor door by screwing or
unscrewing the adjustment bolts for
vertical adjustment and by the help of
the slots on the fixing bracket for other
directions. Lock the screws into place
as shown in 4.
Fig. 7 - Fitting the decor door base
xings
With the appliance door open, remove
the screws at the bottom of the
appliance door. Locate the decor door
base fixings (3) and screw the fixings to
the appliance door and the decor door.
Fig. 8 - Fitting the decorative cover
Fit the decorative cover (4) on the decor
door fixing bracket.
fig. 6
fig. 7
10
10
8
1
3
4
