Mounting the Fascia
Door

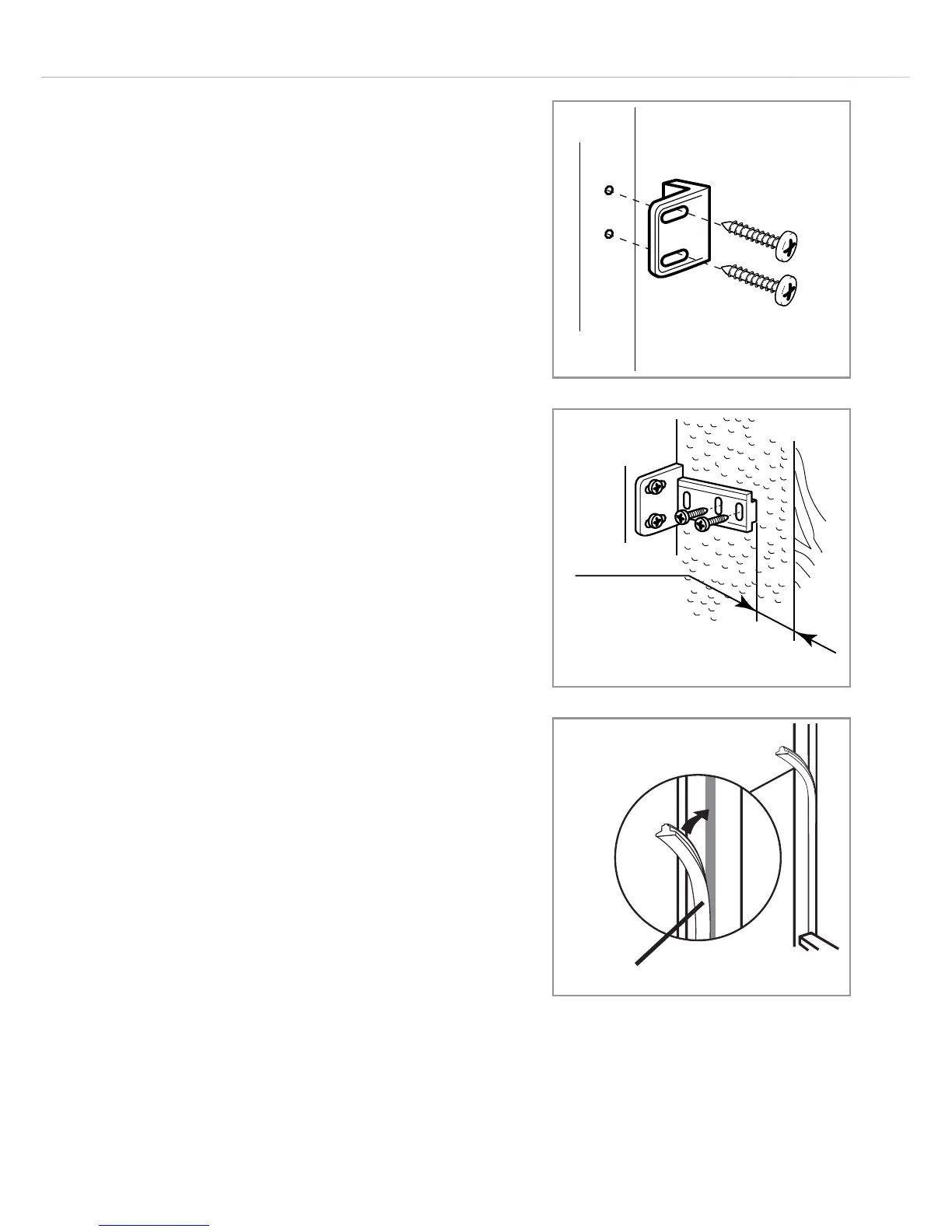

• Using a screwdriver, fix the mounting
brackets to the appliance door, as
shown in figure 5.
• Position the appliance within the unit.
Ensure that there is a gap of 3
to 4 mm between the non-hinged
side and the cabinet wall.
• Locate the slider in the bracket and fix
the slider to the fascia
door 20 to 22 mm from the edge of
the fascia as shown in figure 6,
ensuring that the slider is positioned
centrally and horizontally
within the bracket. Tighten securely
by hand.
• Fill the gap on the non-hinged side
with the seal strip provided, as
shown in figure 7.
fig. 5
fig. 6
fig. 7
20 mm
door gasket
x4
x4
