12
Adjusting the position of the fascia doors
The position of the fascia doors can be made in all 3 axes by following the
guide shown below (figure 18). If the range of adjustment detailed below is
not enough then the refrigerator is not located correctly in the cabinet and/
or the upper fascia fixing plates are incorrectly positioned.
Horizontal adjustment (Y):
1. Loosen the upper fixing plate nuts (B).
2. Slide the plate left or right as required; this gives approximately 5mm
of adjustment.
3. Tighten the fixing nuts to lock the fascia in position.
Vertical adjustment (X):
To adjust the vertical position of the door, use a 5mm spanner and turn the
height adjustment screw as required.
Depth adjustment (Z):
Ensure that the vertical and horizontal positions are correct before adjusting
the depth.
1. Loosen the depth adjustment screw (C).
2. Move the fascia in or out, as required; this gives an adjustment of
approximately 3mm. the lower fascia brackets are slotted to allow
alignment of the fascia at the bottom. This is shown in figure 19.

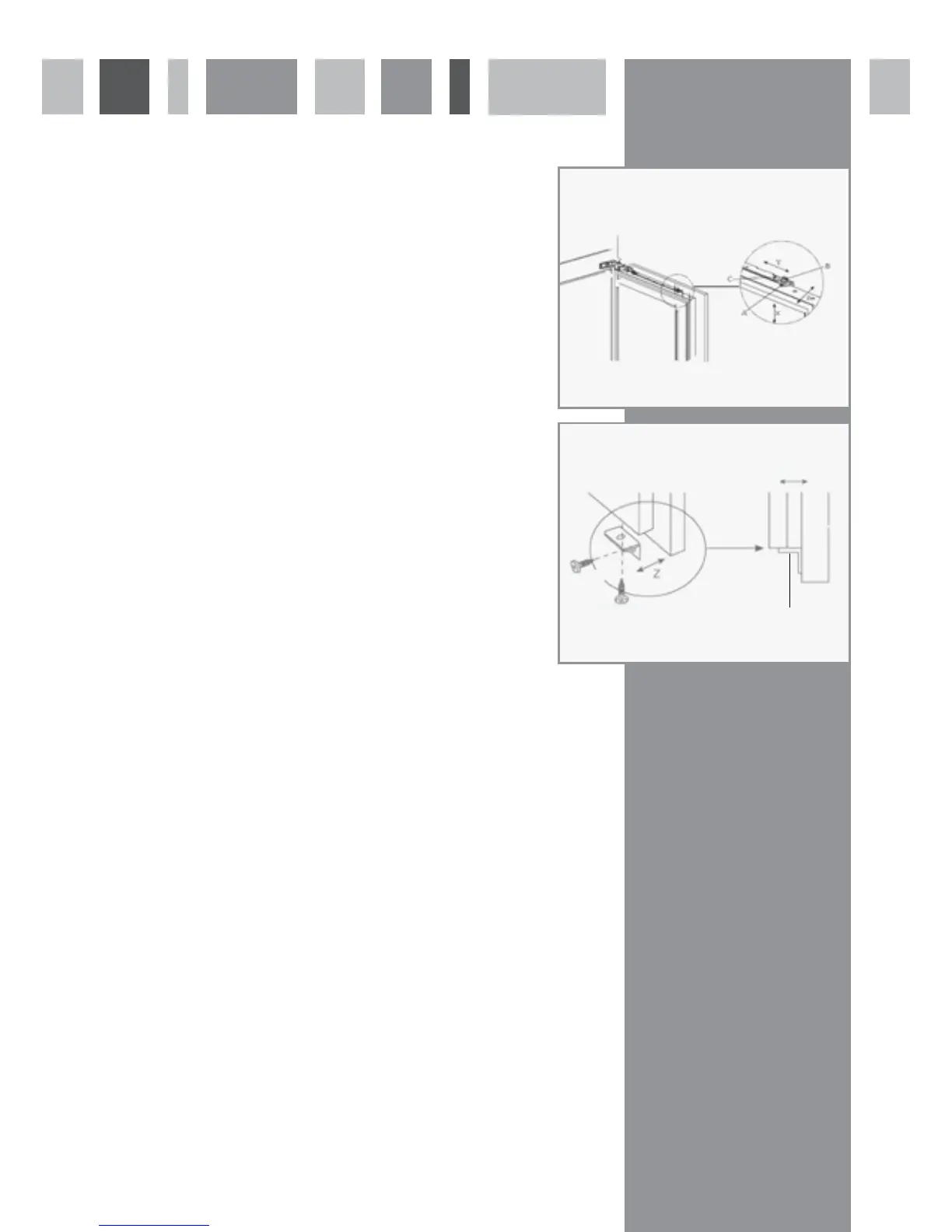

fig. 18
fig. 19
Cupboard door
Depth adjustment
