9. Position the product in the housing:
The product can now be pushed into the housing unit, ensuring that
the two guide pieces are fitted in the hinges and the guide is fitted
to the middle fixing bracket. When the guides (on both sides)
are flush against the front face of the cabinet sides the product
is at the correct depth in the unit.
At this stage ensure that the product is centrally aligned within
the housing and then remove the guide pieces (‘G’ in Figs. 8 and
9) from the hinges. Do this by opening the appliance doors and
removing them. Check too that the magnetic seal strips are still in
place. Now is the time to correct them if not.
10. Secure the product to the housing:
Secure the product to the housing at the hinge side by using
two screws in each hinge. Use the screws (8 are supplied in a
polythene bag) pictured in Fig. 11. The fixing holes in each hinge
are shown in figure 12 (with screws in place).

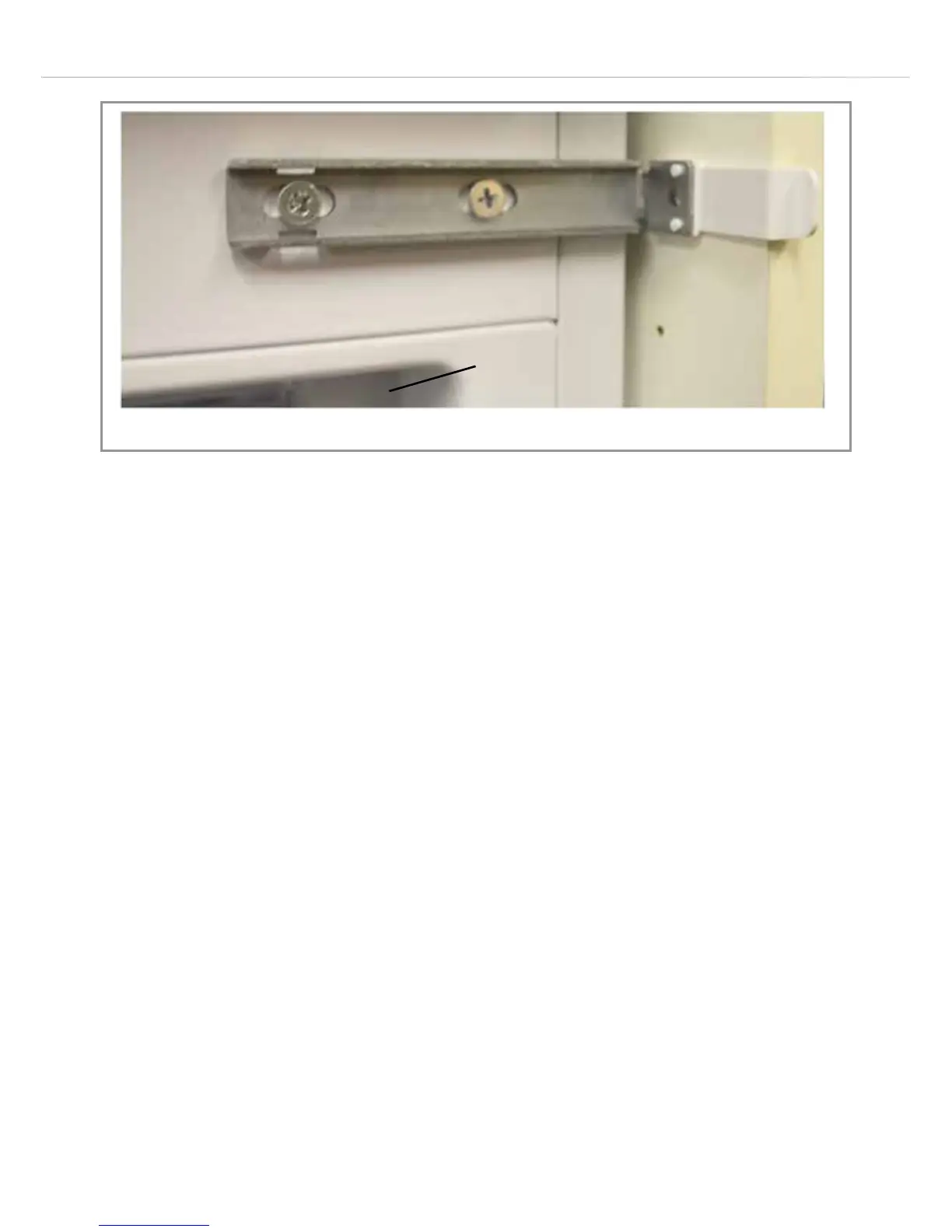

Fig. 10
Freezer section
