How to Install the Hob
Overall dimensions of the hob: Width: 770mm Depth: 520mm
Worktop cut-out dimensions: Width: 750mm Depth: 495mm
1. Make the required hole in
the worktop. Before doing
this, you must check the
instructions supplied with
any cooker hood to
ensure that you will have
the required clearance.
The cut-out (Fig.4) shows a
60mm gap from the wall to
the cut-out edge. The
distance from the hob,
when fitted, to the back
wall is 50mm. If a
splashback/worktop
upstand is to be fitted, take
this into account when
cutting the hole. The
minimum distance that the
hob should be
positioned away
from the rear wall
or splashback is
50mm.

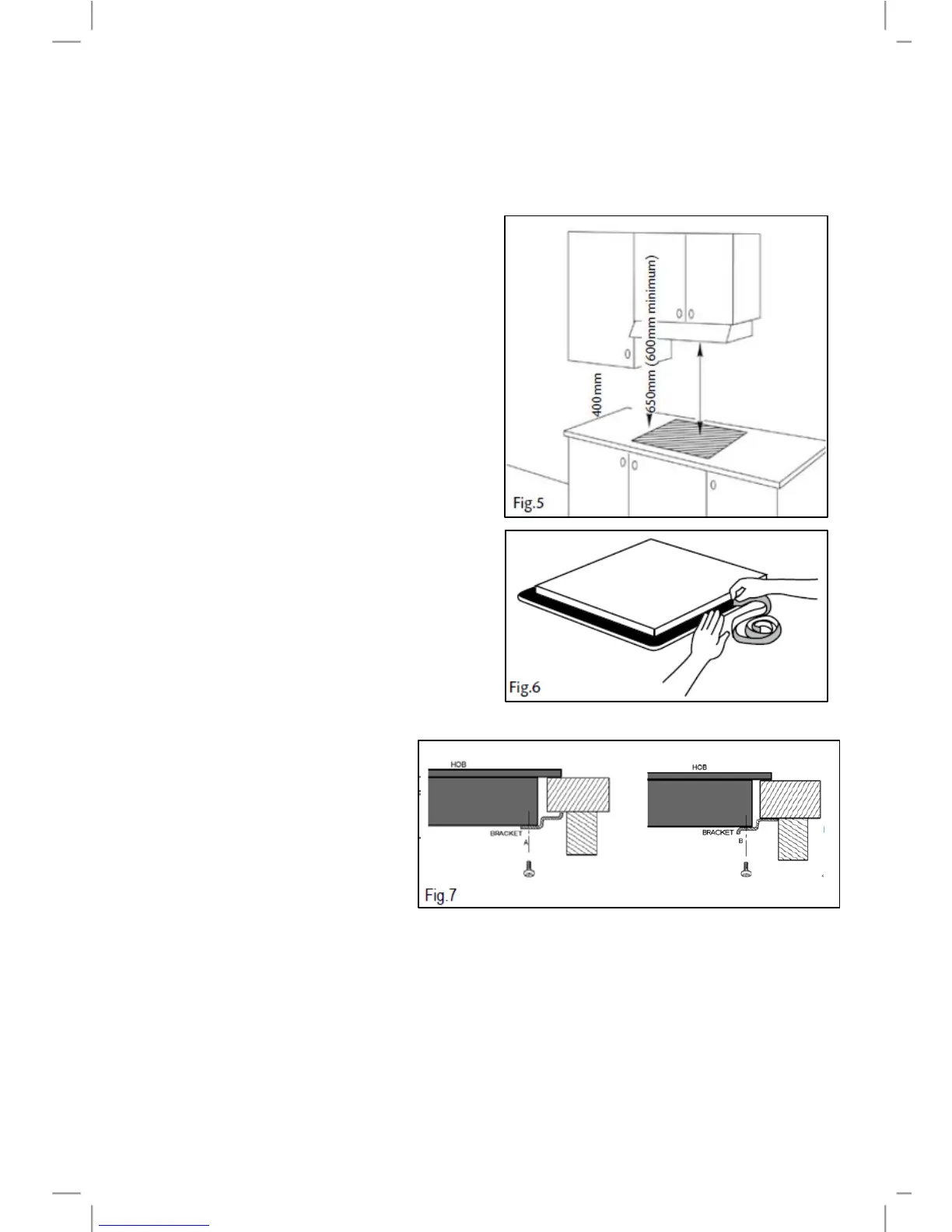

2. Position the hob
seal, as shown in
Fig.6, ensuring
that the ends meet without overlapping. Do not use
silicone type sealant.
3. Secure the hob to the worktop using brackets and screws
supplied, as shown in Fig.7. Remove any excess sealant
after tightening the brackets. Do not over-tighten the fixing.
