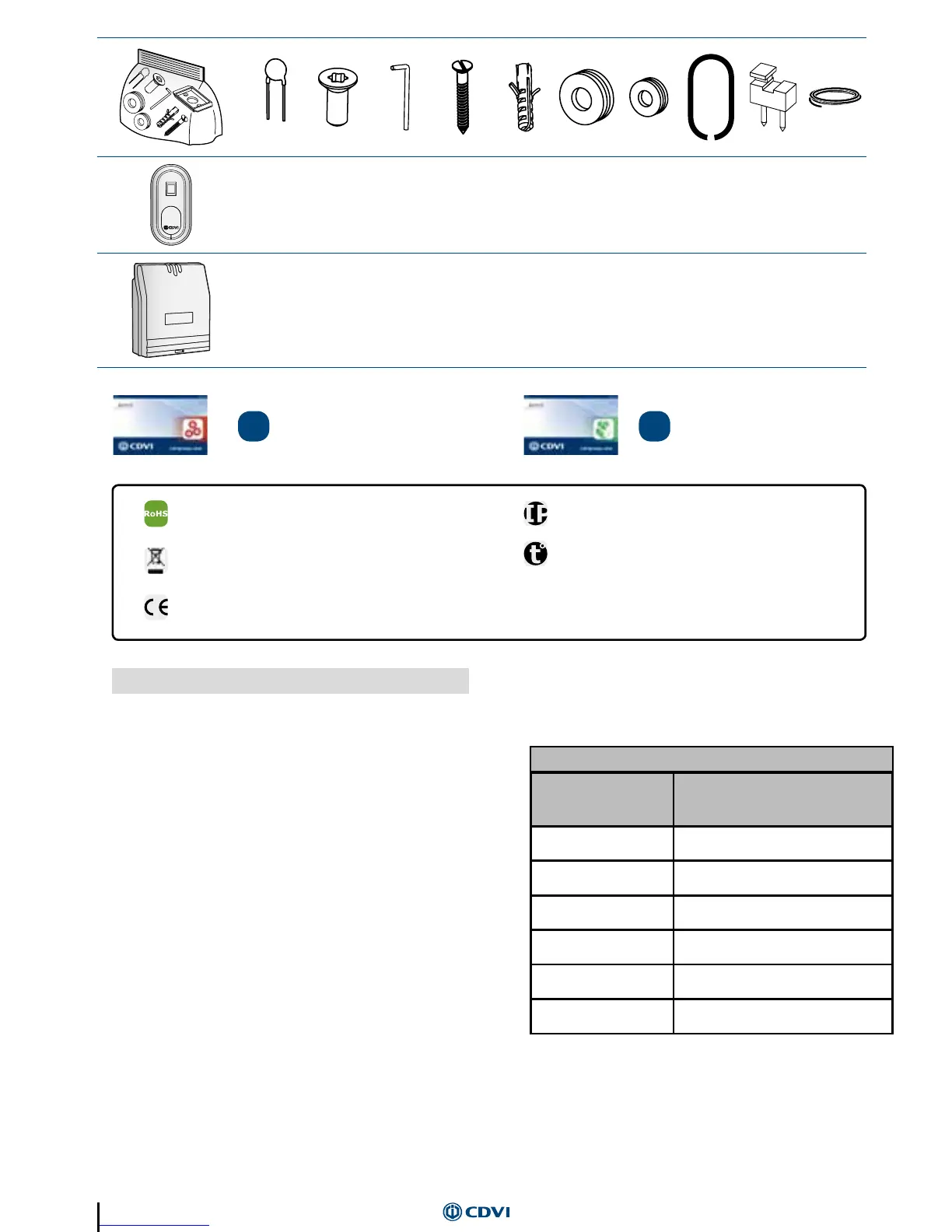

CDVI BIOSYS 1 Installation Manual

2
v
1 1 2 2
1 4 1
1 2 2 2 2
x1 x10
IP52
DEEE
-10°C to +50°C
The BIOSYS 1 product complies with
Directive 1999/5/CE
Wiring Reminder
The maximum distance between the controller
and the reader head is 50m.
Beware of mains (240Vac) connections.
Recommended cables> 3 twisted pairs (EIA-485
standard), 3P SYT 24 AWG.
Make sure the drain wire PE is connected.
Environment
The door controller must be installed internally.
The reader head must be installed in a sheltered
location from the weather.
Operating temperature range of -10°C to + 50°C.
Installation Recommendation
To limit back EMF spikes, the varistor must be
installed across the supply terminals of the lock.
Recommended power supplies (12 VDC)
Power supplies must be 12Vdc with a minimum
current provision of 1A. Please ensure you have
taken into account the power requirements of the
lock.
Power must be a limited power source, compliant
with EN 600950-1.
REMINDERS & RECOMMENDATIONS
Master Card
User Card
Part No: MASTERBIO Part No: USERBIO
LED
Colour
MODE
BLUE Standby
WHITE Finger detected
RED Access denied
GREEN Access granted
ORANGE Waiting for command
RED (ashing) Programming error
Surround Indicator LED’s
