4. System Connection

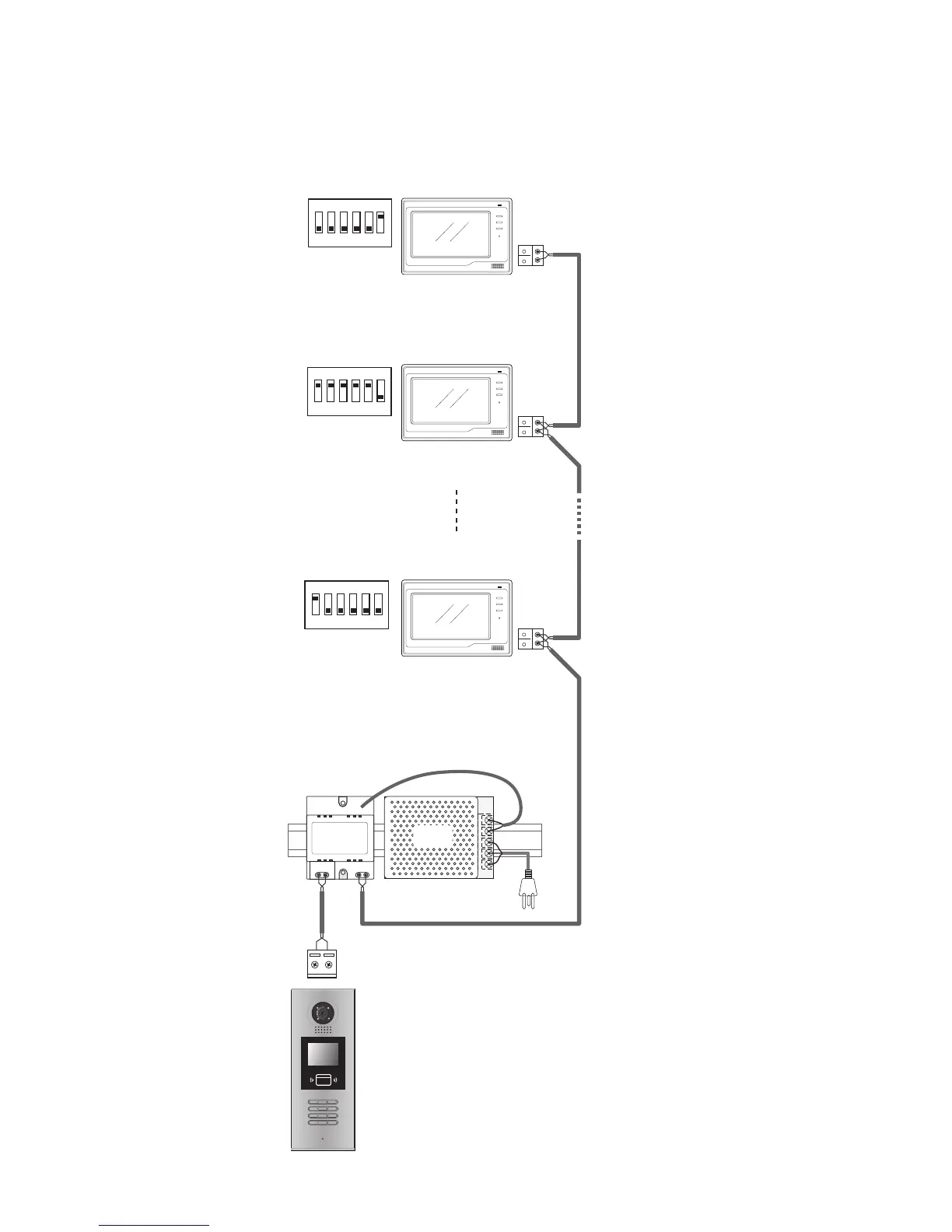

Basic IN-OUT Wiring:
Code=1, DIP-6=off
Code=31, DIP-6=off
Code=32, DIP-6=on
1 2 3
654
7 8 9
#0
*
RF CARD
1 2 3 4 5 6
ON
1 2 3 4 5 6
ON
85~260AC
DPS
PS5
1 2 3 4 5 6
ON
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
CALL
UNLOCK
TALK/MON
IN-USE
ID Code=0
(Please refer to section 6->part
3(About Debug Tools)->Basic Tools
Detail(table 2->ID Code) in details)
