GUARANTEE
The warranty period for this product is 60 months, beginning from the manufacturer date. During this period, if the product does not
work correctly, due to a defective component, the product will be repaired or substituted at our discretion. The guarantee does not
cover the plastic container integrity. After-sale service is supplied at the factory.
Fabricant de Contrôle d’Accès depuis 1985 Manufacturing Access Control since 1985
The installer’s choice
6

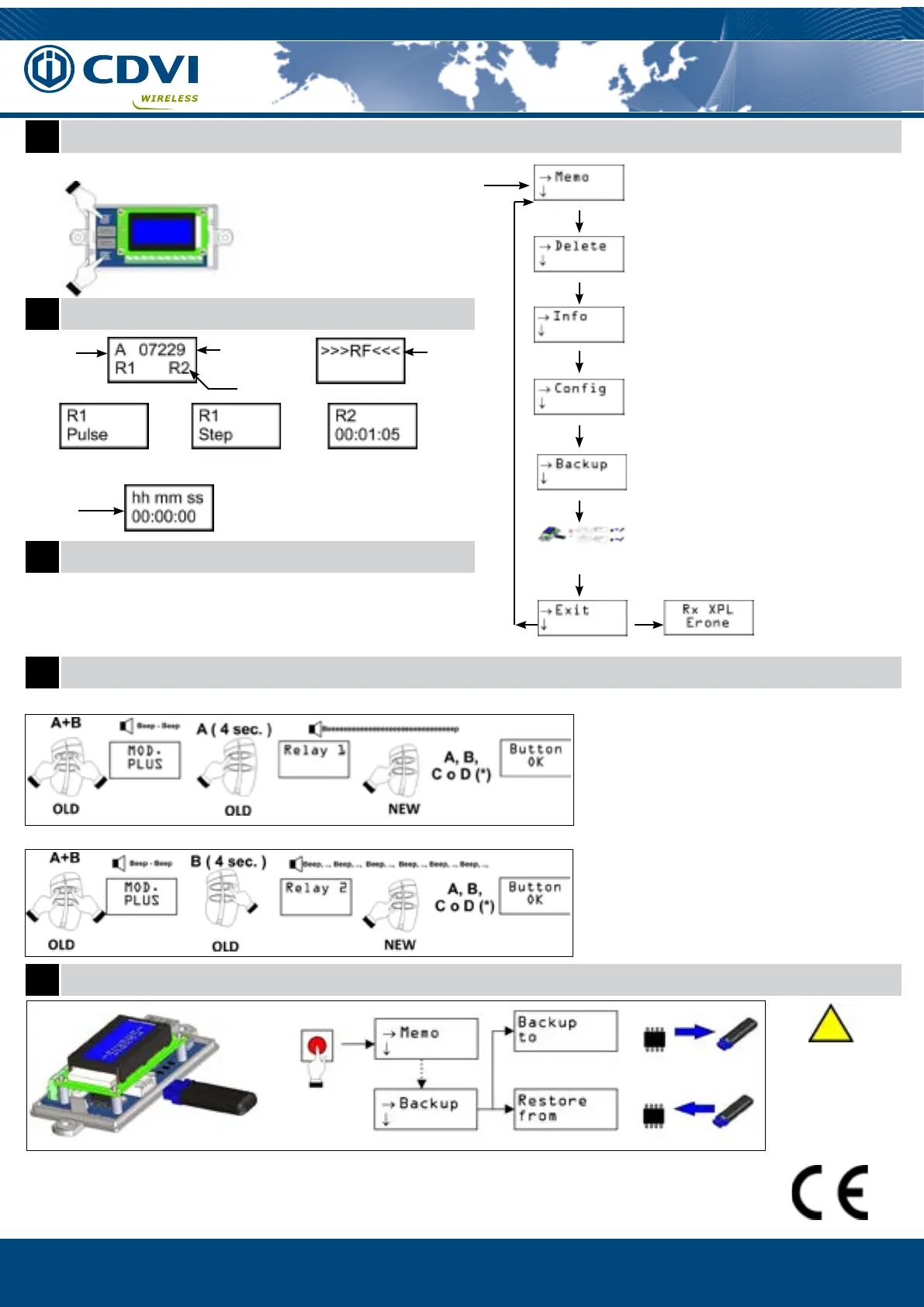

Programming / Navigation menu
7
Display Legend
8
Transmitter memorization
9
Memorization Plus
10
Copy / Restore
P1: Enters programming (hold for 4 seconds)
P2: Navigated through the menu
P1: Conrms selected option
There are 2 methods available:
1) Using P1 and P2 throughout the menu
2) Remote from the receiver, using a transmitter already in the
receivers memory (Mode PLUS ).
(*) : Push the button of the new transmitter before the end
of the beep.
If the option “Plus Limited” is set, the rst transmitter
memorized will be the MASTER.
If the option “Plus OFF” is set, the remote memorization is
disabled.
If the option “Plus ON” the remote memorization
of a new transmitter can be done using any transmitter
already in memory.
The memorization PLUS is active only if there is, at least,
one transmitter in the memory.
If the memory is empty the memorization of a new tran-
smitter can be done both using P1-P2 and remotely.
Once memorized the rst, any next transmitter can be
stored remotely if the option PLUS is “ON” or “Limited” or
always using P1 and P2.
The factory default for the relay time
is 1 second. Use P2 to scroll the digits
and P1 to conrm.
Relay 1 : Pulse Relay 1 : Step Relay 2 : Timed
Menu
Timed
Programme TX on relay 1
Programme TX on relay 2
P1 (4 sec.)
P2
P2
P2
P2
P2
P2
P2 P1
Memo: Add transmitters s/n
Delete TX : Delete a transmitter
Delete Button : Delete the button of a transmitter
Delete by List : Delete a transmitter from a list
Delete All TX : Delete all transmitters
Delete setting : Reset to factory default
Info relays : Display relays operating mode
Info N. Tx : Display number of Tx memorized
Info List : List of Transmitters
Info Version : SW release.
Cong relay 1 :
- Set relay 1 operating mode ( pulse , step, timed )
- Set delay time of relay 1
Cong relay 2 :
- Set relay2 operating mode ( pulse , step, timed )
- Set delay time of relay 2
Backup to : Data backup to an external memory
Restore from : Data restore from an external memory
Plus ON : Enable remote transmitter memorization
Plus Limited : Enable remote transmitter memoriza-
tion only using a TX «master» ( First TX stored )
Plus OFF : disable remote transmitter memorization
!
(*) Attention : this operation
will overwrite all data of the
internal memory
Internal
Internal
External
External
MEM.
MEM.
MEM.
MEM.
Save
Restore (*)
P1( 4 sec.)
Backup
Memory
Plug-in the memory in the
proper receiver connector
Fig.6
Manufactured by : CDVI WIreless SPA - Via Piave, 23 - 31020 S.Pietro di Feletto (TV) - Italy
Button
activated
TX Serial
number
Relay activated
TX valid not
in memory
Fig.4
Fig.5
