CDVI SOLARKPB - Ark 8 Bits Output Format; LED Configuration on Centaur System

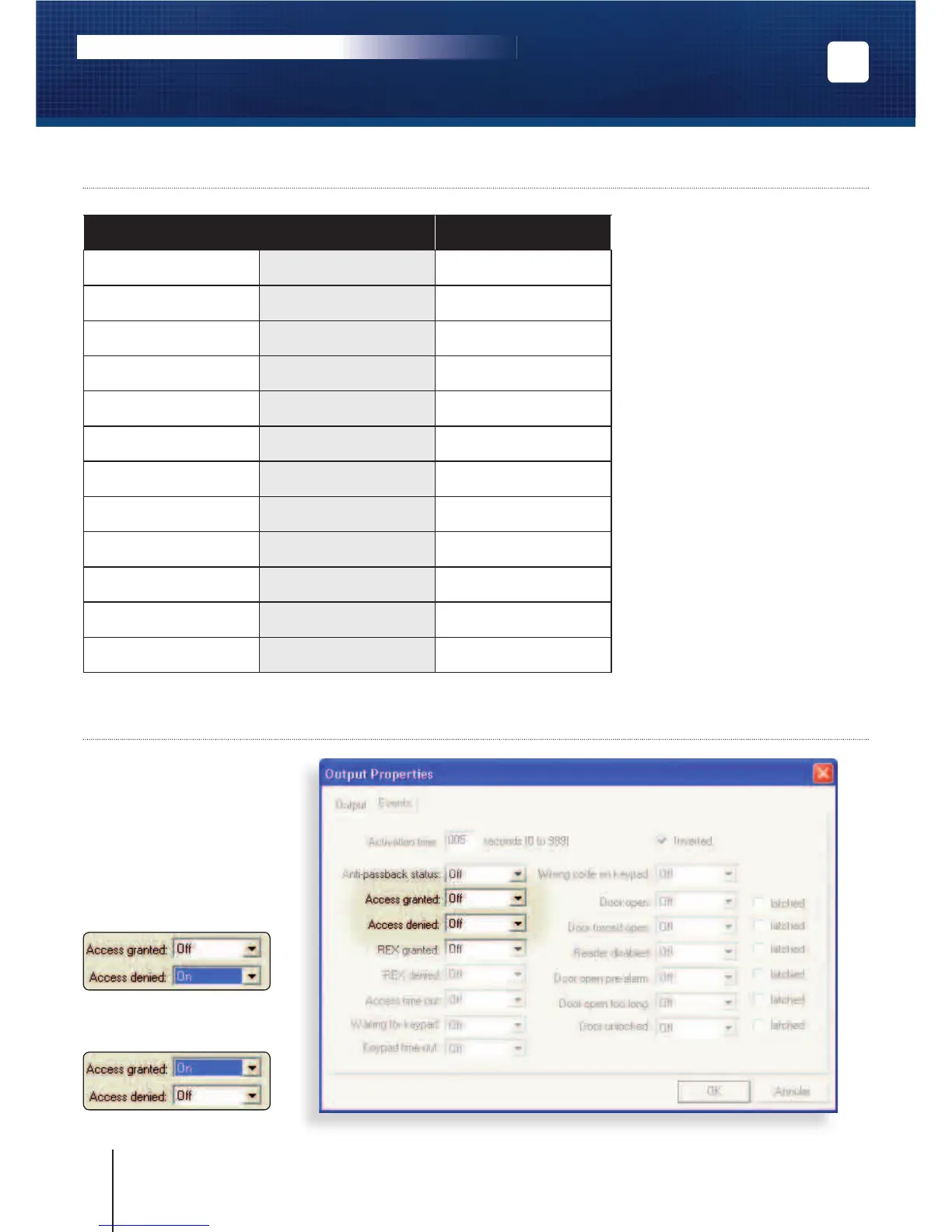

12] LED CONFIGURATION ON CENTAUR SYSTEM
GREEN LED
SETTINGS
RED LED
SETTINGS
LED ACTUATION :
GREEN
ACCESS ALLOWED
RED
ACCESS DENIED
BLUE
STAND-BY
* In Digicode
®
keypad mode only or Proximity mode only.
11] ARK 8 BITS OUTPUT FORMAT
Keypad input Hexadecimal Binary Datas
0 FO 11110000
1 E1 11100001
2 D2 11010010
3 C3 11000011
4 B4 10110100
5 A5 10100101
6 96 10010110
7 87 10000111
8 78 01111000
9 69 01101001
*
ou A
5A 01011010
#
ou B
4B 01001011
6 cdvigroup.com
EN
SOLARKPW-SOLARKPB
Dual Technology Digicode
®
/Proximity reader - Wiegand
INSTALLATION MANUAL
