CDVI V3SR - General Information and Recommendations

EN
V1SR - V3S - V3SR - V3SRB - V4S - V4SR - V4SRB - V5S - V5SR - V5SRB
Surface mount Electromagnetic locks
INSTALLATION MANUAL

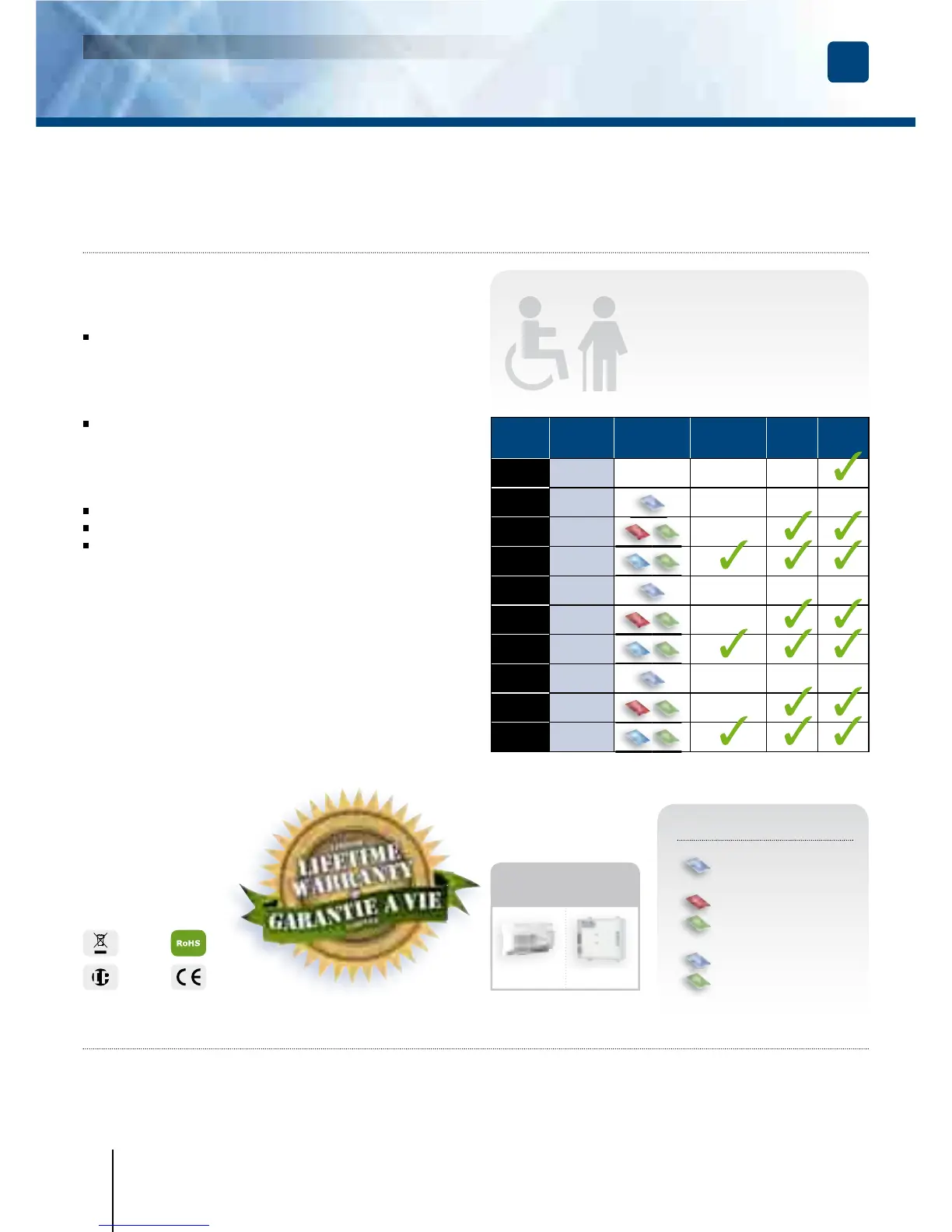

1] PRODUCT PRESENTATION
The V3S, V4S and V5S series
with signalling are suitable for
the new regulations covering
assistance to persons with
reduced mobility.
Thank you for buying our products and for the confi dence you placed
in our company.
180, 300, 400 or 500kg**.
Electronic protection
to eliminate back EMF.
Electromagnetic lock dimensions (L x W x D):
- V1SR = 167 x 34 x 21mm.
- V3S series = 248 x 45 x 26mm,
- V4S series = 255 x 50 x 27mm,
- V5S series = 266 x 66 x 40mm.
Armature dimensions (l x w x d):
- 180kg = 130 x 32 x 9mm,
- 300kg = 185 x 38 x 11mm,
- 400kg= 185 x 45 x 12mm,
- 500kg = 185 x 60 x 12mm.
Silent operation.
Power supply: 12/24V dc.
Power absorption:
- 12 V DC = 550mA,
- 24 V DC = 275mA.
Refs
Holding
force
Visual
feedback
Audible
feedback
Relay
Moni-
tored
V1SR 180 kg
- - -
V3S 300kg
- - -
V3SR 300kg
-
V3SRB 300kg
V4S 400kg - - -
V4SR 400kg
-
V4SRB 400kg
V5S 500kg - - -
V5SR 500kg
-
V5SRB 500kg
EC certifi cation
WEEE
IP42
cdvi.com
cdvigroup.com
COLOUR CODES
BLUE ACTIVE VOLTAGE
RED LOCKED
GREEN OPEN
BLUE LOCKED
GREEN OPEN + BUZZER
RoHS
ARD212 BS60
Recommended
power supplies
* Refer to limited lifetime warranty conditions.
** Depending on the version.
2] REMINDERS AND RECOMMENDATIONS
The function of an electromagnetic lock is to ensure the locking of an access point. This document is a guide
of installation which will allow you to secure the installation according to the characteristics of the product,
the site and the environmental requirements.
