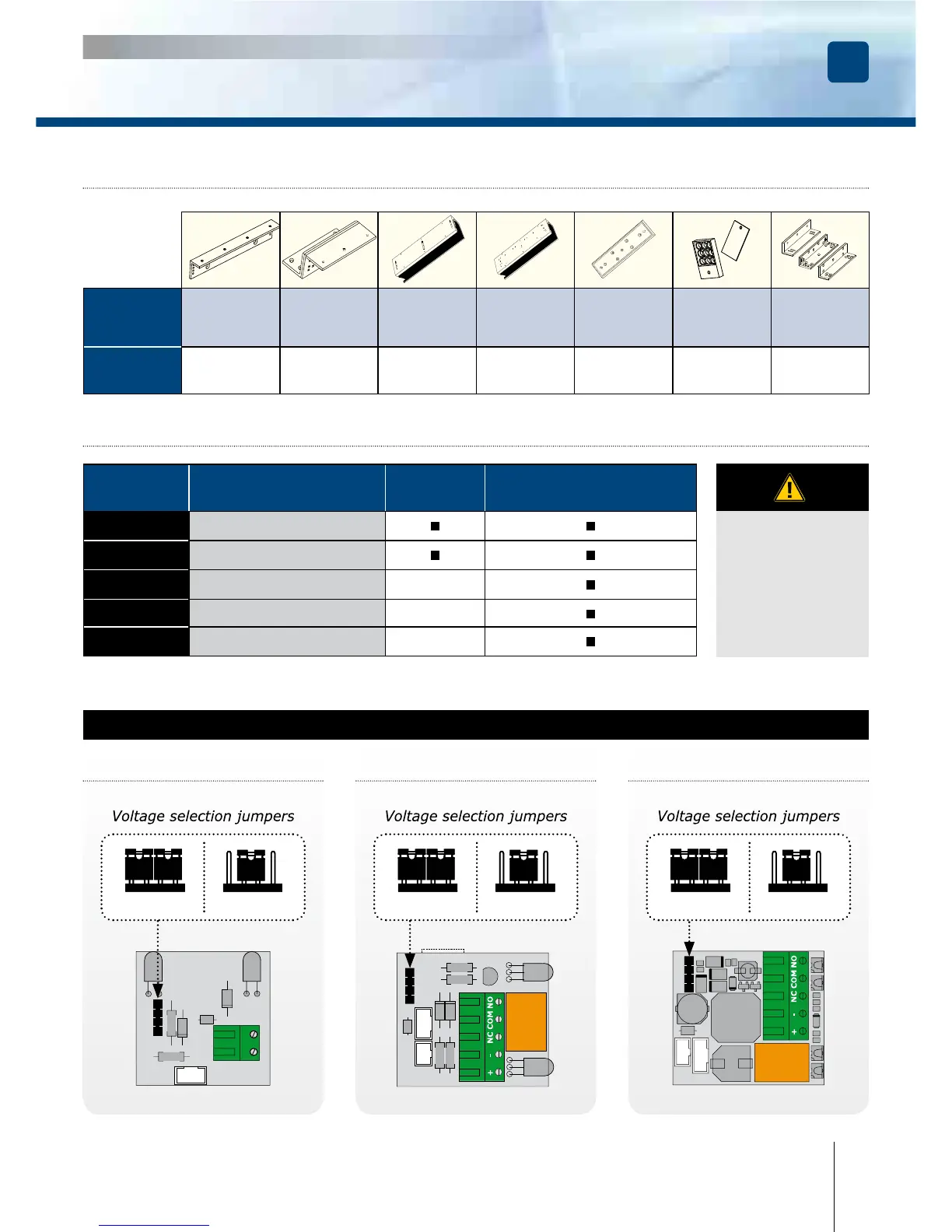

5] ELECTRICAL CONNECTIONS
The NO/NC signal only switches when the door is closed with the power to it on.
TERMINAL
BLOCK
CORRESPONDENCE
V3S
V4S - V5S
V3SR - V3SRB - V4SR
V4SRB - V5SR - V5SRB
+ 12 or 24V dc
- - 0 V
N.C NC (Normally closed) -
COM COM -
N.O NO (Normally open) -
WITH BUILT-IN PCB BOARD
12V dc
Factory
Setup
12V dc 12V dc24V dc 24V dc 24V dc
Voltage selection jumpers
Voltage selection jumpers
Voltage selection jumpers
5
cdvi.com
cdvigroup.com
4] OPTIONAL ACCESSORIES
References
L3L4L5 Z3Z4Z5 UBKU UBKP AMA3AMA5
DPM300
DPM500
LZ1
Description
L-shaped bracket
for lock
Z-shaped bracket
for lock
Armature base
for glass door
Universal base
for glass door
Armature base
Door position
monitoring
L & Z-shaped
bracket
for 180kg lock
V3S - V4S - V5S V3SR - V4SR - V5SR V3SRB - V4SRB - V5SRB
-+
Surface
mount
magnetic
lock
Armature
plate
Fixing
plate
Roll pin
5x16
Steel
washer
4x25
wood
screw
Key
3mm
Key
5mm
1 1 1 2 2 7 1 1
M8x35
screw
M8x25
screw
3x8
self-tapping
screw
Guide
piece
Cap
nut
Safety
rope
Rubber
washer
Installation
manual
1 1 1 1 1 2 1 1
