8 Cecilware
®
Hot Water Dispensers

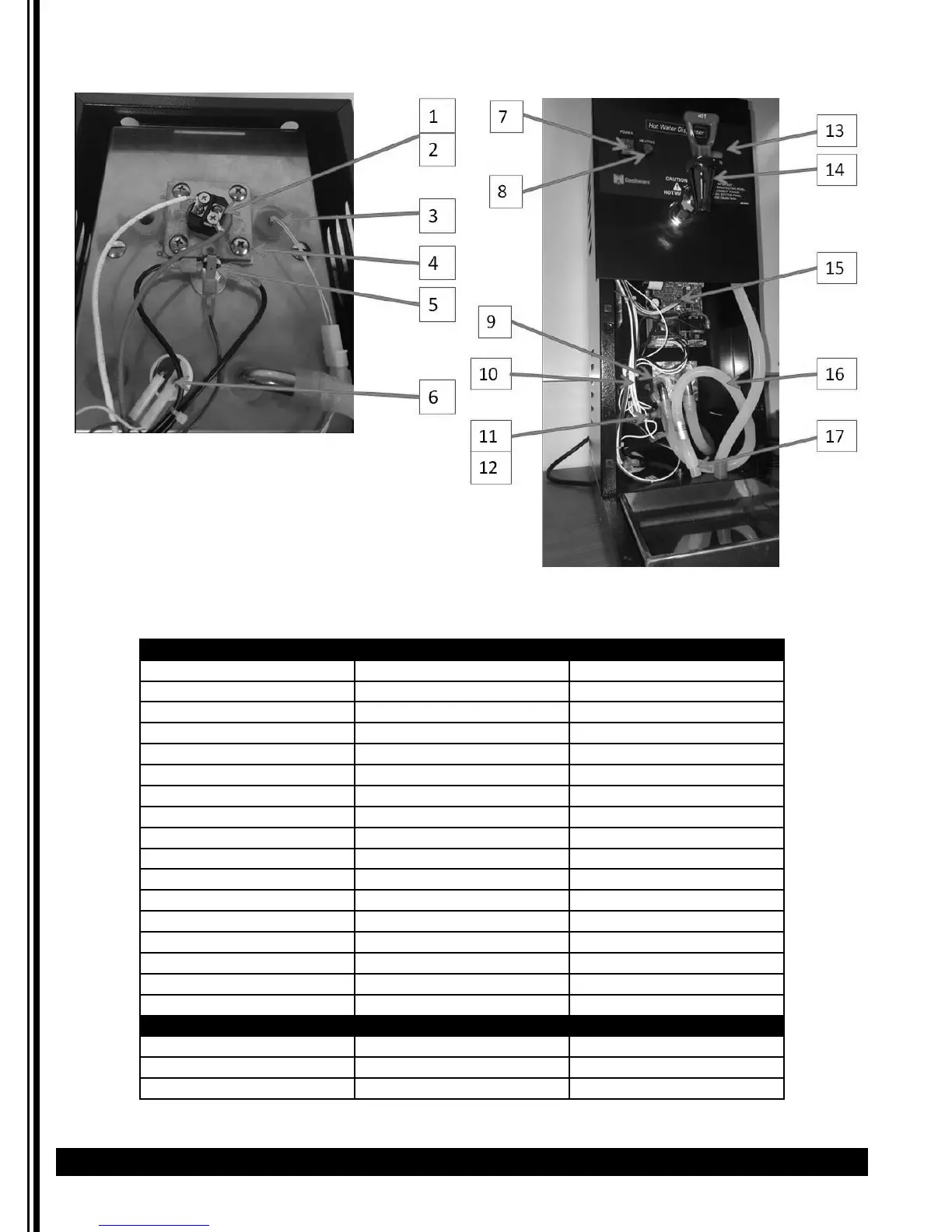

Parts Diagram
LOCATION PART NUMBER DESCRIPTION
1 G267TL ELEMENT 120V, 1700W
2 G281A ELEMENT 240V, 3000W
3 61128 THERMISTOR PROBE
4 K661AL HEAT SINK
5 L573AL HI-LIMIT SWITCH
6 K695QL LEVEL SENSOR DUAL
7 L155AL POWER SWITCH
8 C165AL LIGHT HEATER
9 M461AL SILICON SEAL 12MM
10 60105CWL TERMINAL BLOCK
11 280-00075 INLET VALVE 120V
12 280-00076 INLET VALVE 240V
13 M461A SILICONE SEAL
14 348-00034 DISPLAY REMOTE
15 80234L FAUCET
16 349-00012 CONTROL BOARD
17 M326AL 3/8 SILICONE TUBING
Not shown:
SA73A DRIP TRAY GRILL
61479 STRAIN RELIEF
343-00127 RIBBON CABLE
To Next Page
