Side Joist ISO
2 x Side Joist 2 x 2 x 40-1/4”

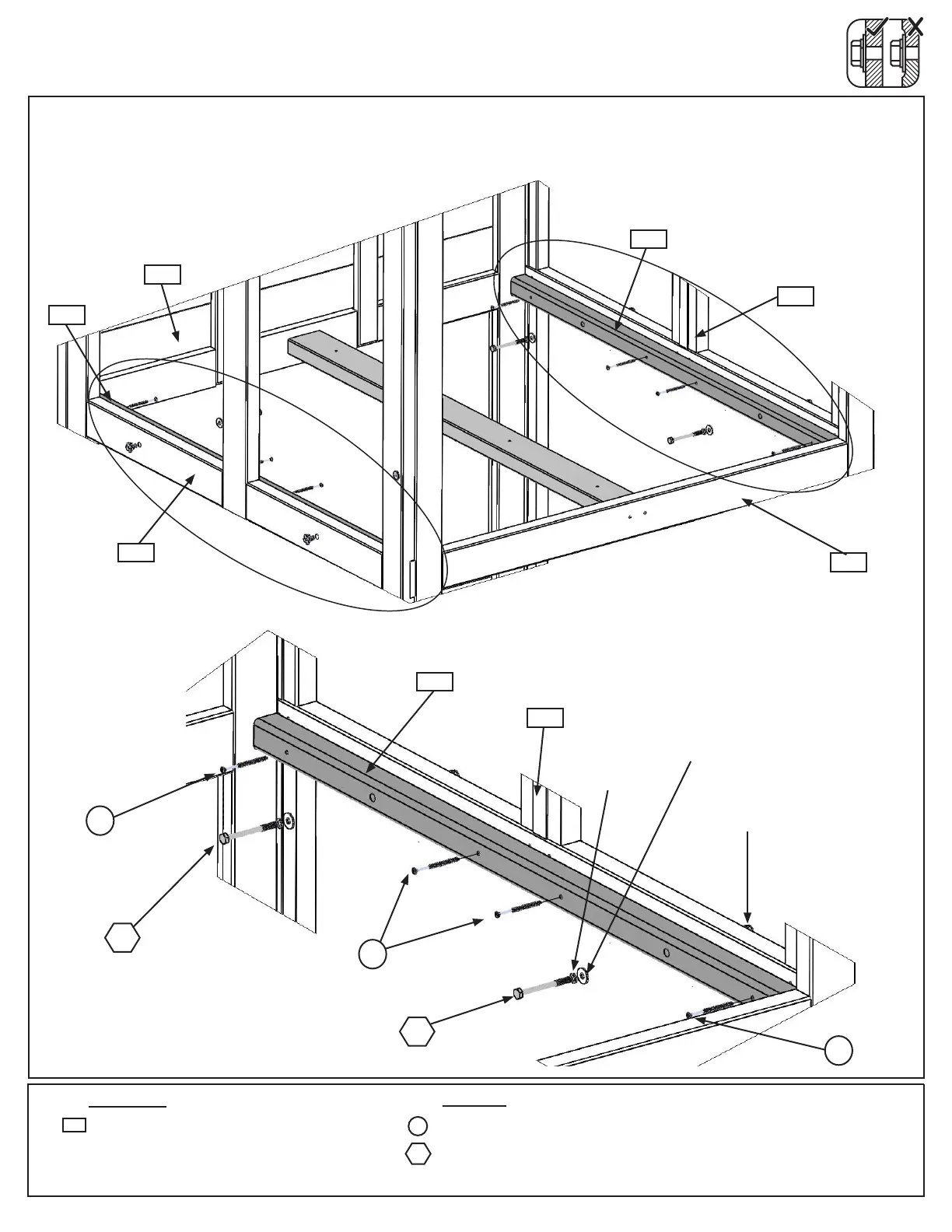

B: On both (2618) Front Back Panels attach 1 (2610) Side Joist to the inside of each panel with 2 (H11) 1/4 x
2-3/4” Hex Bolts (with lock washer, at washer and t-nut) and 4 (S3) #8 x 2-1/2” Wood Screws as shown in g.
3.4 and 3.5.
Step 3: Floor Assembly
Part 2
2610
Wood Parts
Fig. 3.4
2610
2627
2618
Fig. 3.5
2622
S3
8 x #8 x 2-1/2” Wood Screw
4 x 1/4 x 2-3/4” Hex Bolt
(1/4” lock washer, 1/4” at washer, 1/4” t-nut)
Hardware
S3
1/4” T-Nut
1/4” Flat
Washer
1/4” Lock
Washer
H11
H11
H11
2618
2610
S3
S3
2610
2618
