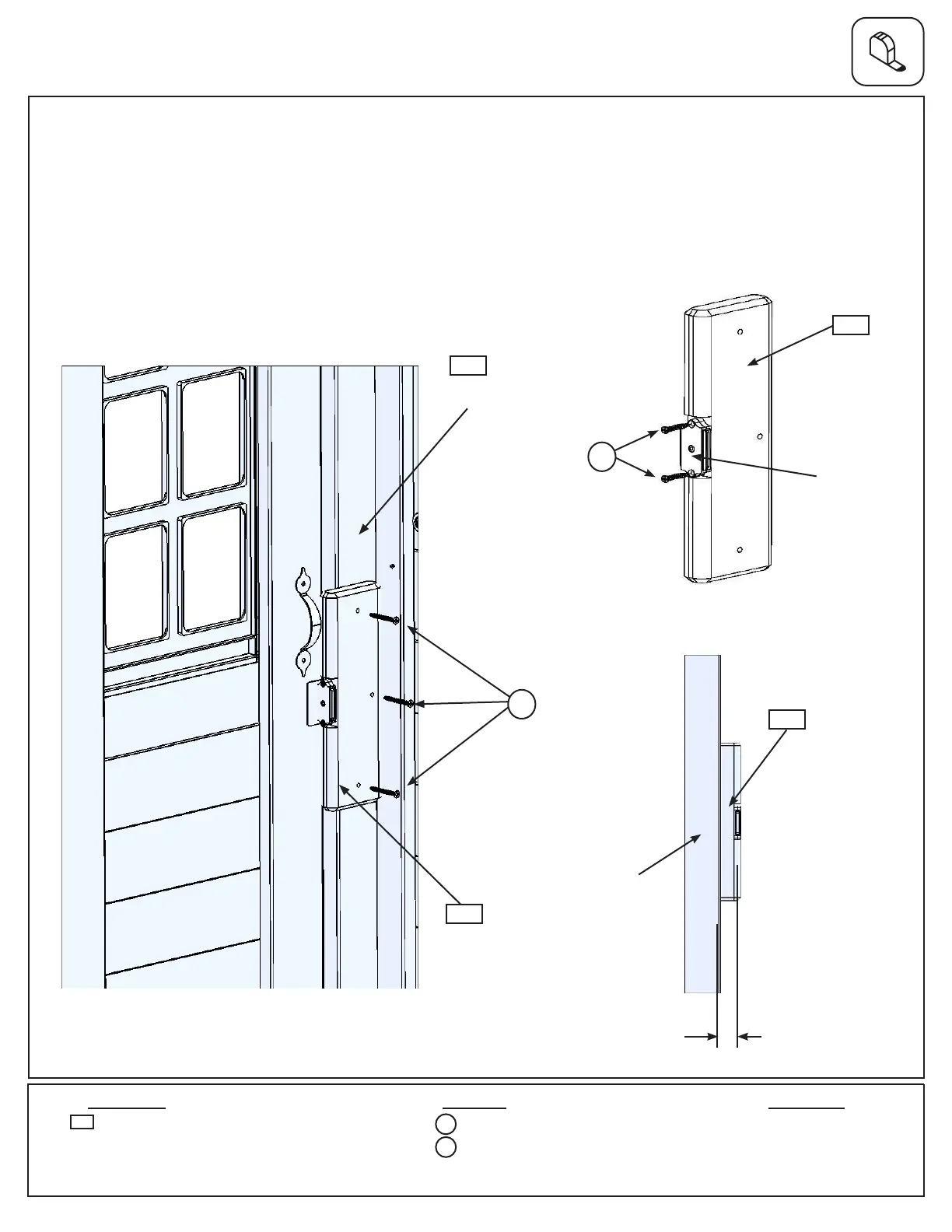

Step 19: Attach Door Stop
Hardware
Wood Parts
A: In the notched out opening of (2715) Door Stop attach the Magnetic Catch using 2 (S18) #6 x 1” Wood
Screws. (g. 19.1) Important: Use a hand held screw driver and DO NOT over tighten.
B: On the inside of the assembly, attach (2715) Door Stop to the panel with 3 (S11) #8 x 2” Wood Screws,
making sure (2715) Door Stop overhangs the panel or (2601) Lower Jamb by 1-1/4” and is in position to receive
the Catch Plate. (g. 19.2 and 19.3).
1 x Door Stop 5/4 x 3 x 10”
2715
2 x #6 x 1” Wood Screw
3 x #8 x 2” Wood Screw
S18
S11
Other Parts
1 x Magnetic Catch
2715
2715
1-1/4”
Magnetic Catch
S11
Fig. 19.1
Fig. 19.2
Panel
S18
Panel
2715
Fig. 19.3
Inside View
2601
or
