Hardware
4 x #6 x 5/8” Pan Screw
S13
Other Parts
1 x Chimney Wall Set
Fig. 26.2
Fig. 26.1
Tabs
Chimney
Wall
S13

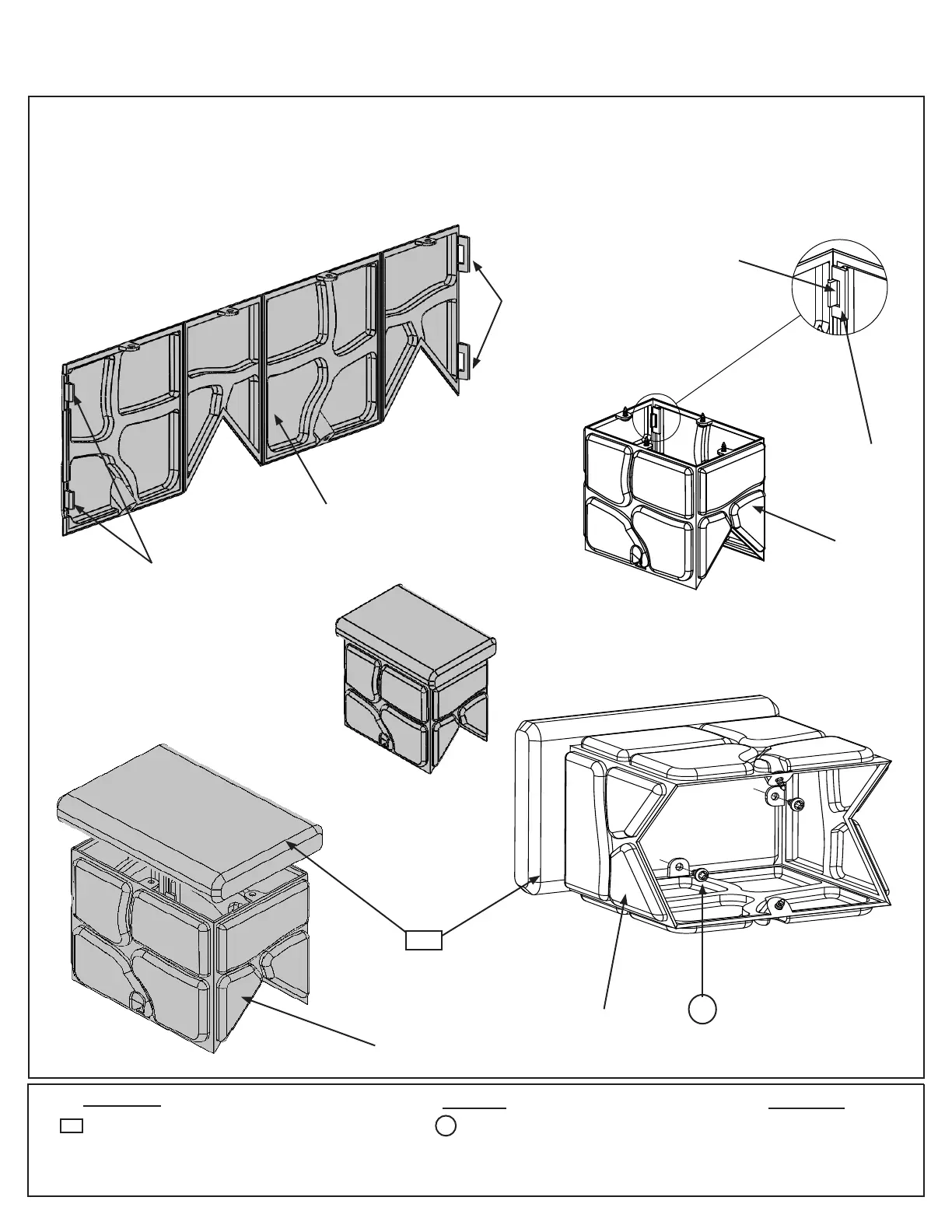

Step 26: Chimney Wall Assembly
Part 1
A: Bend the Chimney Wall to form a box and insert tabs into slots. (g. 26.1 and 26.2)
B: Place the (7567) Chimney Top on top of the assembly and attach with 4 (S13) #6 x 5/8” Pan Screws. (g.
26.3, 26.4 and 26.5)
Chimney
Wall
Chimney
Wall
Tabs
Slots
Slots
x 4
Fig. 26.3
Fig. 26.4
Fig. 26.5
Chimney
Wall
Wood Parts
1 x Chimney Top 15/16 x 4-1/4 x 6-1/4”
7567
7567
