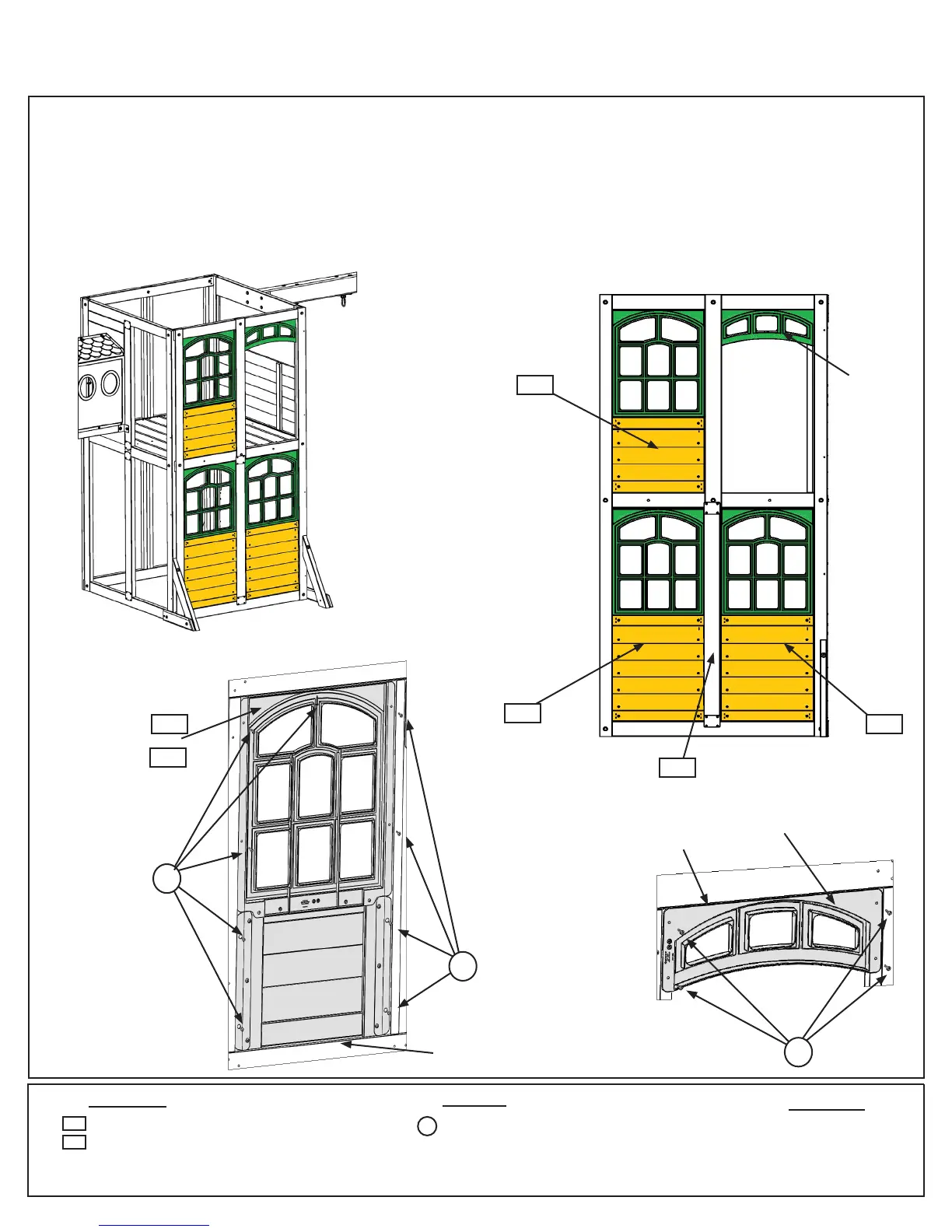

Step 20: Install Window and Wall Inserts
Part 5 - Small Fort Front Wall
H: In the lower openings of the Small Fort Front Wall install 2 (2649) Lower Window Inserts and in the upper
opening beside the Tunnel Side install 1 (2655) Upper Window Insert using 9 (S0) #8 x 7/8” Truss Screws per
insert. (g. 20.18, 20.19 and 20.20)
I: In the right upper opening of the Small Fort Front Wall install 1 MOD 3-Pane Transom with 4 (S0) #8 x 7/8” Truss
Screws. (g. 20.18, 20.19 and 20.21)
Fig. 20.18
Tunnel
Side Wall
Tight
S0
S0
Fig. 20.20
Inside View
31 x #8 x 7/8” Truss Screw
1 x Upper Window Insert 1.27 x 18.8 x 35.86”
2 x Lower Window Insert 1.27 x 18.8 x 41.91”
2655
Wood Parts
Hardware
2649
S0
2649
2655
and
Fig. 20.19
Outside View
2655
2649
Small Fort
Inside View
MOD 3-Pane
Transom
Tight
S0
Fig. 20.21
MOD 3-Pane
Transom
2649
Front Wall
2601
1 x MOD 3-Pane Transom
Other Parts
