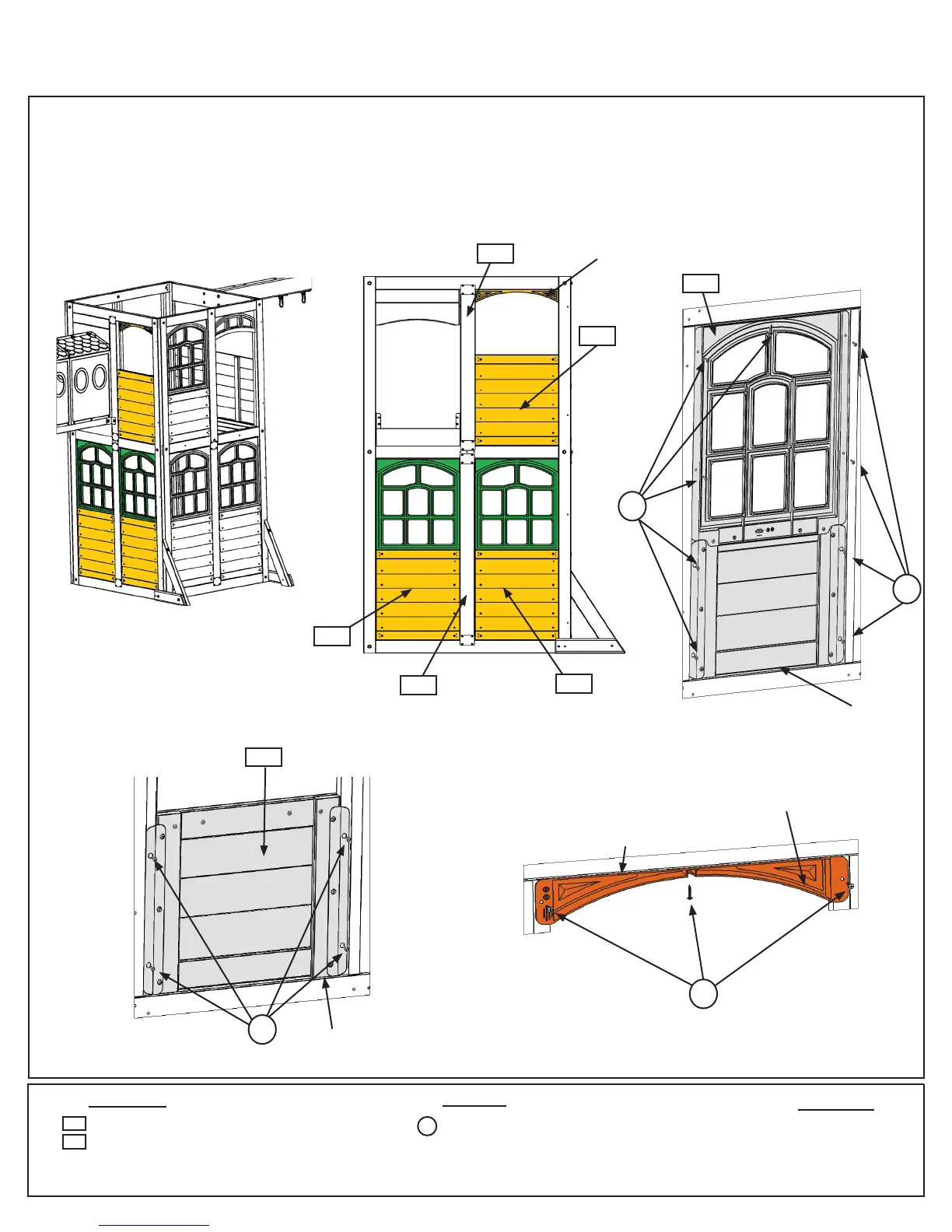

Step 20: Install Window and Wall Inserts
Part 6 - Small Fort Tunnel End Wall
J: In the lower openings of the Small Fort Tunnel End Wall install 2 (2649) Lower Window Inserts using 9 (S0) #8 x
7/8” Truss Screws per insert. (g. 20.22, 20.23 and 20.24)
K: In the upper opening of the Small Fort Tunnel End Wall beside the tunnel install 1 MOD Arch using 3 (S0) #8 x
7/8” Truss Screws and 1 (649A) Short Half Wall using 4 (S0) #8 x 7/8” Truss Screws. (g. 20.22, 20.23, 20.25 and
20.26)
Fig. 20.22
Tunnel End
Wall
Tight
S0
Fig. 20.24
Inside View
25 x #8 x 7/8” Truss Screw
2 x Lower Window Insert 1.27 x 18.8 x 41.91”
1 x Short Half Wall 1.27 x 18.8 x 20-15/16”
Wood Parts
Hardware
2649
S0
2649
Fig. 20.23
Outside View
649A
2649
Tunnel
Position
Small Fort
Fig. 20.26
Inside View
MOD Arch
Tight
S0
1 x MOD Arch
Other Parts
Tight
649A
S0
Inside View
Fig. 20.25
2649
MOD Arch
2649
2601
2602
S0
649A
