CCBU40 COMPACT CONTROLLER BOARD - PRODUCT AND WARRANTY INFORMATION Version 1.21
Figure VI-1: Example of rising and falling time measurement

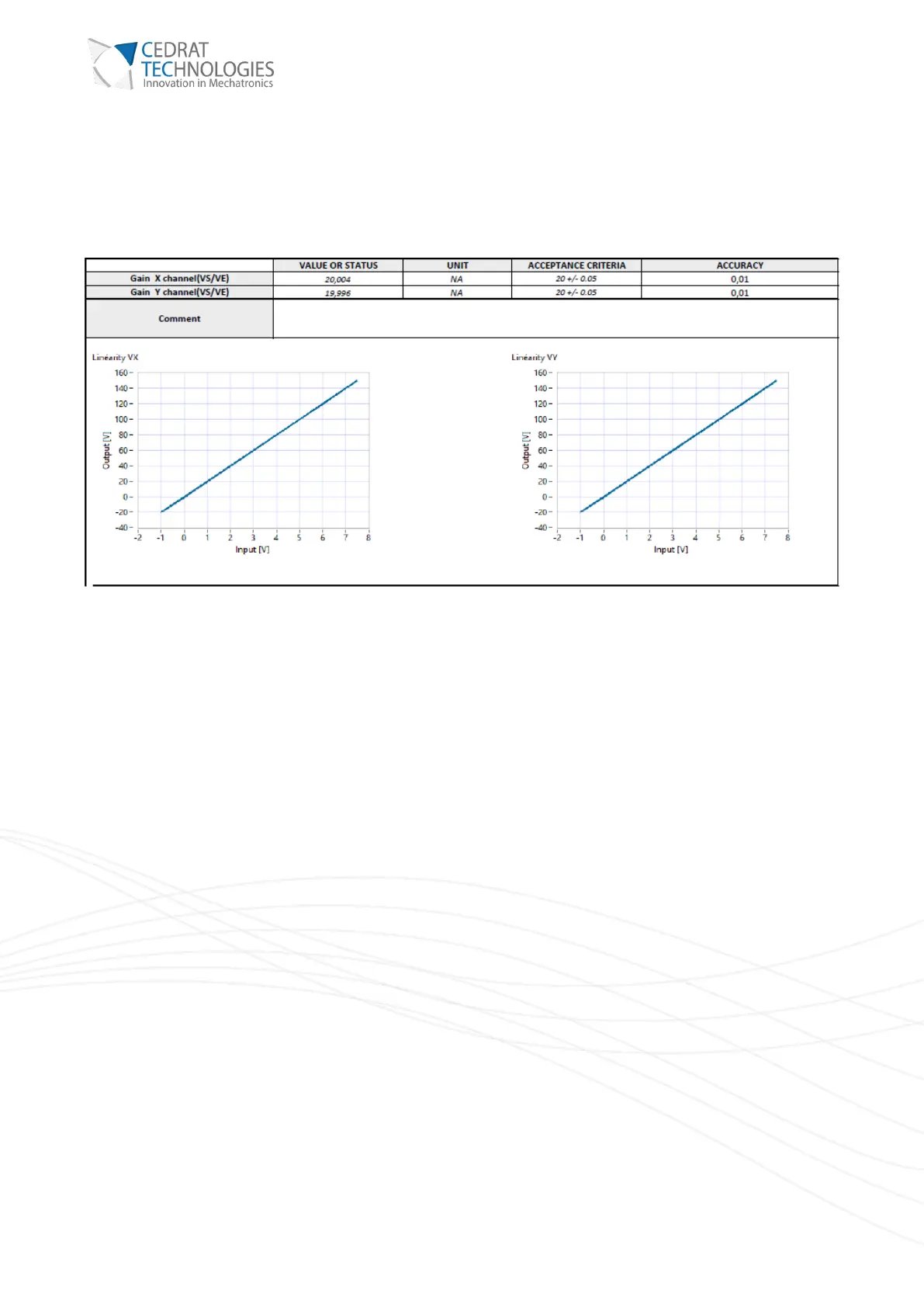

The second test (Linearity) compares in open loop the output voltage vs the input order. The amplifier gains are
calculated.
Figure VI-2: Example of linearity measurement
