10 APPENDIX A- Technical references

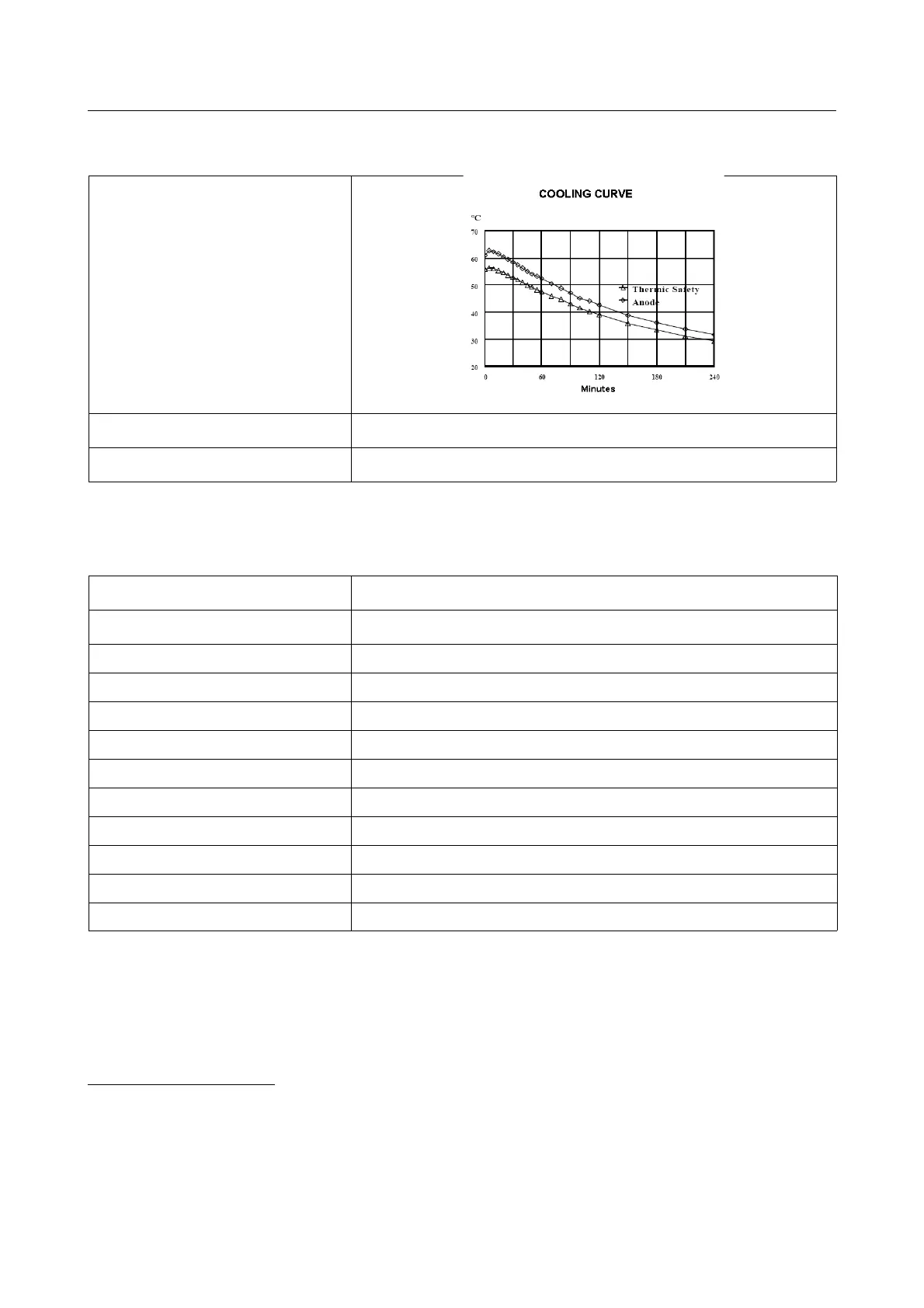

Cooling curve
Rotor HF1R
Startup 230Vac / 0.8s / 10A Running 60Vac / 2A
10.5.3 X-Ray source assembly
Model
HF1R
X-ray tube
IAE X22 0.3/0.6
Focus - detector distance
970 mm
Focus - skin distance minimum 150 mm
Total filtration 4.4 mm Al @ 70 kV
Cone beam maximum size 238 mm x 179 mm (detector area)
Reproducibility of the radiation output
8
Δ < 10%
Tube voltage accuracy
9
< 10%
Tube current accuracy
10
< 20%
Radiation linearity
11
< 20%
Emission time accuracy
12
< 10% + 1 ms
mAs accuracy
13
< 30%
8 According to IEC 60601-2-44:2009 par. 203.6.3.2
9 According to IEC 60601-2-7:1998 par. 50.104.1
10 According to IEC 60601-2-7:1998 par. 50.104.2
11 According to IEC 60601-2-7:1998 par. 50.105.4
12 According to IEC 60601-2-7:1998 par. 50.104.3
13 According to IEC 60601-2-7:1998 par. 50.104.3
