Celestron 93664 - Polar Aligning the Wedge; Altitude and Azimuth Adjustments; Tips for Use; Latitude Adjustment Knob Tip

Use the latitude adjustment knob
to make final adjustments to your
polar alignment in altitude. Use
the azimuth adjustment knobs to
make adjustments to your polar
alignment in azimuth. In order to
move your telescope smoothly in
azimuth, slightly loosen the three
azimuth plate screws before using
the azimuth adjustment knobs
(see Figure 6). Do not loosen
the actual mounting screws that
attach the wedge to the tripod.
• Ifthelatitudeadjustment
knob is difficult to turn, slightly
loosen the bolts holding the
orange latitude pivot bar.
See Figure 5. This will allow the
bar the rotate more easily as
the latitude angle changes.
• Thewedgehastwopositions
to attach the latitude pivot bar.
The forward position can be
used to give more range
of motion when used at
lower latitudes.
polAr Aligning the Wedge
tips For use

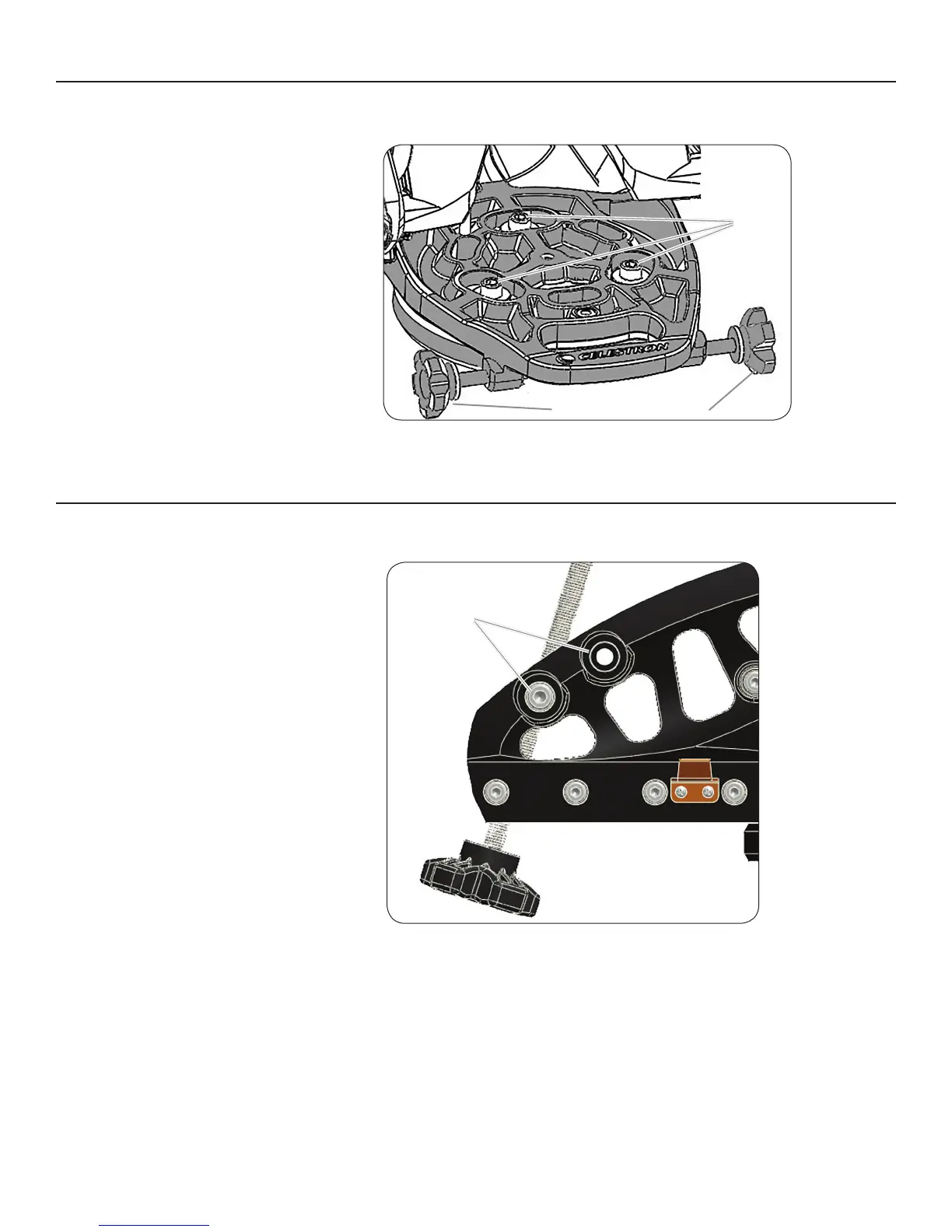

Azimuth Adjustment Knobs
Azimuth
Plate
Screws
Figure 6
Figure 7
Latitude Pivot
Bar Positions
4
